Description

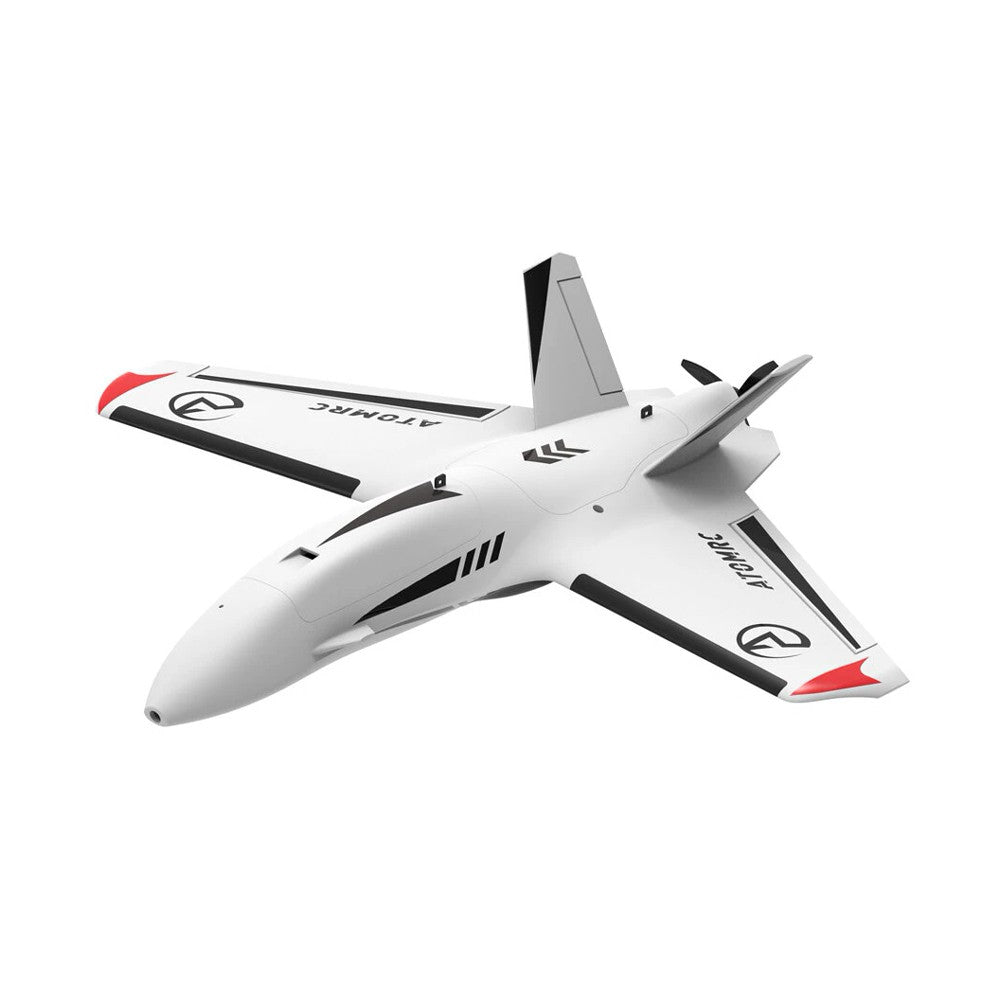

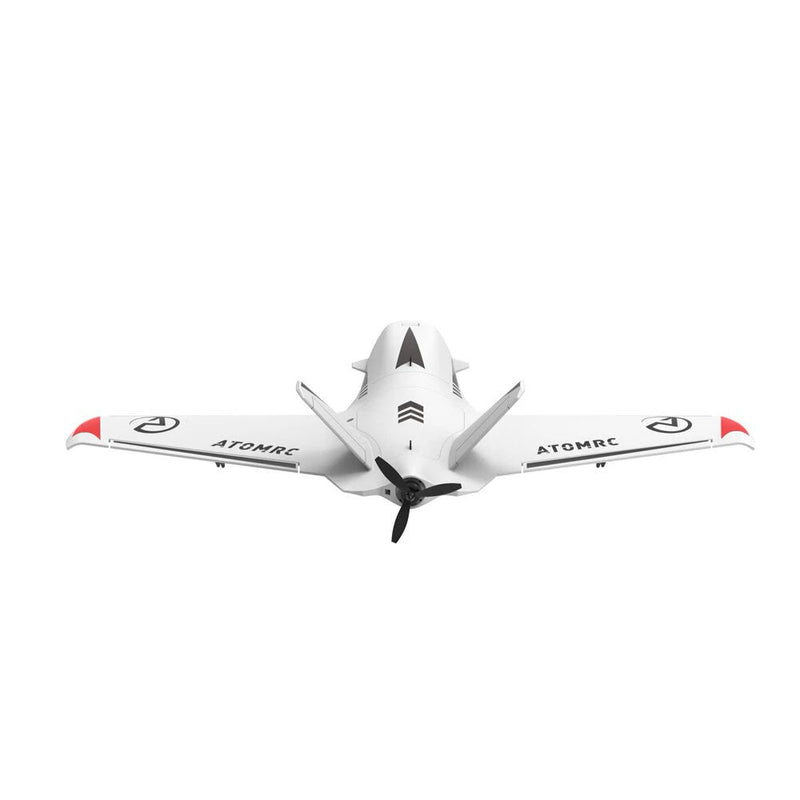

The ATOMRC Dolphin 845mm Wingspan FPV RC Airplane is an EPP molded wing, embedded with carbon fiber tube, durable and lightweight. Features a detachable head and wing, a rubber band and magnet (to lock your GoPro), air inlet and outlet for FPV gear cooling, pre-installed wing, fuselage protector, and other cool features that make thing wing a must-have!
Features
- EPP molded wing, embedded with carbon fiber tube, durable and lightweight.
- Carbon fiber tube enhanced elevens, more rigid elevens during the high-speed flight.
- Detachable wing, portable to transport.
- Detachable head, two head for choice, users can choose to fly with GoPro or without GoPro.
- Rubber band and magnet to lock the GoPro, easy to install the GoPro.
- V tail design makes the wing more stable than a normal fly wing.
- Pre-installed wing and fuselage protector, more durable during landing.
- Compatible with GoPro hero 5~7.
- Movable battery slot for better “CG” adjustment.
- Pre-installed camera cable and antenna for FPV gear.
- Air inlet and outlet for FPV gear cooling.
Specifications
- Brand Name: ATOMRC
- Item Name: Dolphin
- Wingspan: 845mm(33.2")
- Length: 710mm(28")
- Motor: 2306 1700KV
- ESC: 30A with 5V/3A BEC
- Servo: 2pcs 9g servo
- Propeller recommend: 5~6 inch
- Battery recommend : 4S 1300-2200mah
- Dimension: 660*225*135mm
FPV PNP Version
- 1 x Prebuild Dolphin Kit
- 1 x Ball Push/Push Rod
- 1 X Sticker
- 1 x 2306 Motor
- 1 x ATOMRC Exceed 30A BLS 5V/3A BEC
- 1 x ATOMRC Exceed 9g Servo*2
- 1 x Battery Strap
- 1 x Camera Cable
- 1 x SMA to UFL VTX cable
- 1 x Screws
- 1 x Foxeer Razer Nano 1200TVL 14mm Camera
- 1 x ATOMRC Exceed 500mW Mini VTX
- 1 x 5.8G Antenna
- Requires: Radio, Receiver, Battery and Charger
