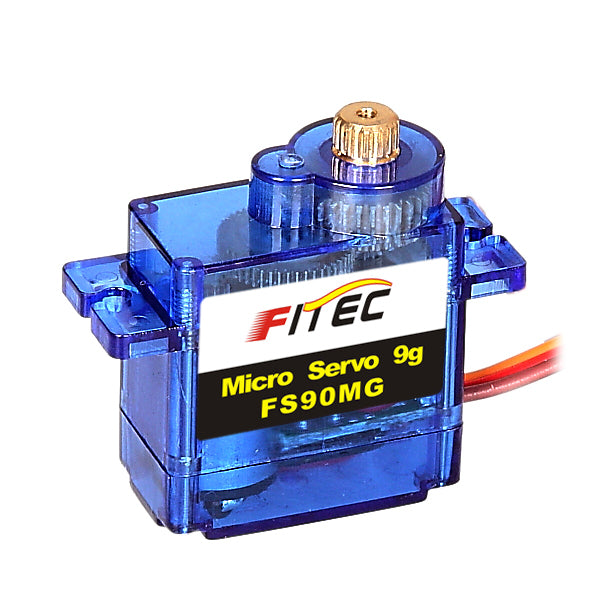

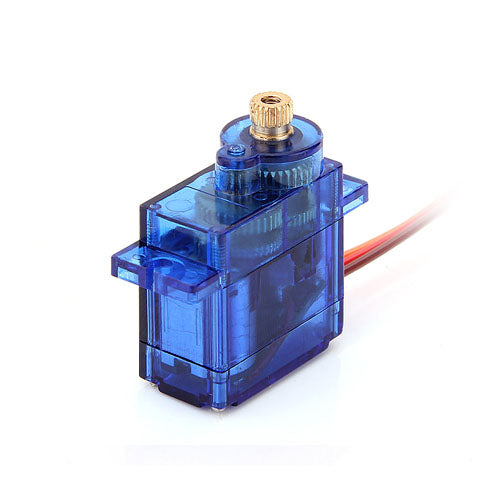

FEETECH FS90MG 9G MINI METAL GEAR SERVO

FS90MG

  • $11.95
  • Save $3.05

Add to Wishlist

1.9g servo metal gear
2.Great choice for RC aircraft
3.Includes Accesories

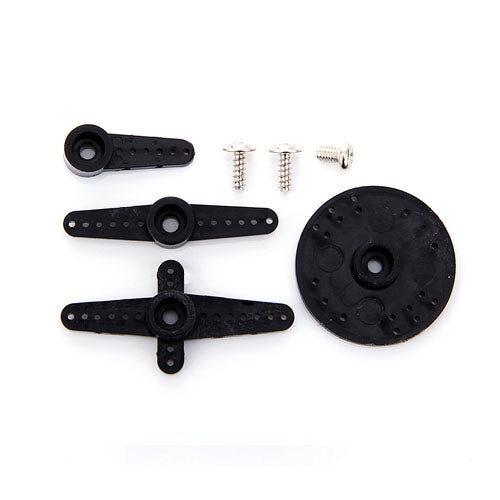

This servo is great for scanning type sensors, tiny robots, and more! Each servo comes with a variety of horns. The metal gears give this servo even more power and durability!

These servos use a standard PWM signal to control them. The Arduino does a great job of controlling PWM Servos, making it ideal for a variety of robotic projects. But sometimes powering these servos can be problematic. Powering servos from the Arduino's 5v regulator leads to underpowered servos, limited by both voltage and current. With other sensor systems, connecting a servo to an external power supply requires multiple cables or boards, defeating the purpose of a sensor shield.

Specifications:

  • Dimensions:23.2 × 12.5 × 22 mm
  • Weight:14 g
  • Operating Speed :0.12sec/60degree (4.8V)0.10sec/60degree (6V)
  • Small Torque: 1.5kg.cm/20.87oz.in(4.8V)1.8kg.cm/25.04oz.in(6V)
  • Operating Voltage :4.8V~6V
  • Control System :Analog
  • Direction :CCW
  • Operating Angle :120 degrees
  • Required Pulse :900us-2100us
  • Bearing Type :None
  • Gear Type :Metal
  • Motor Type :Metal
  • Connector Wire Length :20 cm
