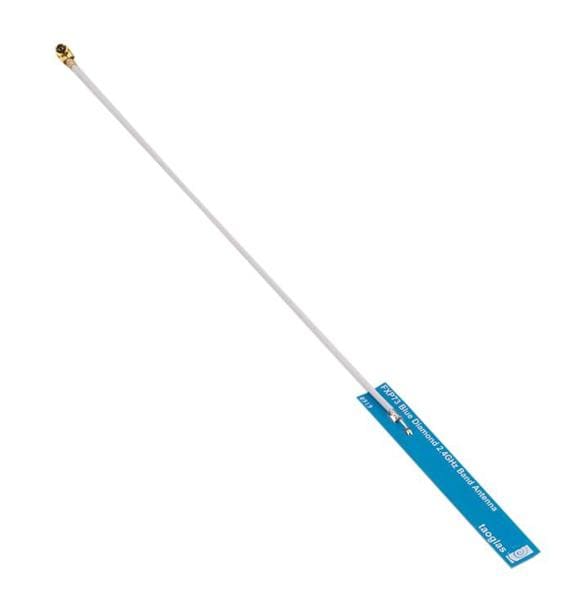

TAOGLAS FXP73 BLUE DIAMOND 2.4GHZ FLEXIBLE PCB ANTENNA FOR IRC GHOST

TaoglasSKU: TAGL01

Price:
Sale price$7.95

Shipping calculated at checkout

Stock:
In stock (2 units), ready to be shipped

Description

An antenna that was popular with testers during the development of Ghost is the TaoGlas FXP73. A tiny, lightweight self-adhesive antenna that integrates nicely into 3d printed ‘flip sticks’, or fins on mini quads. Also superb for fixed-wing models, where it can be simply stuck onto the wings made of foam or balsa.

Please note: These are not suitable for the Zepto as it uses a different connector.


SPECIFICATIONS:

  • Manufacturer: Taoglas
  • Product Category: Antennas
  • RoHS:   Details
  • Maximum Frequency: 2.4 GHz
  • Product: PCB Antennas
  • Product Type: 2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
  • Application: Multiband
  • Gain: 2.5 dBi
  • Impedance: 50 Ohms
  • Power Rating: 5 W
  • Number of Bands: 1 Band
  • Termination Style: Adhesive
  • Length: 47 mm
  • Width: 7 mm
  • Weight 1g
  • Height: 0.1 mm
  • Antenna Connector Type: U.FL Female
  • Series: Blue Diamond
  • Frequency: 2.4 GHz
  • Technology: Multiband
  • Brand: Taoglas
