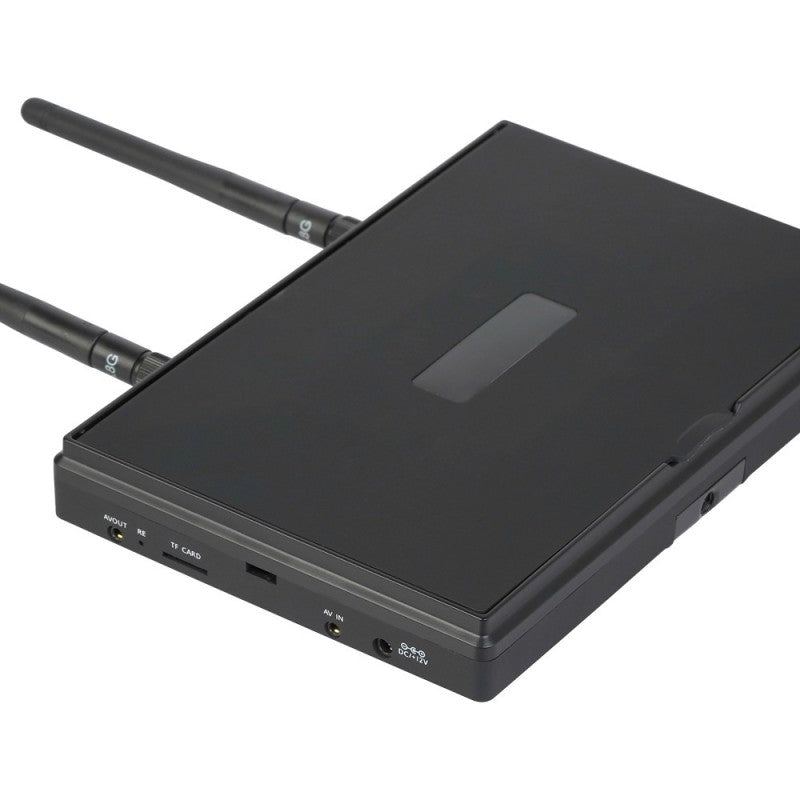

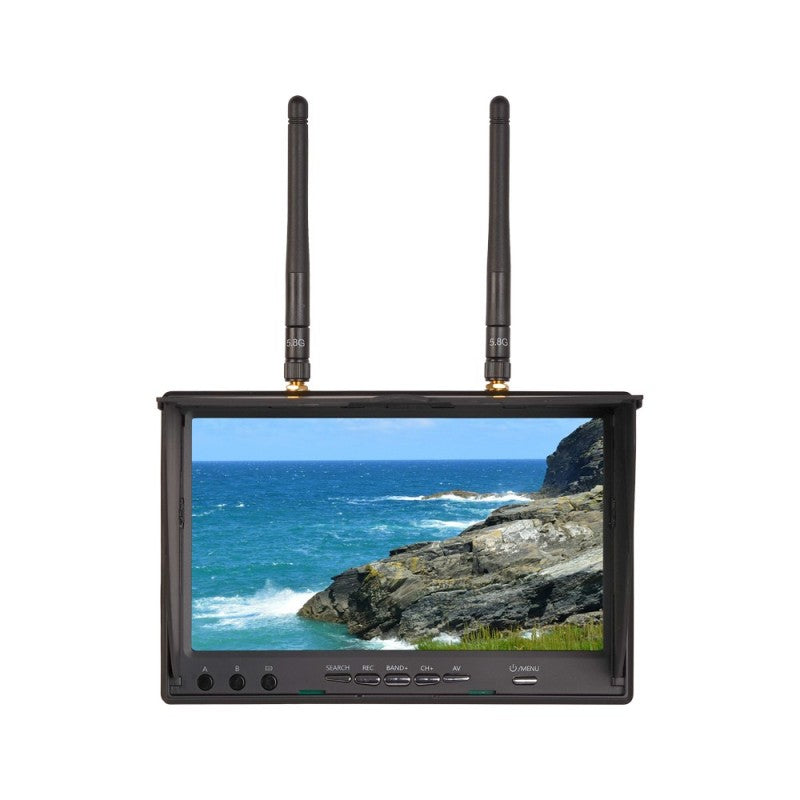

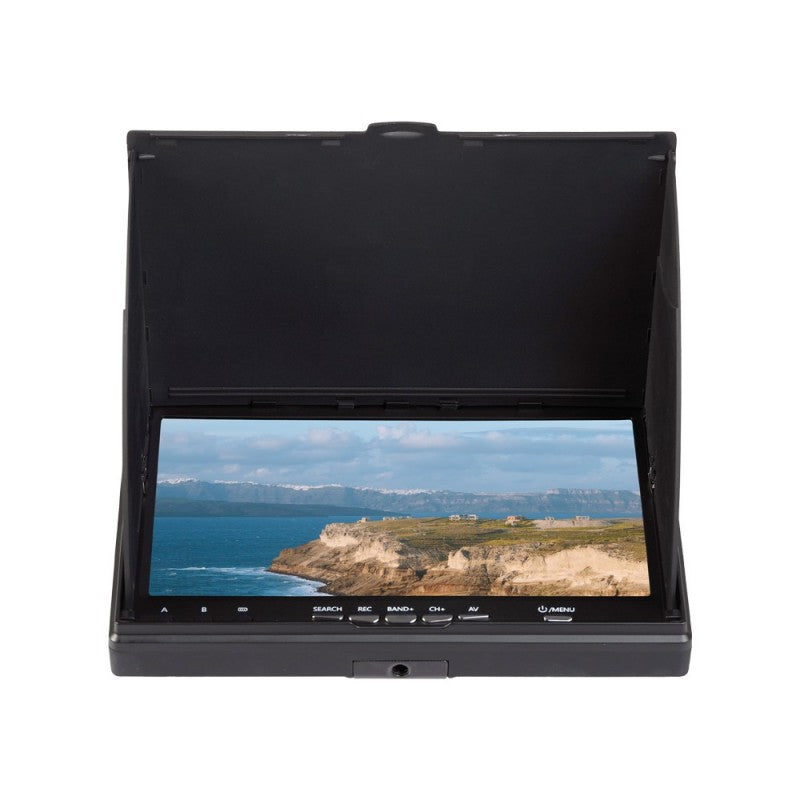

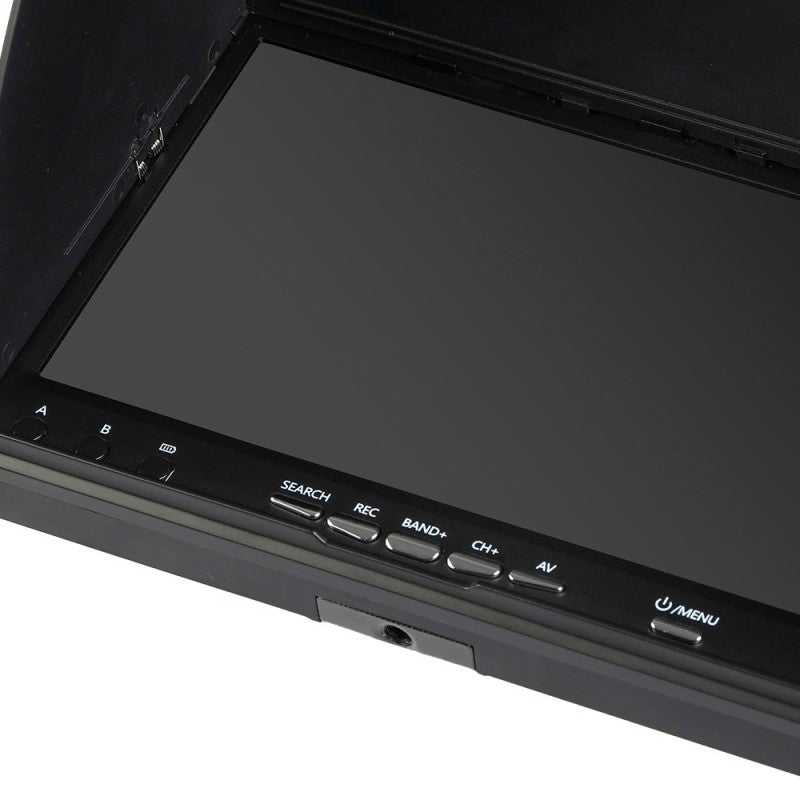

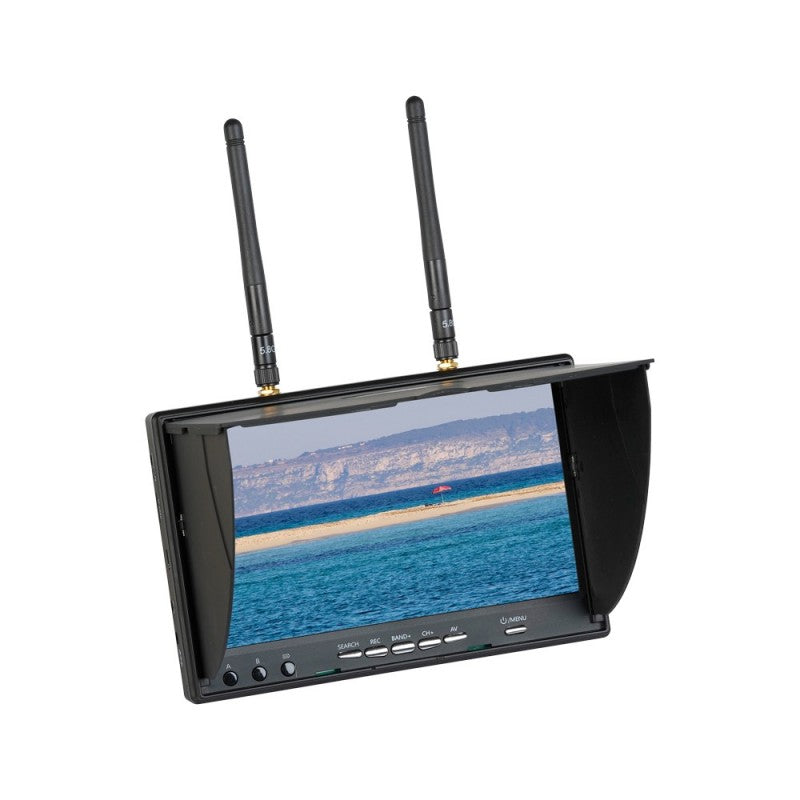

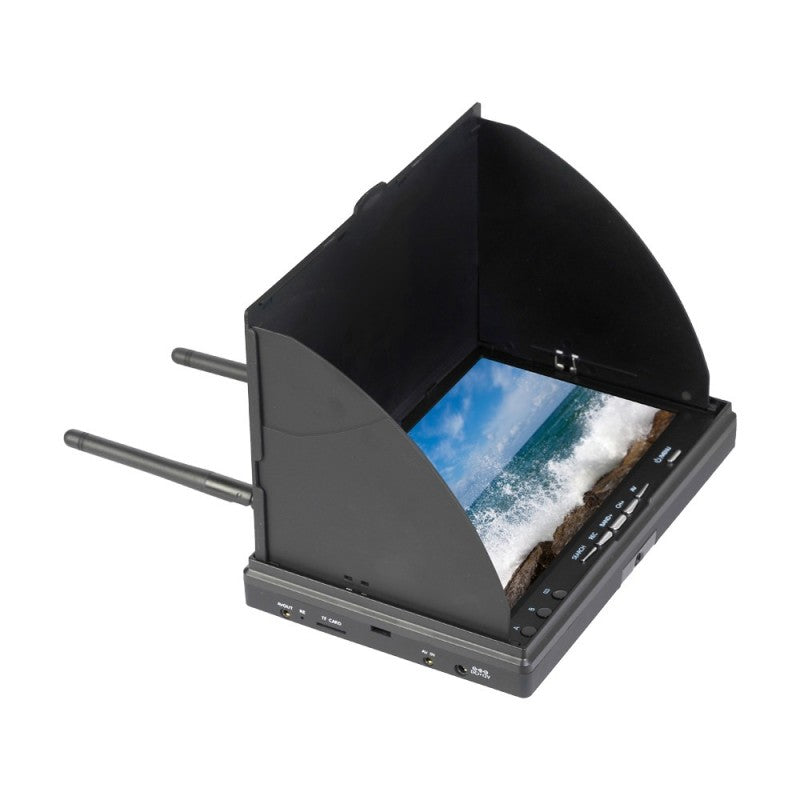

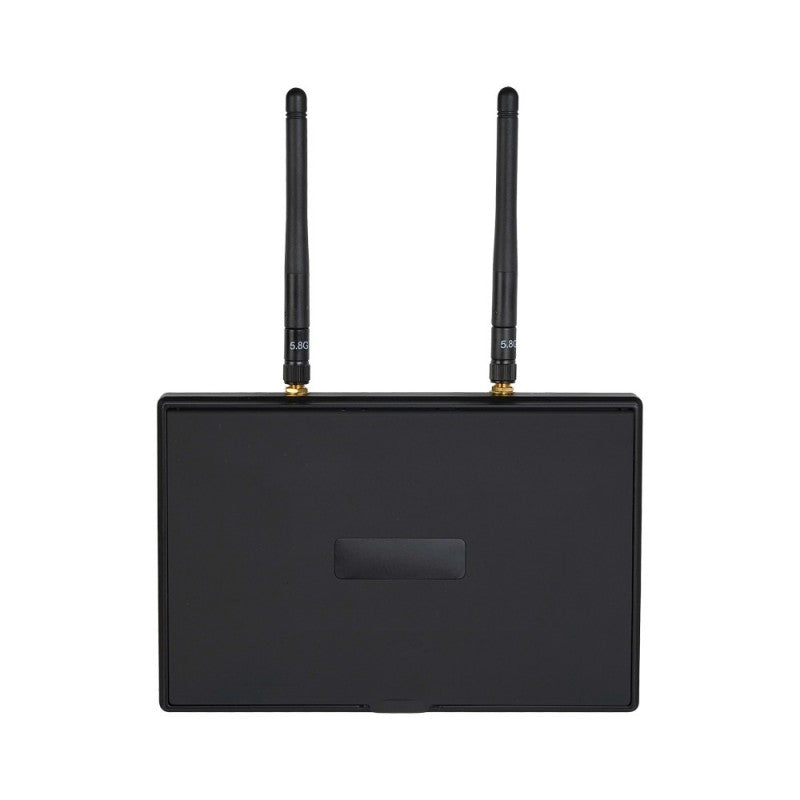

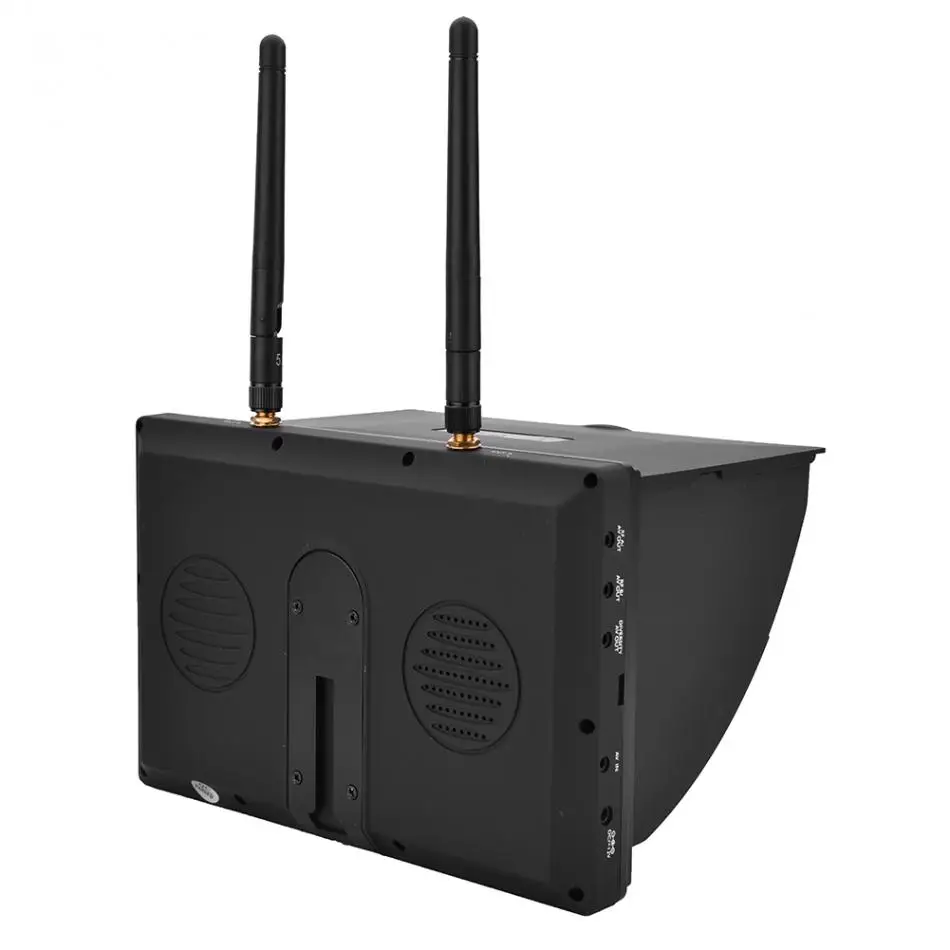

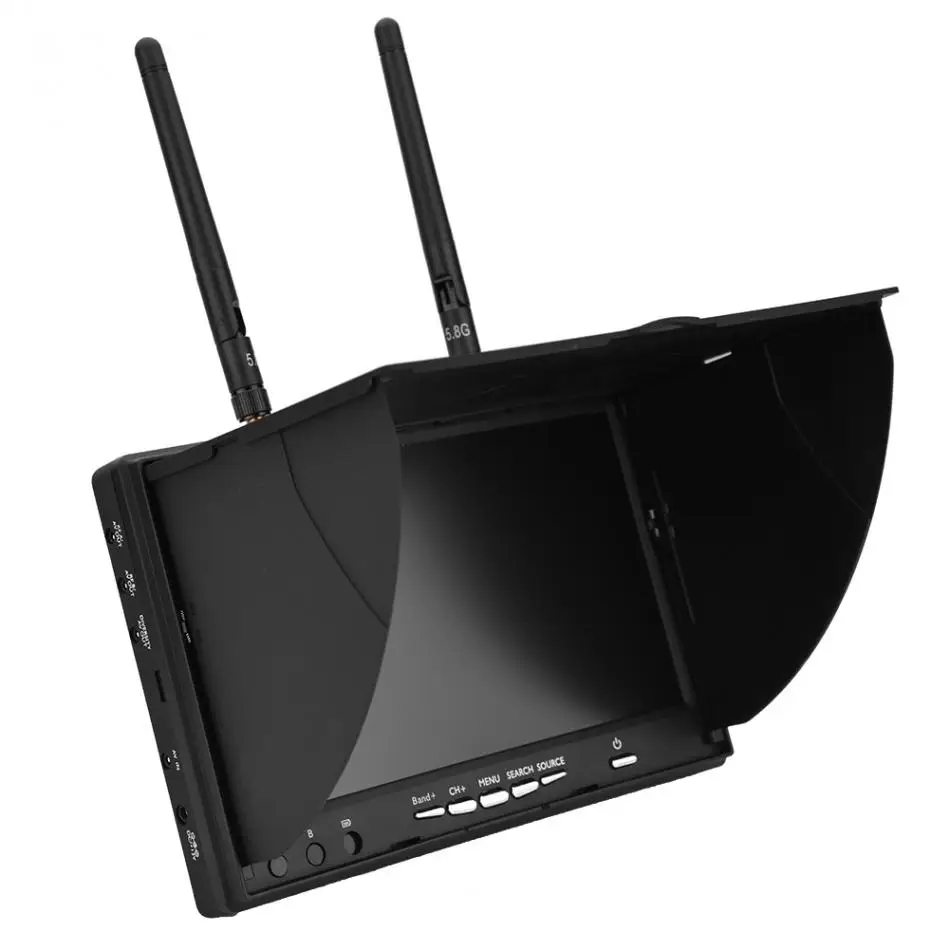

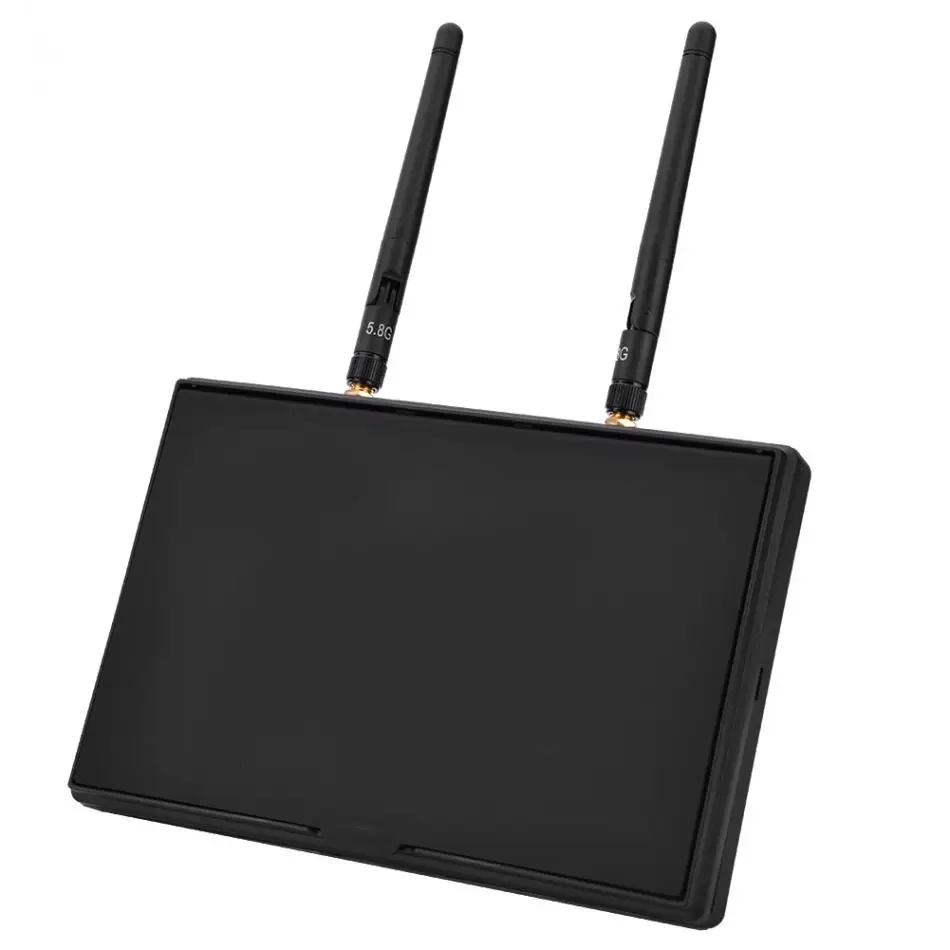

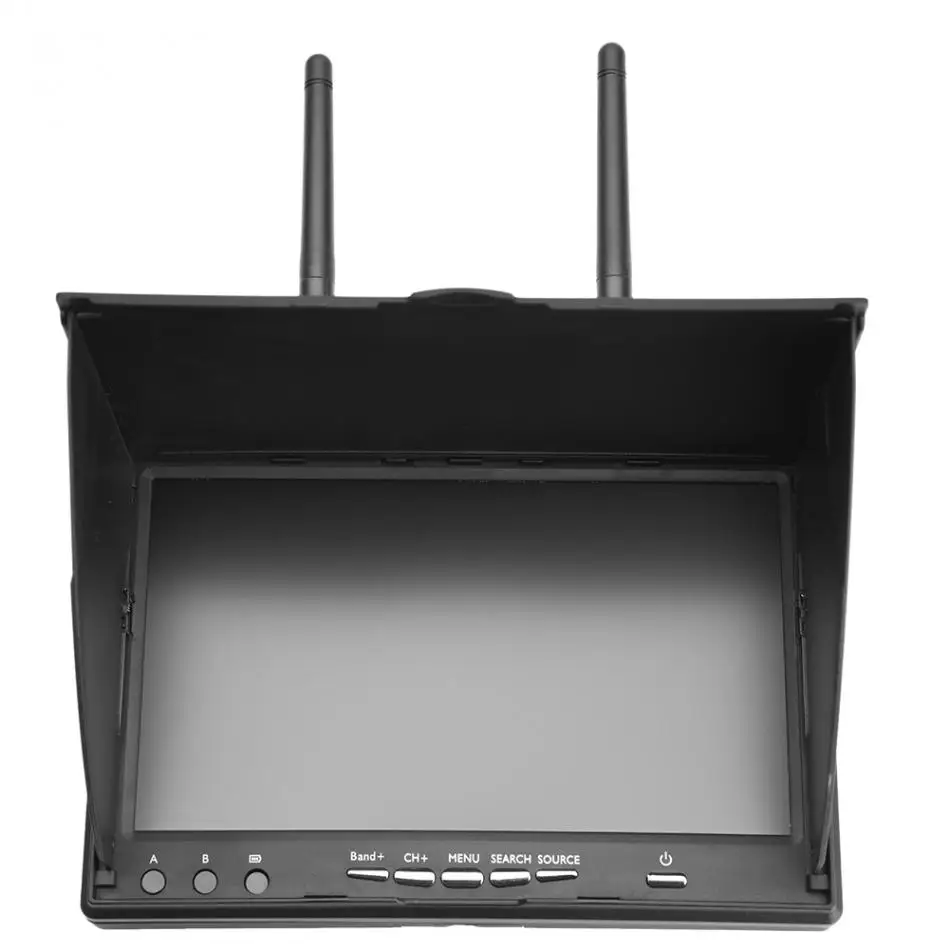

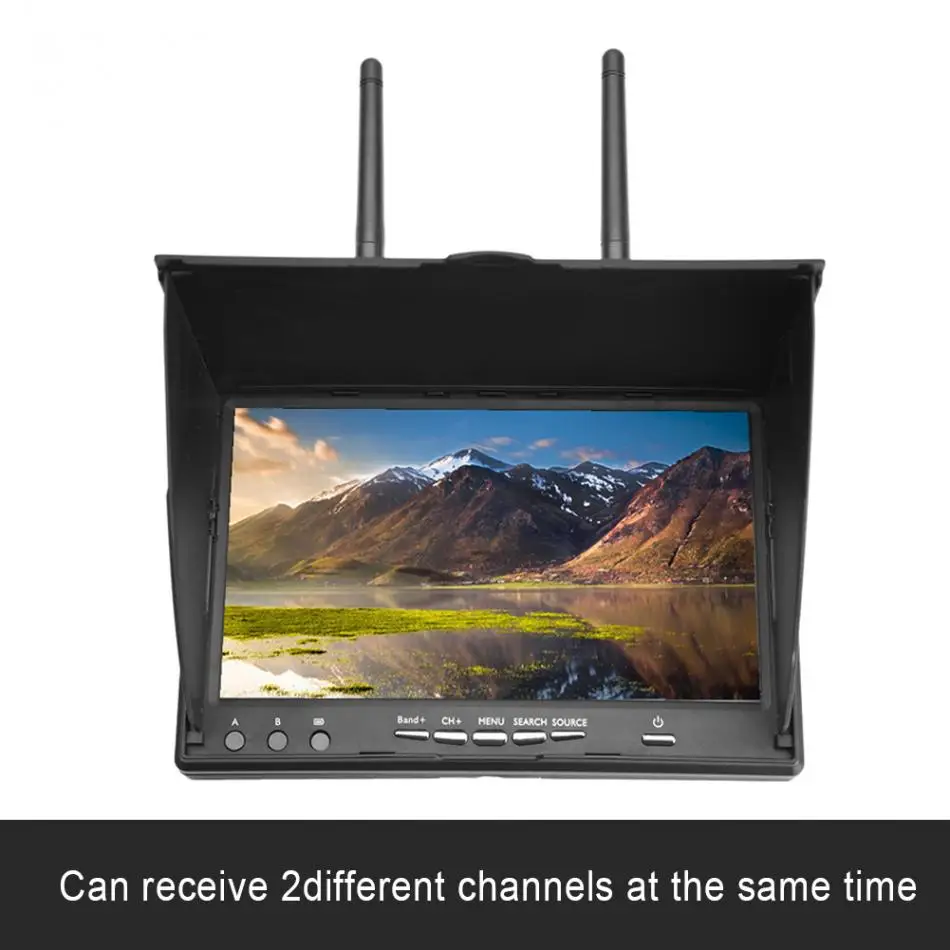

7" LCD5802D Monitor DVR 5.8G 40CH Built in Receiver

Name: 7" LCD5802D Monitor DVR 5.8G 40CH Built in Receiver
Brand: Foxeer
SKU: MR1705
Price: 149.0 AUD
Availability: OutOfStock

FoxeerSKU: MR1705

Specifications

Model Foxeer LCD5802D 7" Monitor
Resolution 800*480
Brightness 600cd/m2
View Angle 140/120 degree (Horizontal/Vertical)

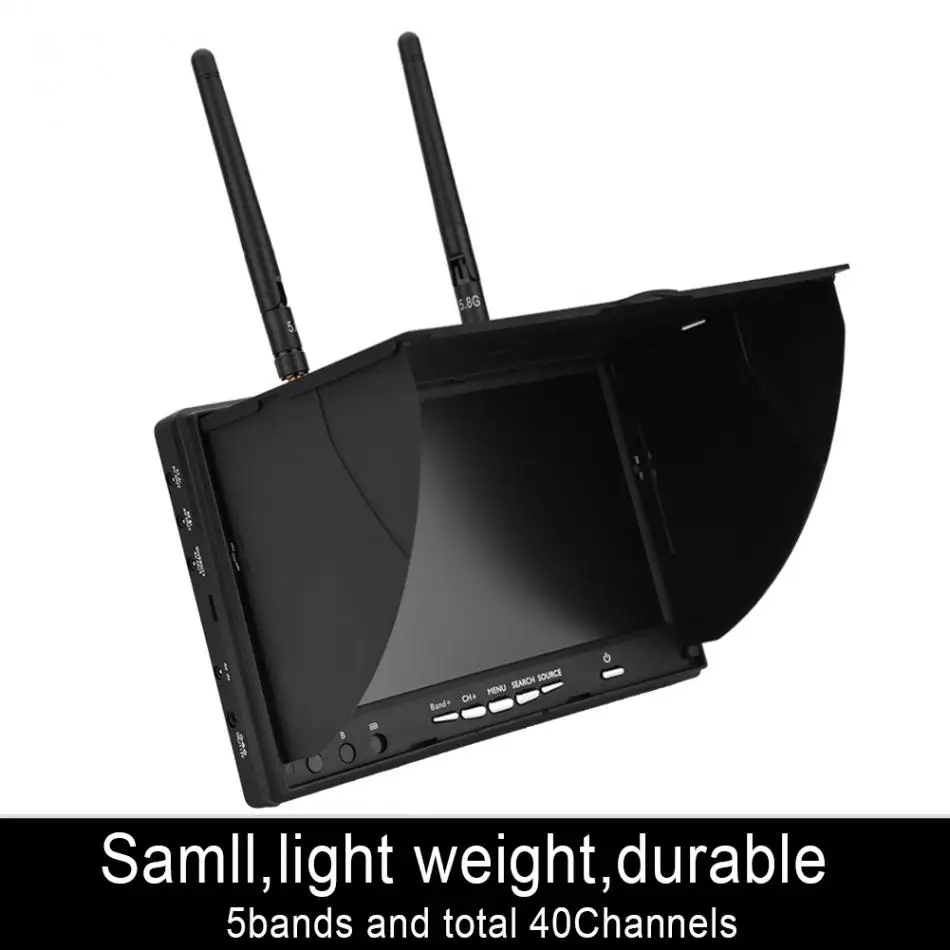

Channel 40CH
Frequency 5.8G
Battery 2000mAH/7.4V
Sensitivity -90dBm

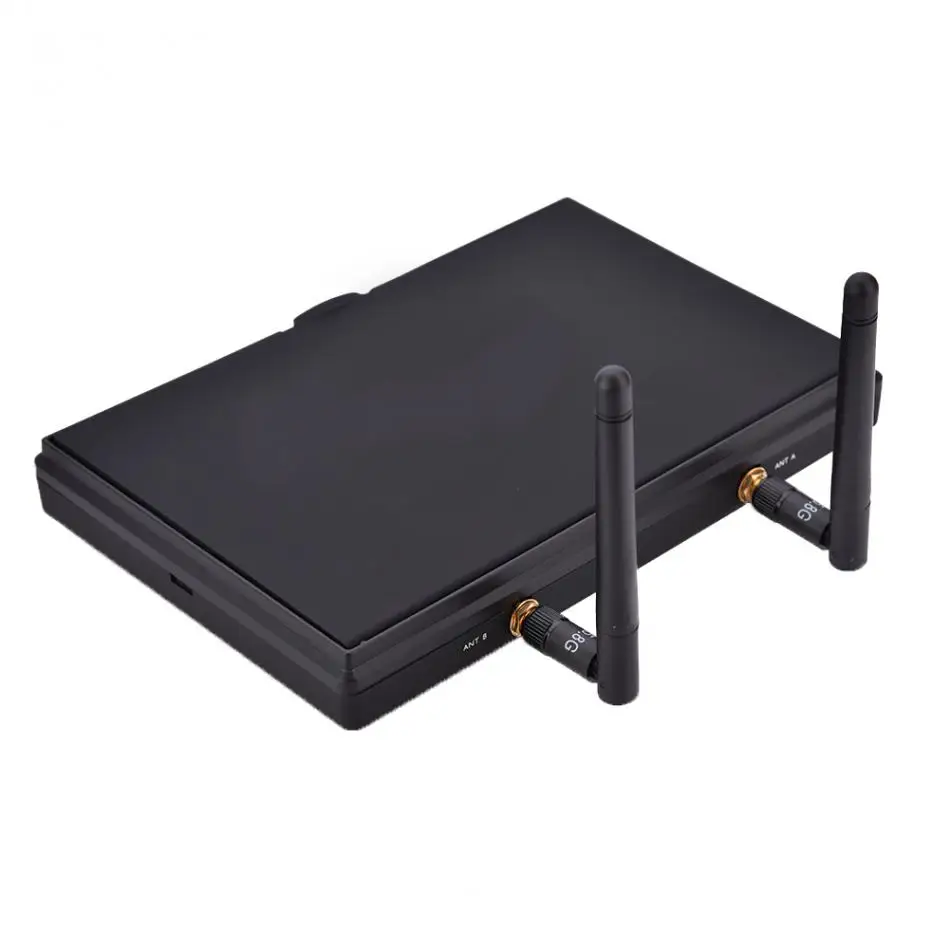

Antenna Type RPSMA male
Working Voltage DC 7~16V
Power Consumption Max 650mA @ 12V
Battery charging current 850mA @12V Max
Working temperature:? -10℃ ~ +65 ℃

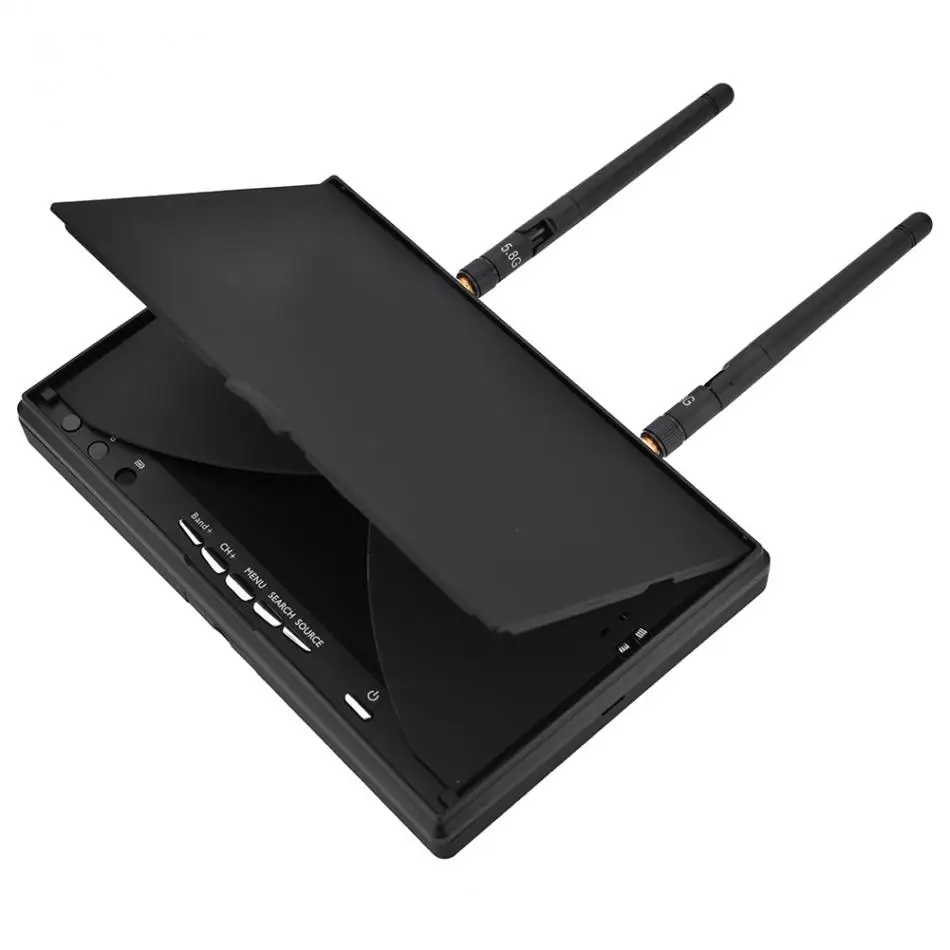

Size: 180mm x 120mm x 50mm(Note:Sunshield height:28mm)

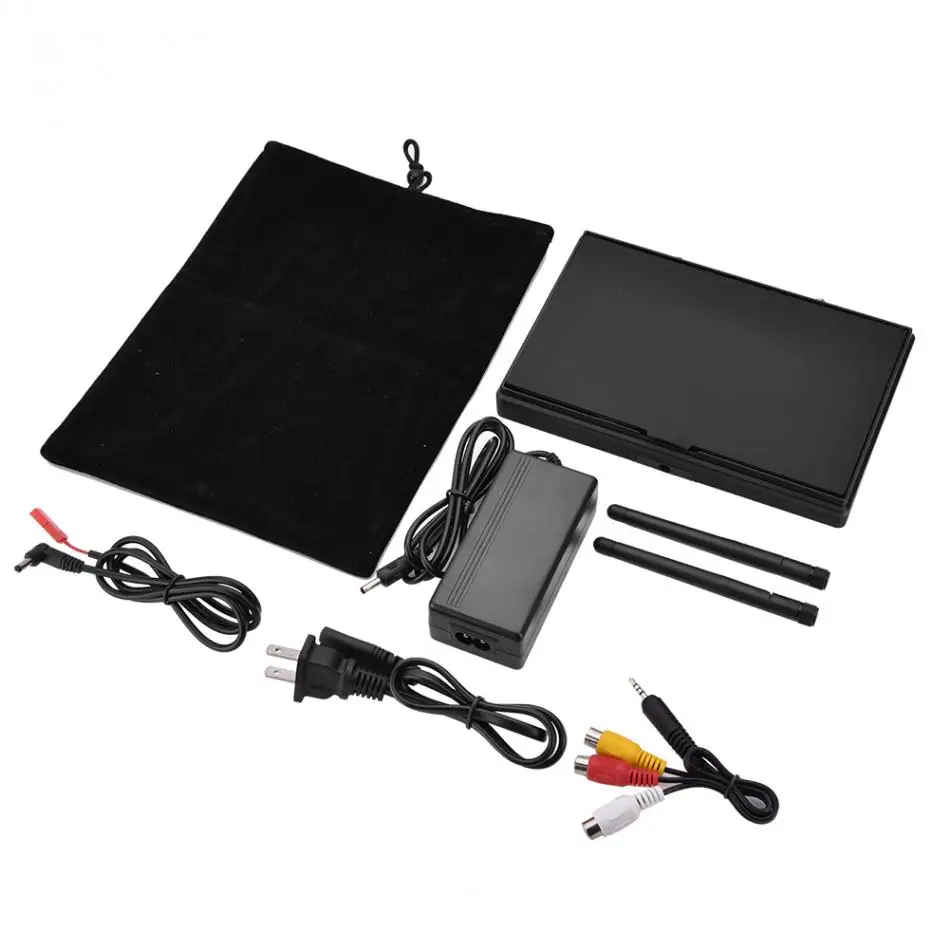

Package Includes 1*Monitor, 2*5.8G Antenna, 2*AV cable, 1*Charger

What our community is saying

Just a battery but customer service!

12/10...only minor purchase, still got superb customer service.

~Mario A

Happy Customer

I have purchased batteries from Next FPV in the past and the service is excellent. Thank you and keep up the good work.

~Gus F

Excellent Service & Great Product!!

Great service from Next FPV... Fast Postage & great communication... Very Pro Seller here... Highly Recommended... 🙂

~Craig M

Amazing service

The team at Nextfpv are actually next level. Always receive my orders within days. Thanks again - RADAR

~Radar K

Love the super fast shipping

This is not a product review as i have not installed yet. Its just a review of excellent customer service and fastest shipping. I ordered my speedybee stake and matek flight controller on Thursday morning and i received it the next day morning. I thought this weekend is no fly for me but i was wrong. The speedybee and matek fc was packed nice and cozy. The product looks excellent. Cant wait to install it and get high again. Thanks

~Hamid N

SUPER AMAZED

I haven't had such a great experience that comes close to the great experience I had with these guys - ordered the battery then the next day it arrived - WHAT???? I couldn't believe it and it was an awesome surprise - thank you so much. Regards - Motion Mad Media

~Carlos R

NextFPV killing it again!

Awesome camera & awesome service. Made it to me on the mid-north coast of NSW within 5 working days on standard postal delivery AND all inane noobulant questions answered promptly & without hesitation NOR ridicule- a Phar cry Phrom another retailer closer to home that I could mention! Thank you NextFPV for doing business as it should be done- upfront & honest.

~Lee K

Recover password

Create my account

7" LCD5802D Monitor DVR 5.8G 40CH Built in Receiver

Description

Specifications

You may also like

Recently viewed

What our community is saying

Band	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
Band A	5865	5845	5825	5805	5785	5765	5745	5725
Band B	5733	5752	5771	5790	5809	5828	5847	5866
Band E	5705	5685	5665	5645	5885	5905	5925	5945
Band F	5740	5760	5780	5800	5820	5840	5860	5880
Band R	5658	5695	5732	5769	5806	5843	5880	5917
