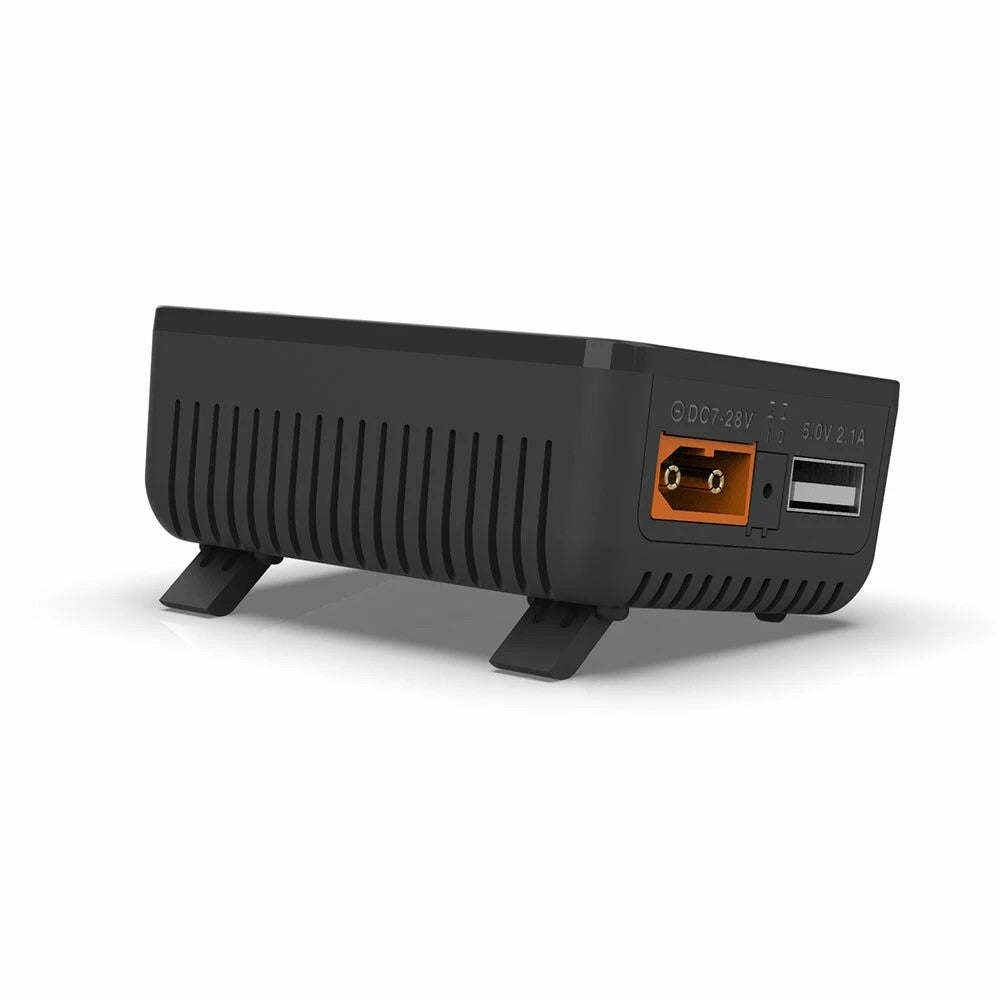

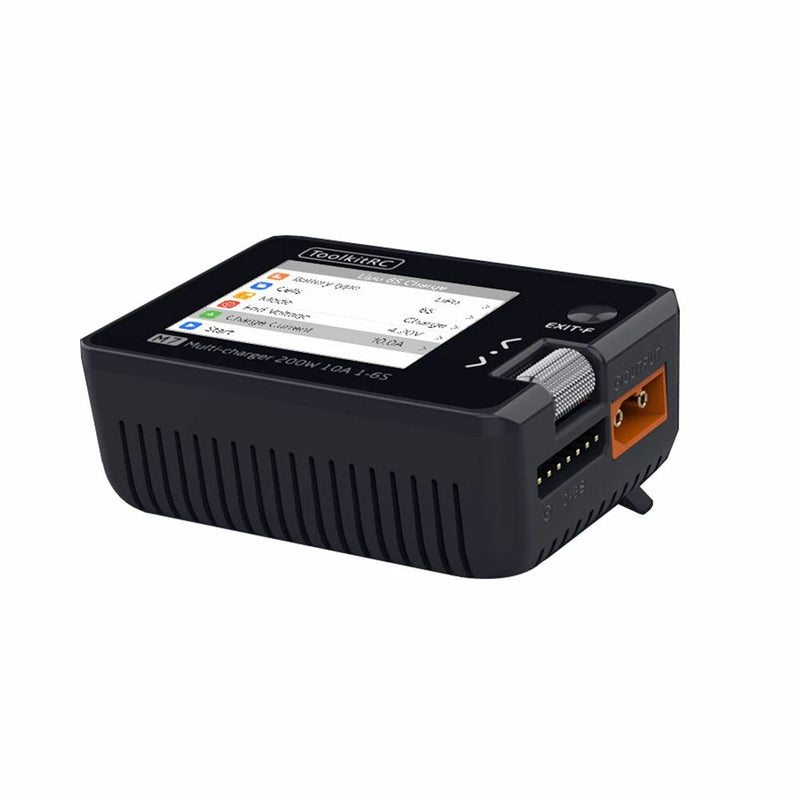

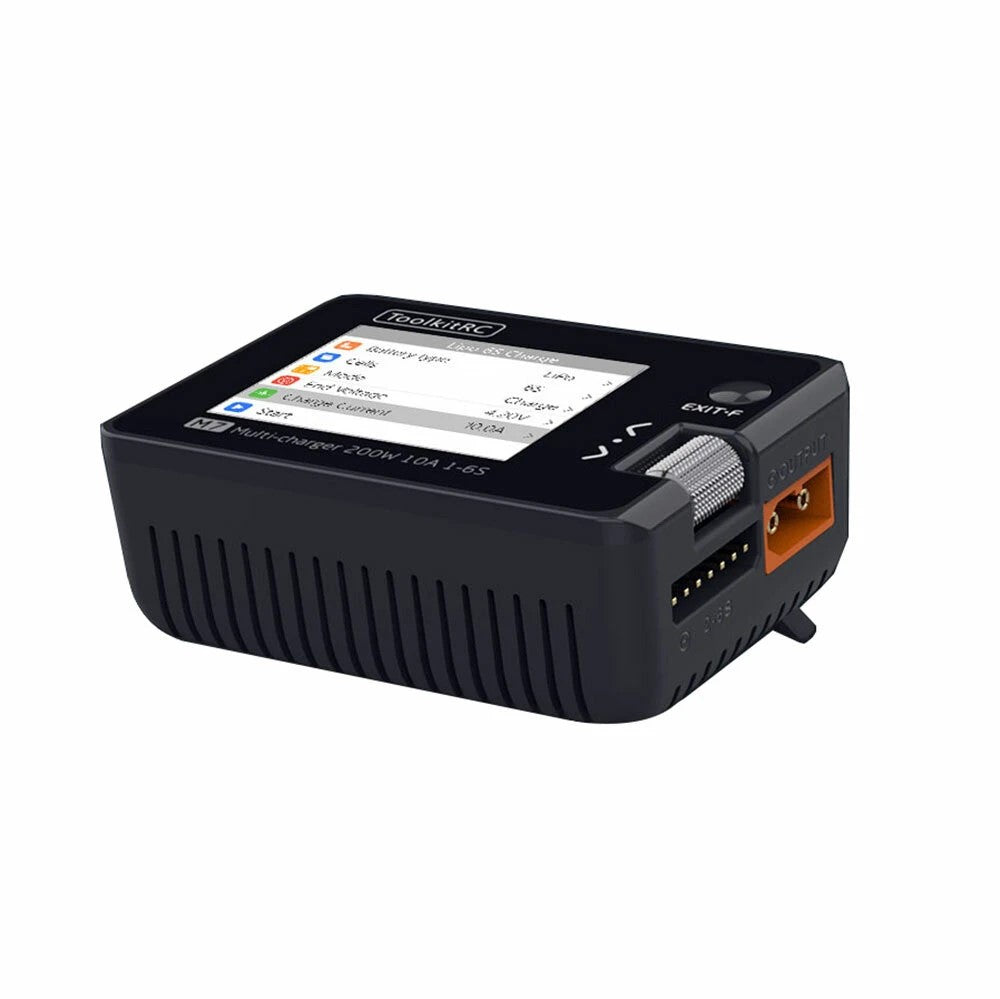

TOOLKITRC M7 200W 10A MULTIFUNCTION BALANCE CHARGER

TOOLKITRCSKU: HP110-0014

Price:
Sale price$64.95

Shipping calculated at checkout

Stock:
Contact Us

Description



Specifications:

Charger.
  • Input voltage: 7.0-28.0V @MAX 12A
  • Type of battery: Lipo LiHV LiFe Lion@2-6S NiMh @1-16S Pb @1-10S
  • Balance current: 400mA @2-6S
  • Charger power: 200W @MAX 10A
  • Discharge power: 200W @MAX 10A Recycle mode. 10W@3A Normal mode
  • USB: 2.1A @5.0V or Upgrade

Measurer.
  • PWM: 880-2200us @20-400Hz
  • PPM: 880-2200us*8CH @20-50Hz
  • SBUS: 880-2200us*16CH @20-100Hz
  • Voltage: 1.0-5.0V @1-6S
  • Internal resistance: 1-99mR @1-6S
  • ESC: 200W@10A     PWM Output

Output.
  • PWM: 500-2500us @20-1000Hz
  • PPM: 880-2200us*8CH @20-50Hz
  • SBUS: 880-2200us*16CH @20-100Hz
  • Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
  • Over Current Cutoff time: <5ms

General.

  • Product size: 73*51*27 mm
  • Product weight: 90g
  • Pack size: 84*79*39 mm

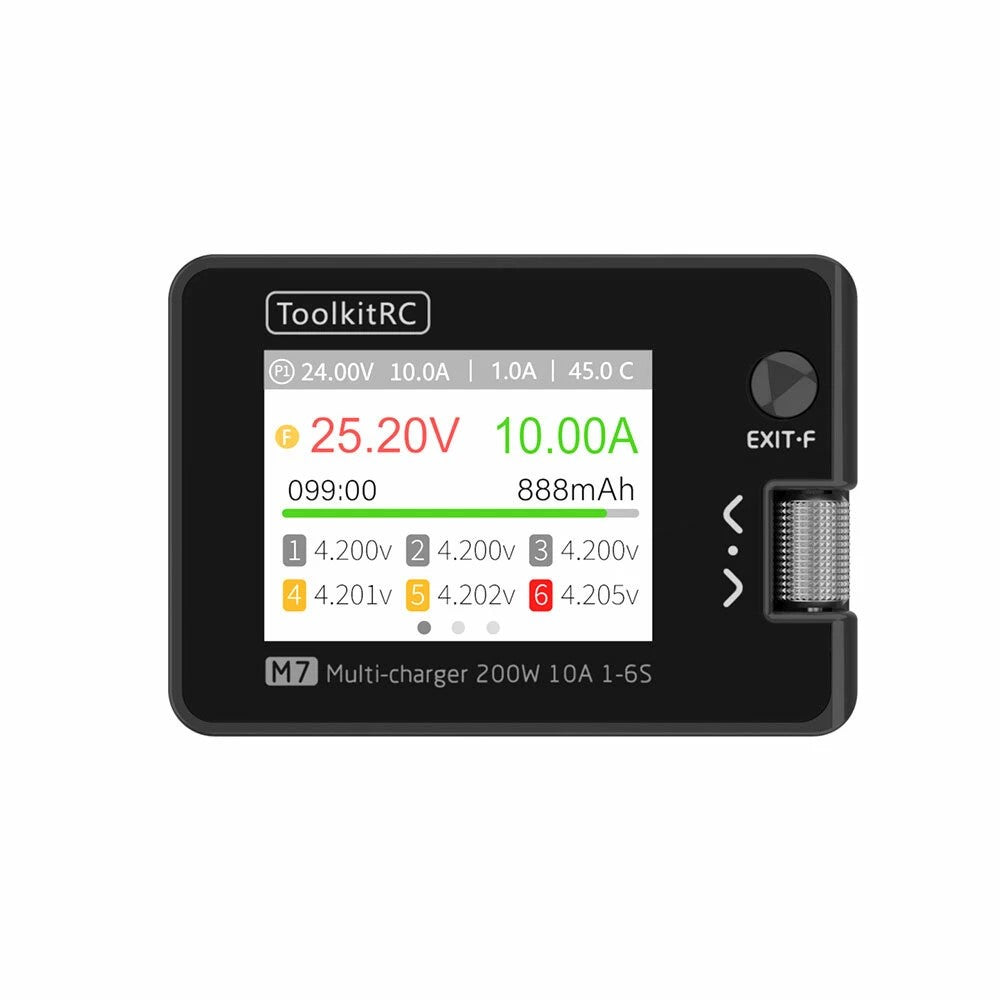

  • LCD: IPS 2.0inch LCD 320*240 Pixel
