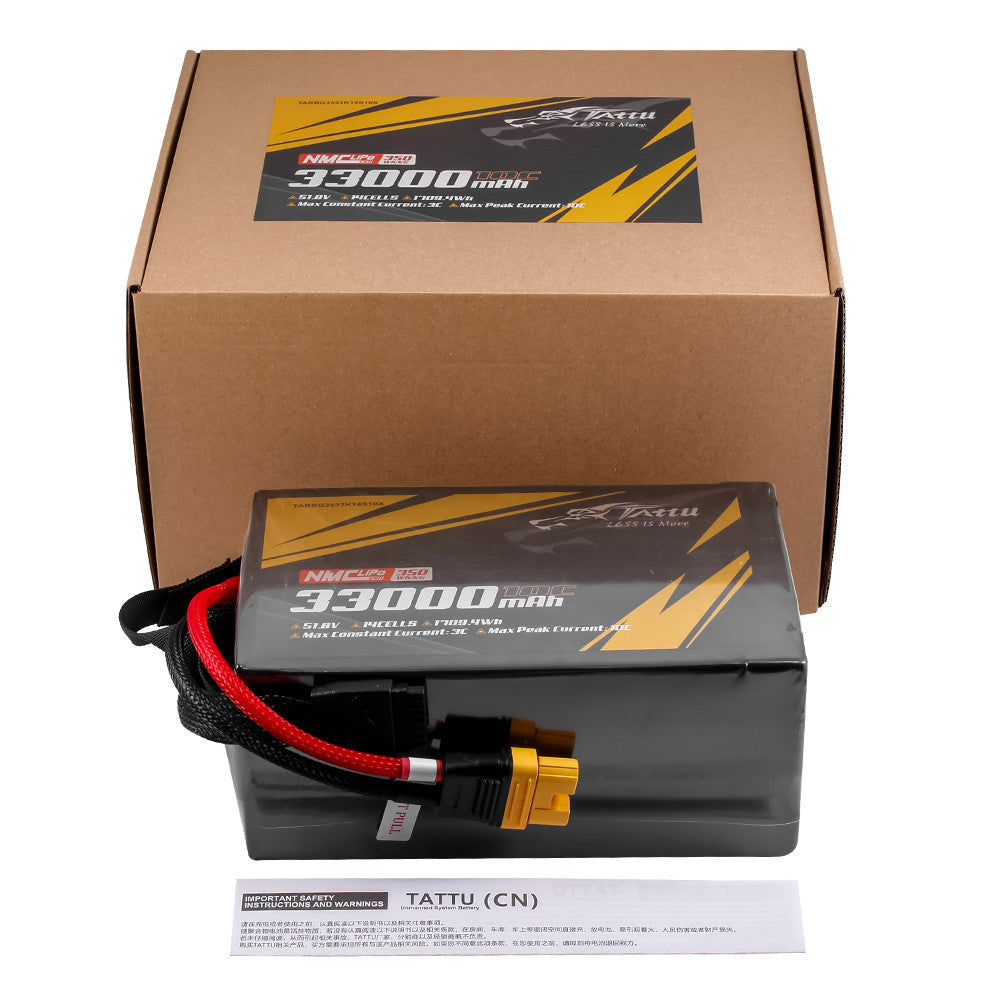

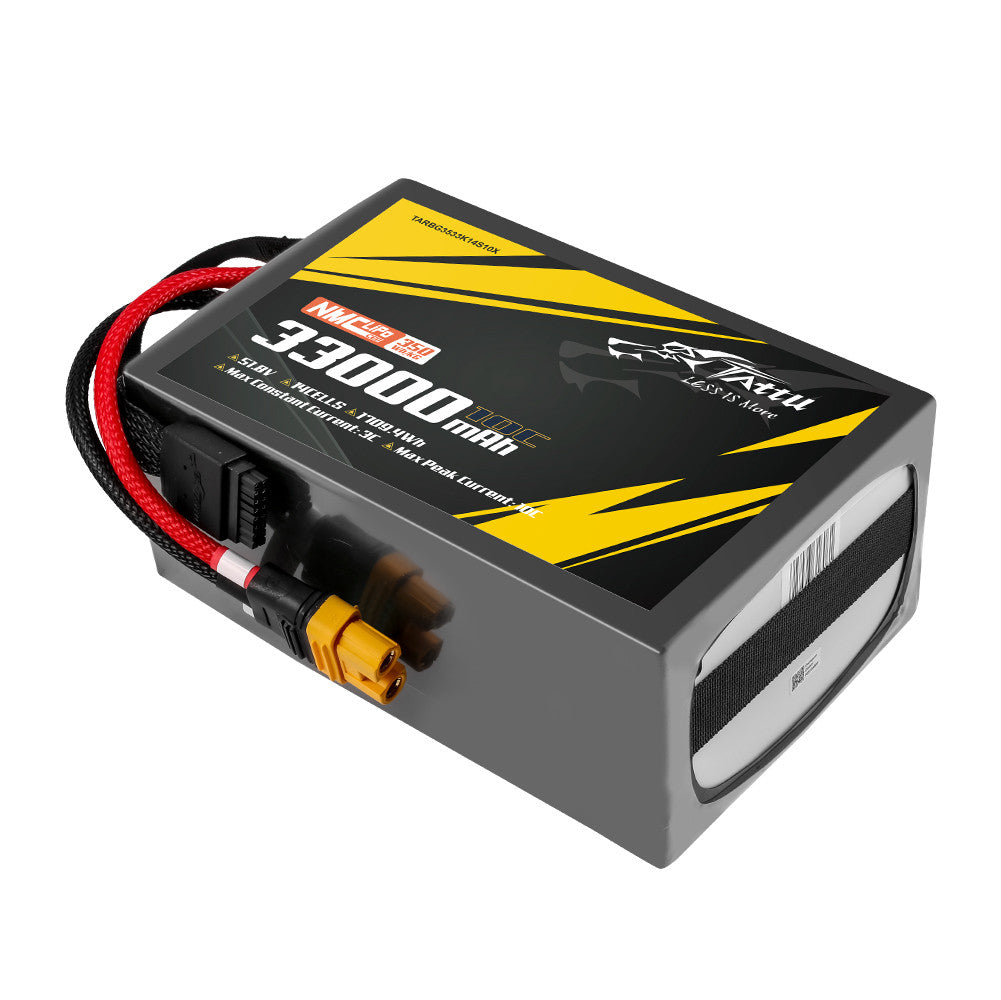

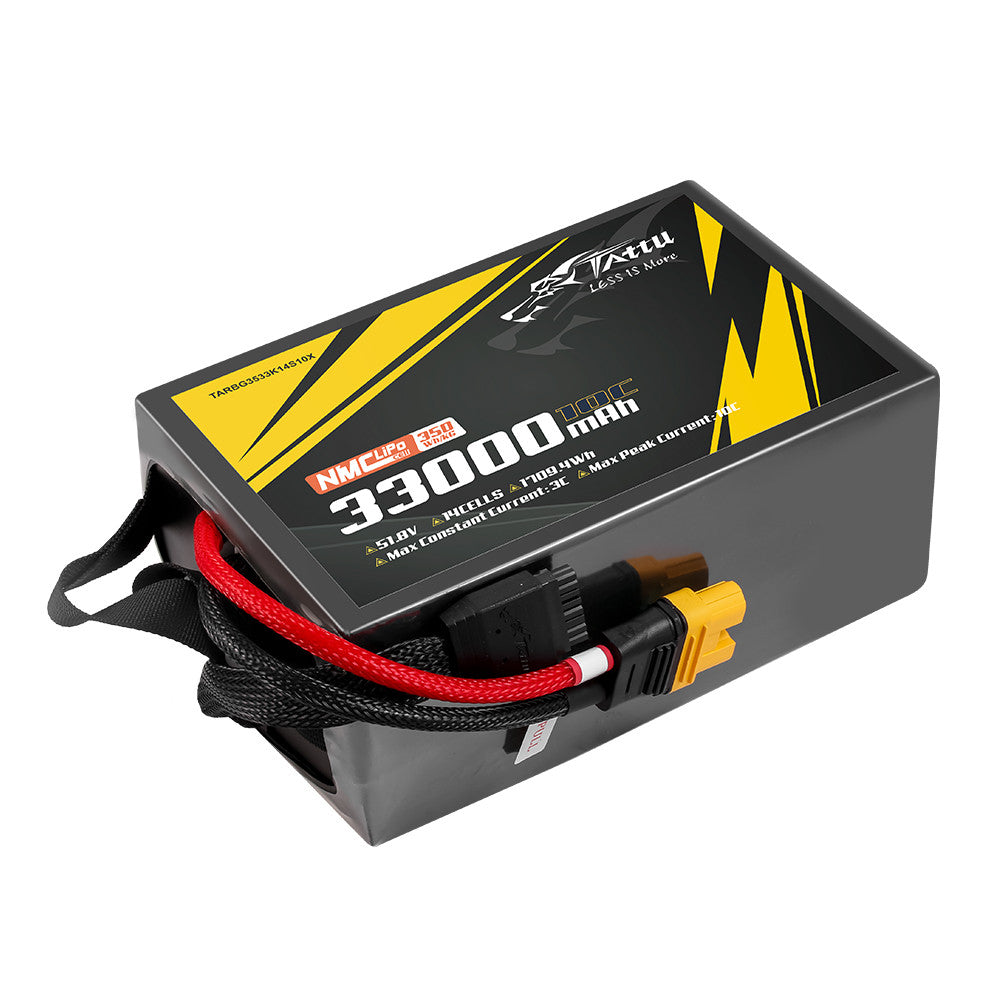

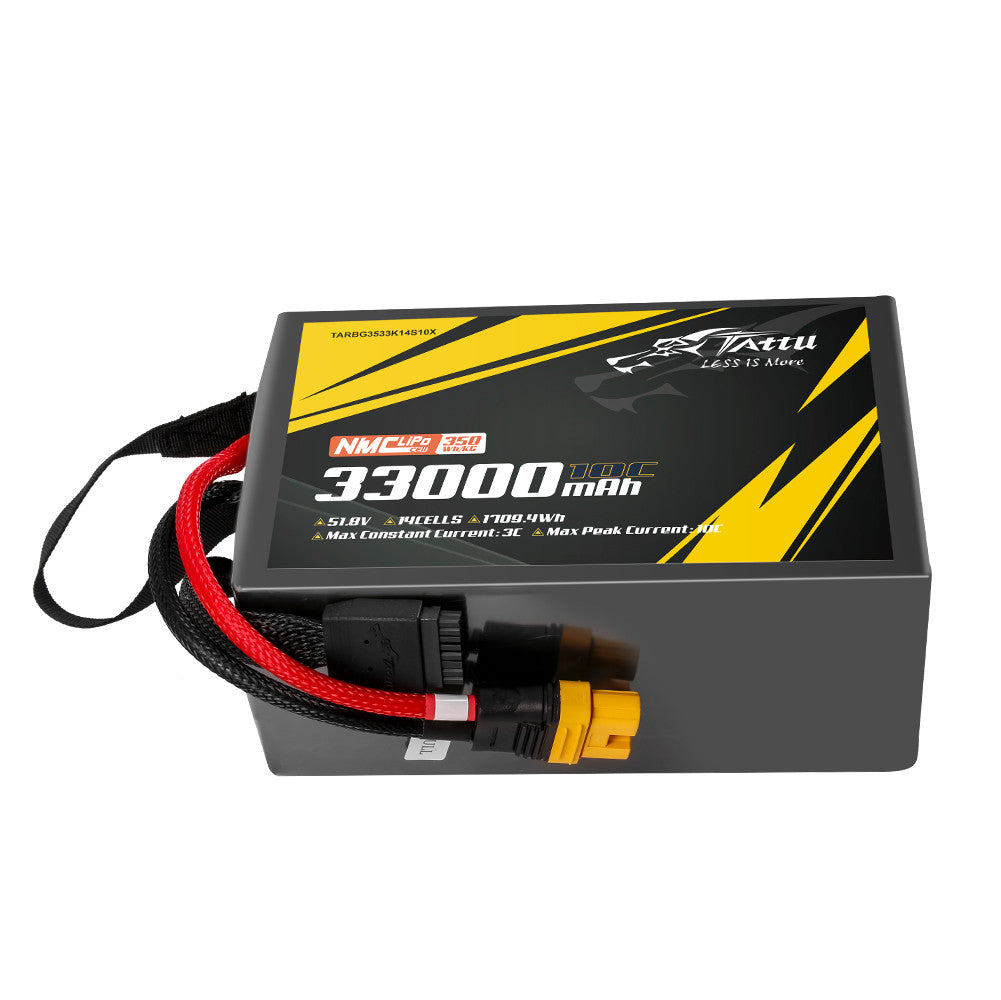

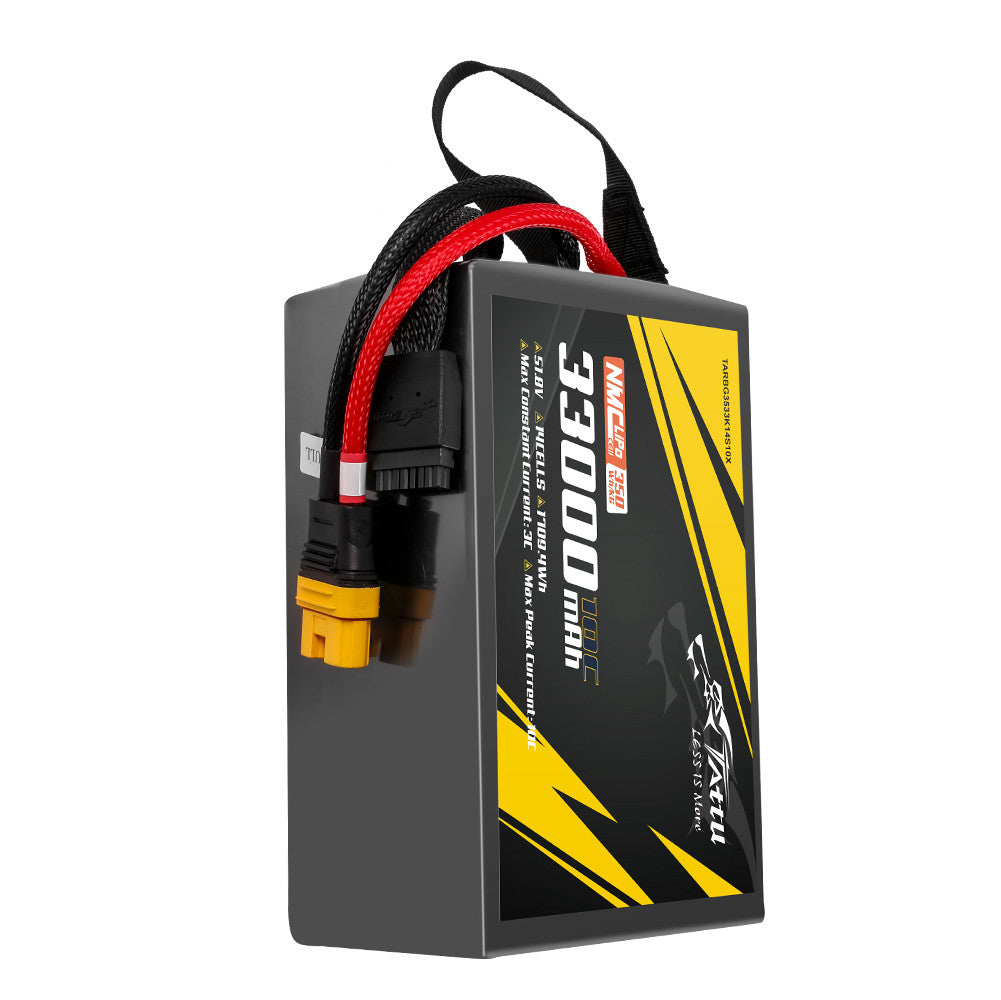

Tattu Semi-solid State 350Wh/kg 33000mAh 10C 51.8V 14S1P Lipo Battery Pack with AS150U-F plug

The Tattu Semi-solid state 350Wh/kg 33000mAh 51.8V 10C 14S1P Lipo Battery is a revolutionary semi-solid lithium battery, featuring high energy density and long service life.

Compared with traditional lithium batteries, Tattu Semi-solid State battery has a higher energy and lighter weight, can increase the battery endurance by 30% and cycle life more than of 500 (90% initial capacity). It is an ideal power solution for various industrial drones, including those used in mapping, inspection, surveying, delivery, and eVTOL applications.

These drones typically require a nominal discharge current of 1-3C, and this battery’s lightweight design, compact size, and extended flight time fully meet those demands.

NOTE: Please do not choose expedited shipping unless you live in greater Sydney as batteries cannot be shipped by Air.

Specifications:

• Capacity: 33000mAh
• Voltage: 51.8V/14S
• Max Peak Current: 10C
• Net Weight:5486.5g (±20g)
• Size: 213*91*141mm
• Discharge Connector Type: AS150U-F
• Balancer Connector Type: Molex-430251600

Features:

1. Energy Density:

• 350Wh/kg – This is a high energy density, suitable for applications where weight and energy storage are critical.

2. Safety Performance:

• Voltage Range: From 4.2V to 2.75V when SOC is from 100% to 0%. This range suggests good safety management within the battery’s operating limits.

3. Discharge Rate:

• Max Peak Current: 10C (for < 3 seconds)
• These rates indicate the battery’s ability to deliver power quickly and efficiently.

4. Cycle Life:

• Over 500 cycles – The battery maintains its performance over a significant number of charge-discharge cycles.

Technical Features:

1. Ultra-High Nickel Technology: Likely contributes to higher energy density and overall battery performance.
2. Silicon Carbon Anode: Enhances the battery’s capacity and cycling stability.
3. Coated Diaphragm Technology: Improves safety and performance by enhancing the separator's strength and stability.
4. Solid Electrolyte: Offers improved safety and performance, reducing the risk of leakage and enhancing the battery's life.

These features suggest a battery designed for high-performance applications, such as drones, electric vehicles, or other advanced electronics. If you have any specific questions or need further details, feel free to ask!

Link for details: https://tattuworld.com/semi-solid-state-battery-topic/

Charger:

Recommended use of the Tattu matching charger:

Tattu TA3200 Dual-channel smart charger 60A/3200W for 6S-14S Drone battery

Check for more Tattu UAV/Drone Chargers.

Tattu Semi-solid State Battery - 350Wh/kg Series:
