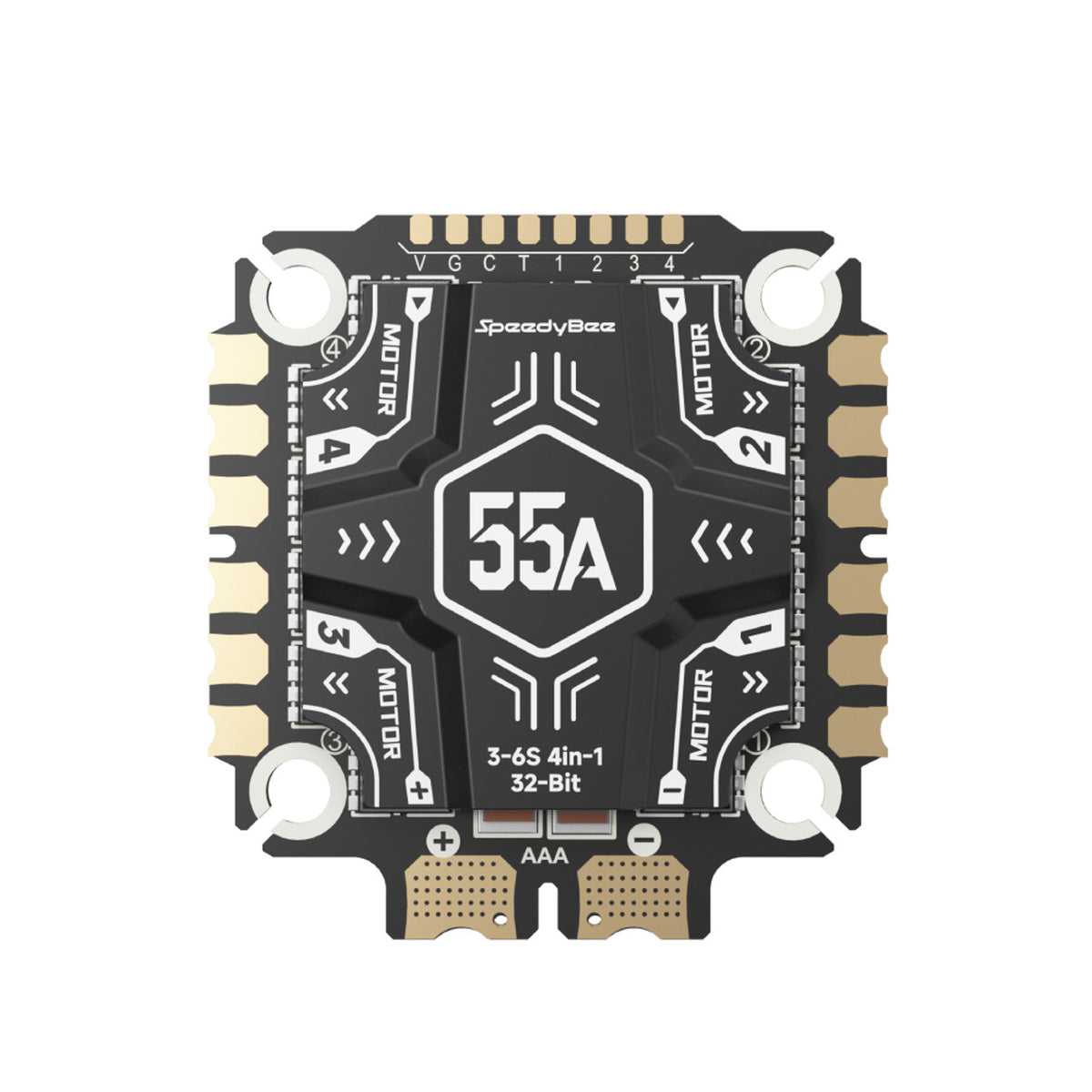

SpeedyBee OX32 55A 30x30 ESC
Specifications.
- Default Firmware OX32
- Continuous Current 55A (per channel) / 220A (4-in-1)
- Maximum Current 70A (per channel) / 280A (4-in-1)
- TVS Protective Diode Yes (built-in)

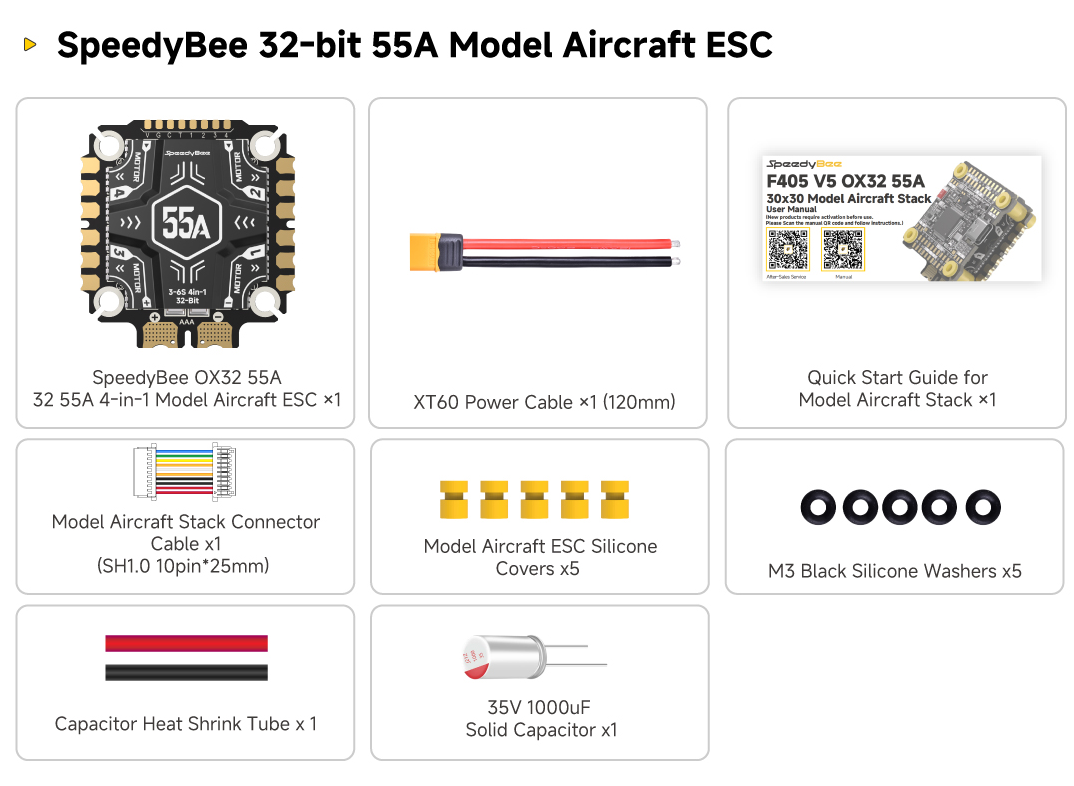

- External Capacitor 1000µF Solid Capacitor (included in package)
- ESC/Motor Protocol DSHOT300/600
- Input Voltage 3-6S LiPo
- Power Output VBAT
- Current Sensor Supported
- ESC Telemetry Supported
- Mounting Holes 30.5 × 30.5mm (Ø4mm), side opening
- Dimensions 40.9mm (L) × 44.9mm (W) × 8.0mm (H) (incl. heatsink)
- Weight 19.1g
- ESC Webpage https://ox32.oxbot.com/
- Current Meter Note Supported (Scale=27, Offset=-2644)
