RunCam | SKU:
WiFiLink-RX
Sold out

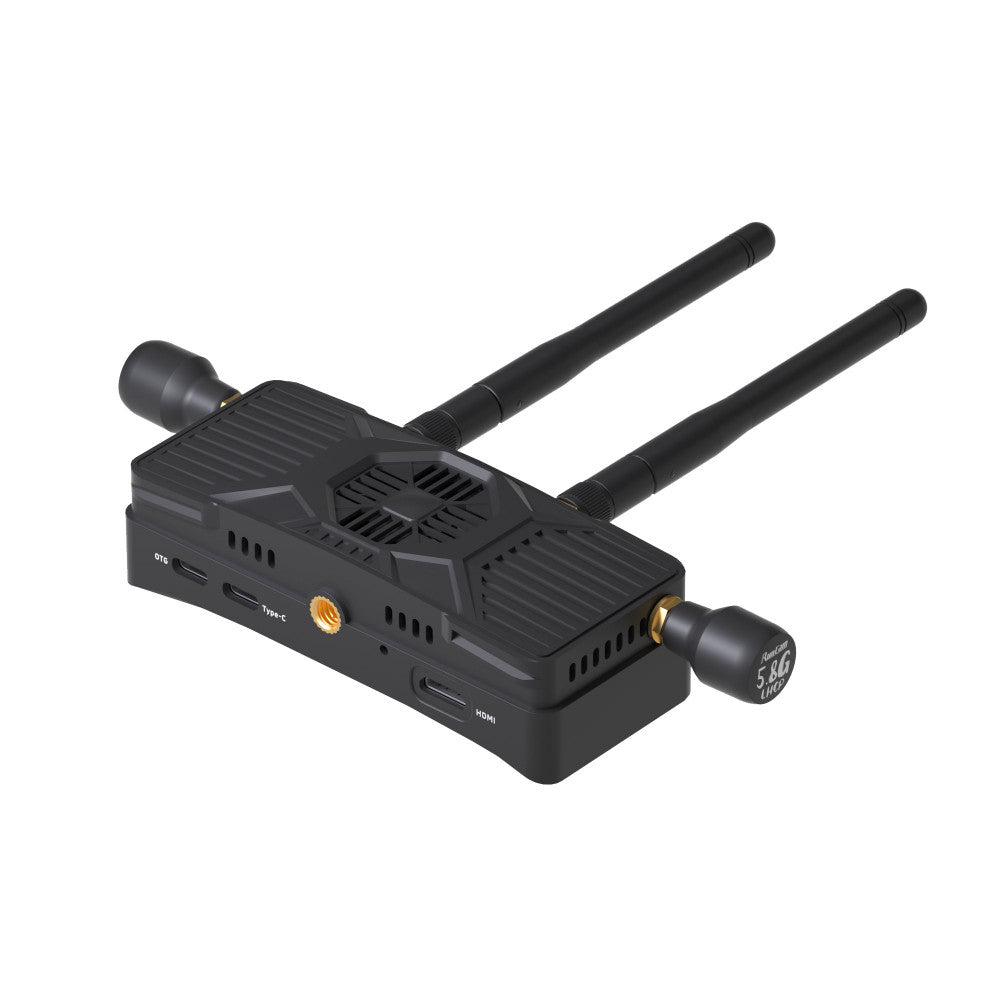

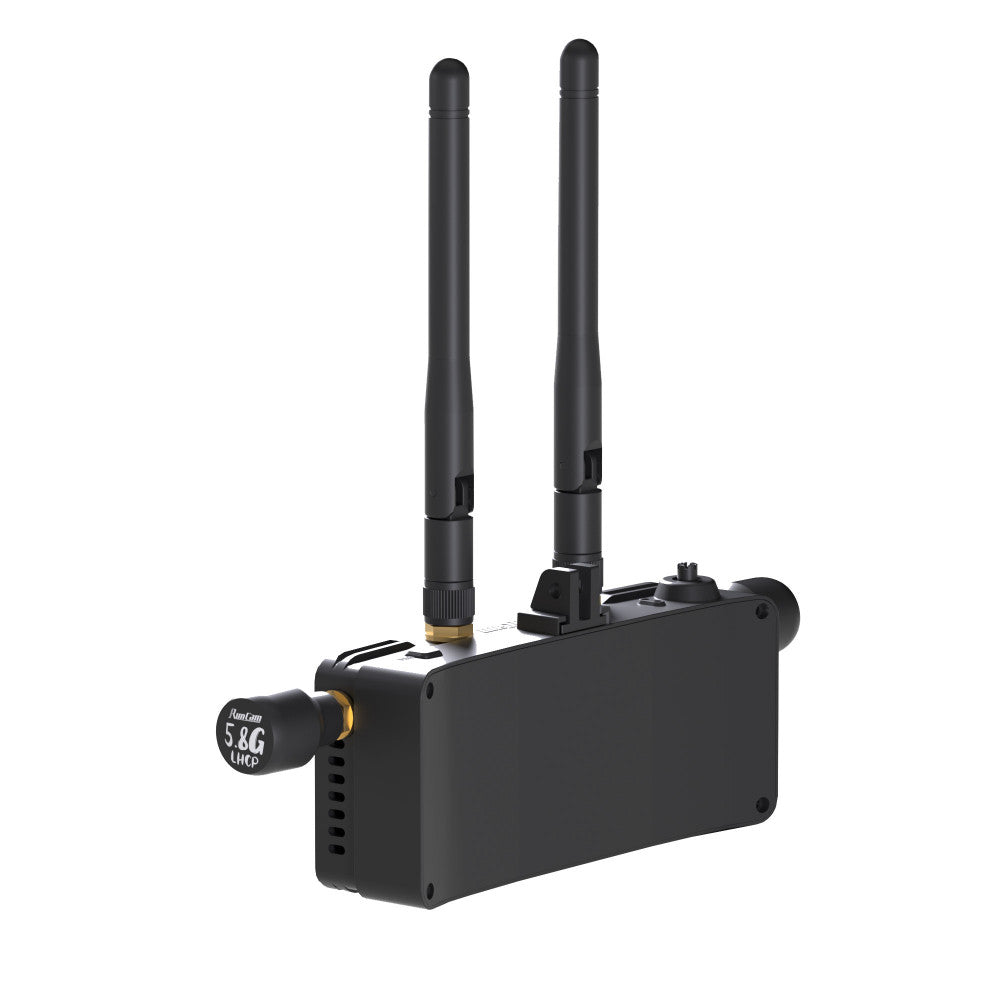

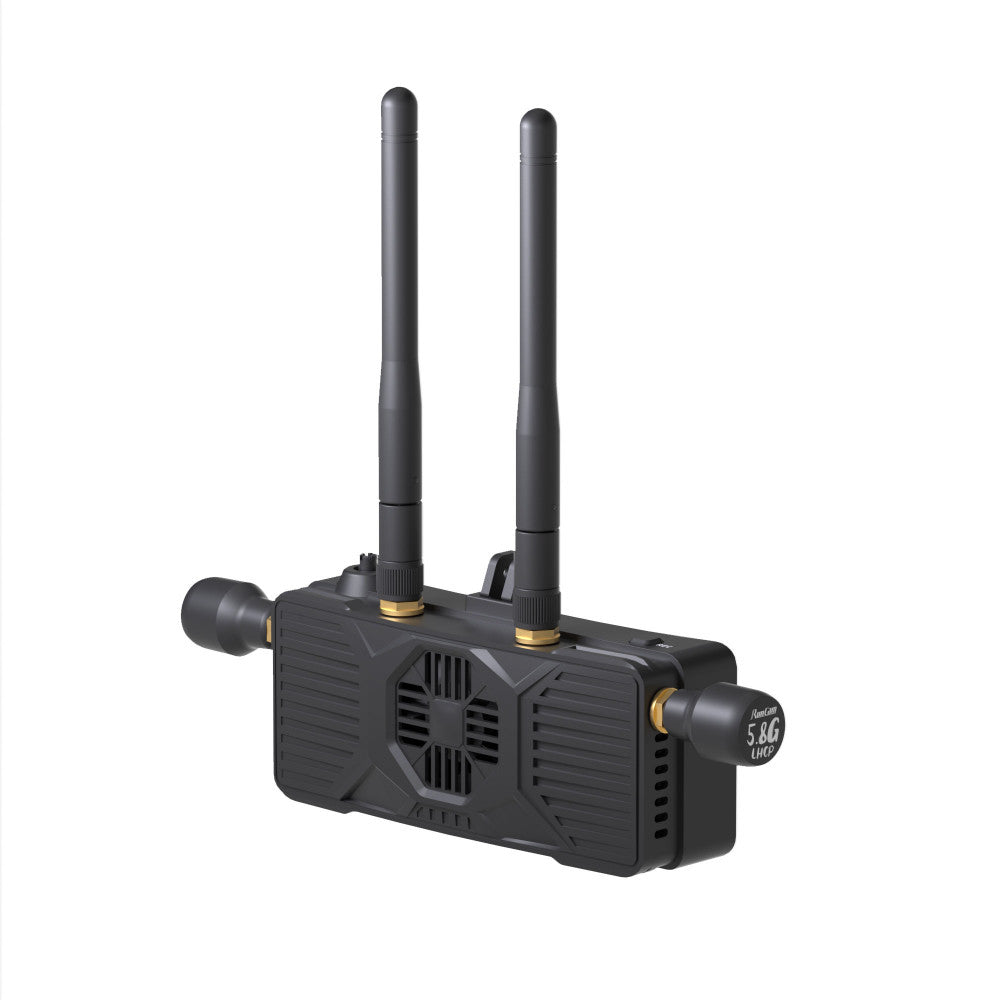

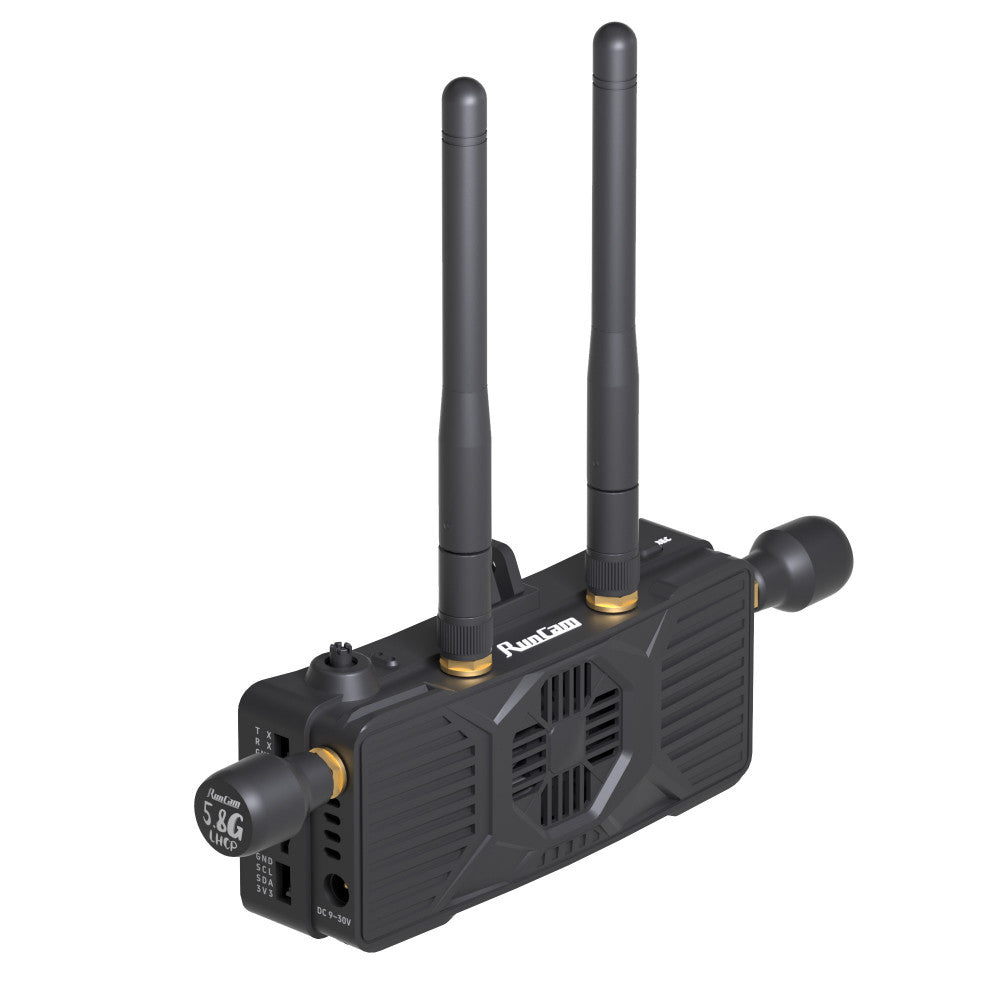

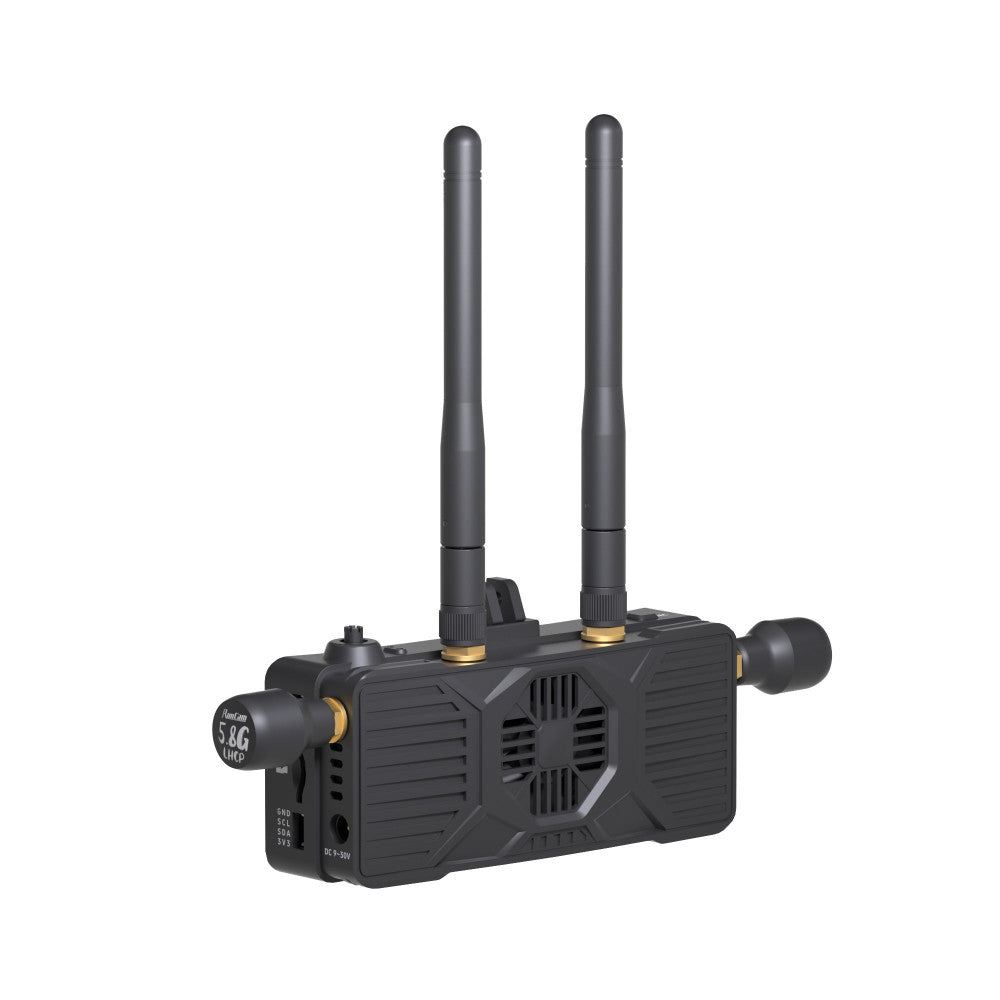

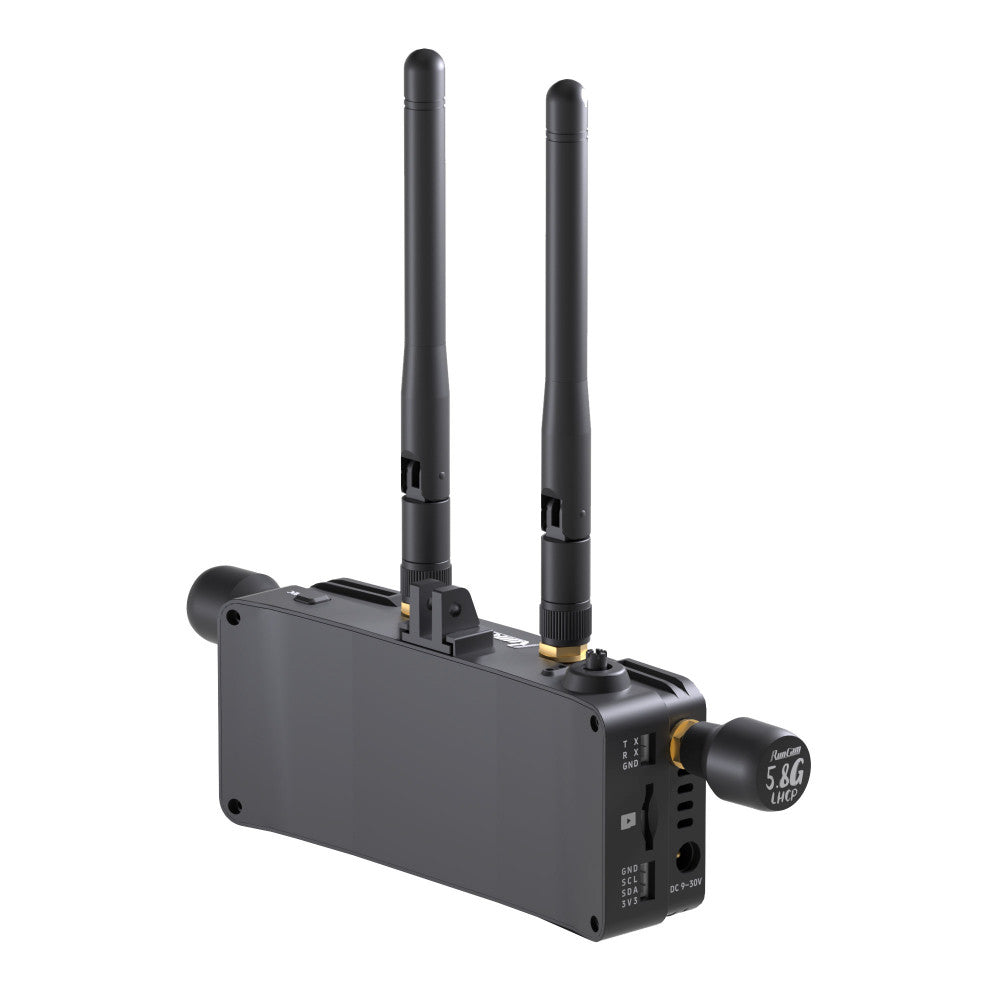

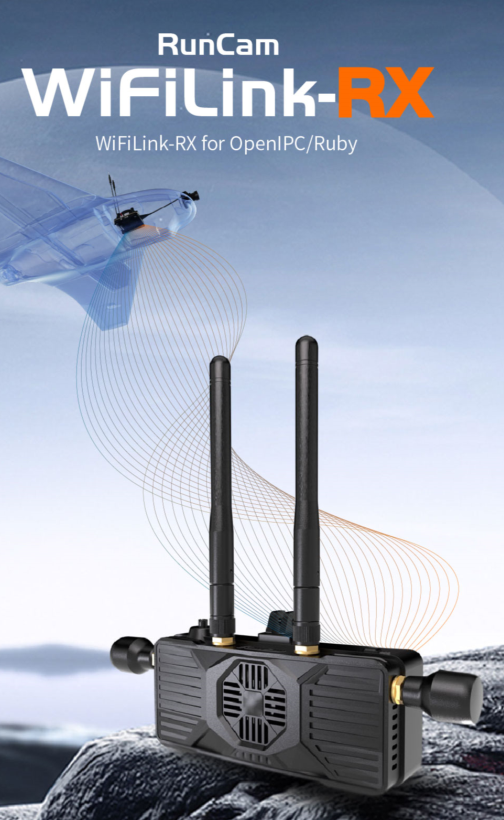

RunCam WiFiLink Digital HD Receiver (support OpenIPC and ruby System VTX)
Regular price
$179.95
Unit price
Tax included
Shipping calculated at checkout.
RunCam WiFiLink Digital HD Receiver (support OpenIPC and ruby System VTX) is backordered and will ship as soon as it is back in stock.
Description
Description
Specifications
| Model | WiFiLink RX |
| Frequency | 5180Mhz~5885Mhz |
| Transmission Power | < 25dBm(FCC) < 14dBm(CE) < 20dBm(SRC) < 25dBm(MIC) |

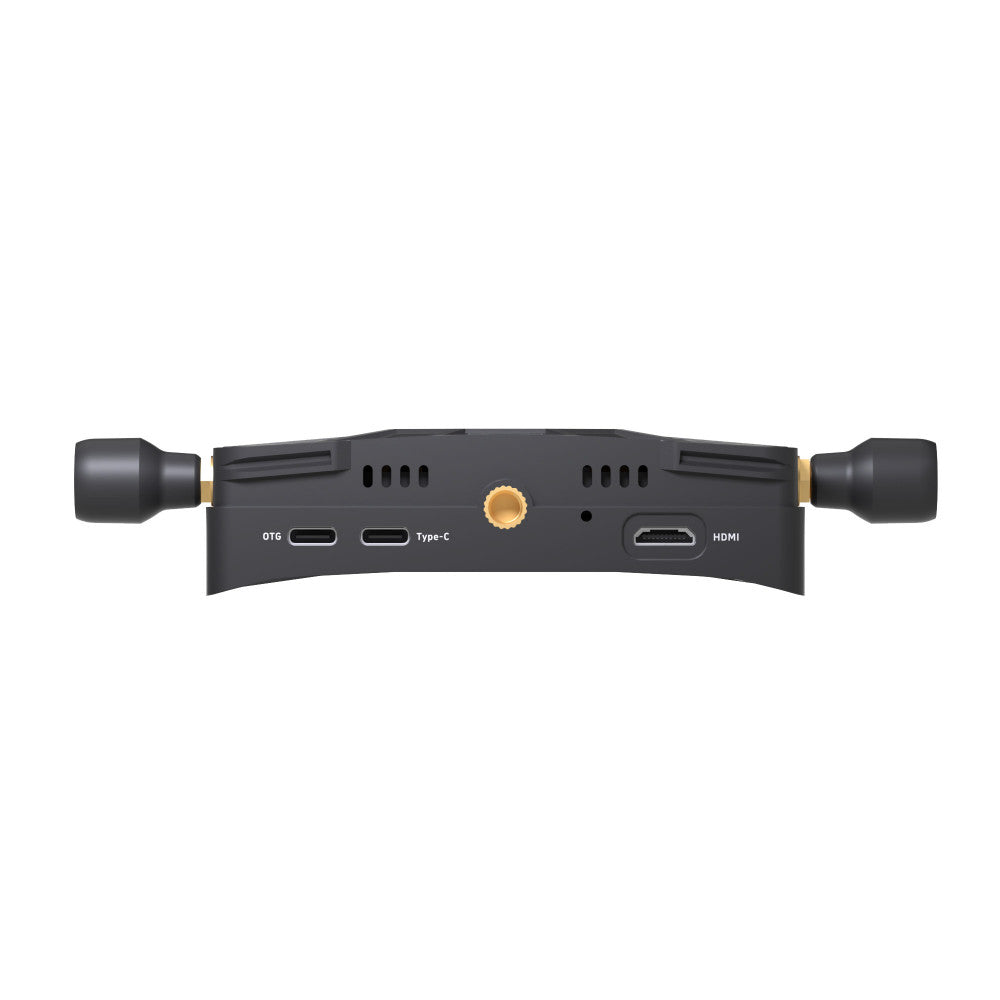

| Interface | Mini-HDMI, Micro-SD, DC 5.5x2.1mm, Type-C, OTG |
| Mini-HDMI Output | 1080P 60fps / 720P 60fps |
| Power Input | 9~30V (3~6S) |
| MicroSD Card | Supports up to 256GB |
| Built-in Storage | 32G (including system files) |
| System | Ruby FPV / OpenIPC |
| Dimensions | (L)110.0mm x (W)27.3mm x (H)46.0mm |
| Weight | 122.0g (±1g) (antenna excluded) |
| Model | Stick Antenna |
| Polarization | Vertical Polarization(VP) |
| Operating Frequency | 5150-5850 MHz |
| Average Gain | 2.5dBi |
| Standing Wave Ratio (SWR) | <=2.0 |
| Dimensions | (R)4.8mm x (H)108.4mm |
| Weight | 6.6g |
| Model | Pagoda Antenna |
| Polarization | Left-Hand Circular Polarization（LHCP） |
| Operating Frequency | 5500-5900 MHz |
| Average Gain | 2.5dBi |
| Standing Wave Ratio (SWR) | <=2.0 |
| Dimensions | (R)8.0mm x (H)23.9mm |
| Weight | 4.4g |
