Hee Wing T1 Ranger VTOL - PNP

HEEWINGSKU: T1-V-PNP-GY-FC

Price:
Sale price$499

Shipping calculated at checkout

Stock:
In stock (4 units), ready to be shipped

Description

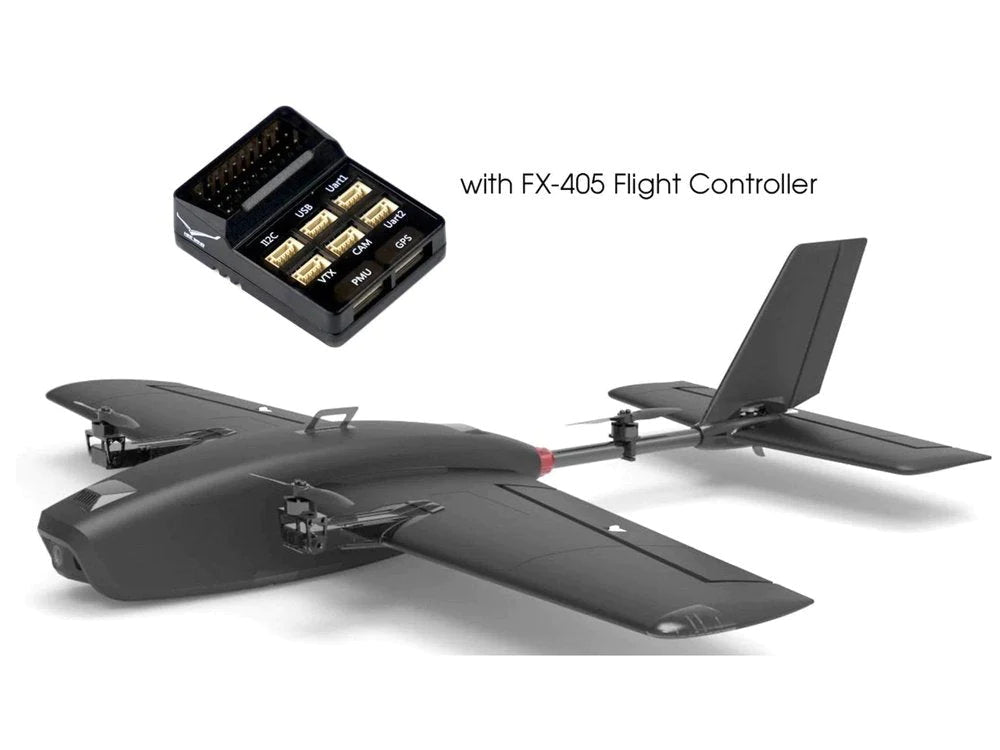

T1 Ranger VTOL - PNP comes with a Pre-installed & Pre-configured F405 based VTOL Flight Controller!

If you want to experience the factory parameters, you just need to hook up your receiver, configure the receiver, perform radio calibration, match the flight modes to your radio and you are on your way to do your first VTOL take off, anywhere!



Features
  •  Small, lightweight and portable at 730mm wingspan
  •  Quick disassembly design. Assemble and disassemble for transportation in a minute
  •  VTOL - Vertical Take Off and Landing
  •  Superb aerodynamic design. Stable at low speed
  •  Large internal space to carry battery and electronics with high flexibility to achieve the best CG
  •  Front and rear hatch for maximum flexibility organising your electronics
  •  Dedicated front FPV camera mount
  •  White foam is now the same high dense version as Gray foam
  •  New revised air intake for better cooling
  •  Easily detachable main wings reduce damage during a crash


Specifications
  • Brand : Hee Wing RC
  • Model : T1 Ranger VTOL - PNP
  • Material : EPP
  • Color : Gray only
  • Wingspan : 730mm
  • Length : 645mm
  • Height : 140mm
  • Weight : 451gram
  • Takeoff Weight : 600g to 750gram
  • Fuselage Size : 245m(L) x 51mm(W) x 48mm(H)
  • Minimum Speed : <20km/h
  • Maximum Speed : >120km/h
  • Maximum Range : > 25km
  • Maximum Cruise Time : > 65min
  • Package Dimension : 400mm x 230mm x 155mmm




What's included

  • 1x T1 Ranger VTOL - PNP

Preinstalled with
  • 3x FX-1806 2000KV Motors
  • 3x FX-25A ESC
  • 3x 7g Digital Metal Gear Servo
  • 2x Metal Gear Tilt Servo
  • 3x 5126 propellers
  • Quick Release Wiring Plug for the Main Wings
Preconfigured VTOL FX-405 Flight Controller with 5V/5A PMU & 9V/3A UBEC

Requires your own/not included
  • Radio - Minimum 5 channels.
  • Receiver - Minimum 5 channels.
  • Battery : 4S 1300mAh - 5000mAh or 150-250gram *recommended
  • Charger : supports up to 4S LiPo charging

Recommended Batteries (Li-Ion)


Notes

  •  VTOL parameters preloaded are for reference only. Fly at your own risk. We are not responsible for any issue arise from this such as crashing. You may adjust the parameters accordingly.
  •  each of your main wings, tail and fuselage are individually box within the external shipping box for maximum protection during shipping
  •  VTOL must be powered on 4S, not lower.
  •  to ensure a great first experience with your T1 VTOL PNP, check out the notes on the instruction page before flight

F405 based VTOL Flight Controller specially customized for Hee Wing RC with much smaller form factor. Pre-loaded with VTOL parameters.
