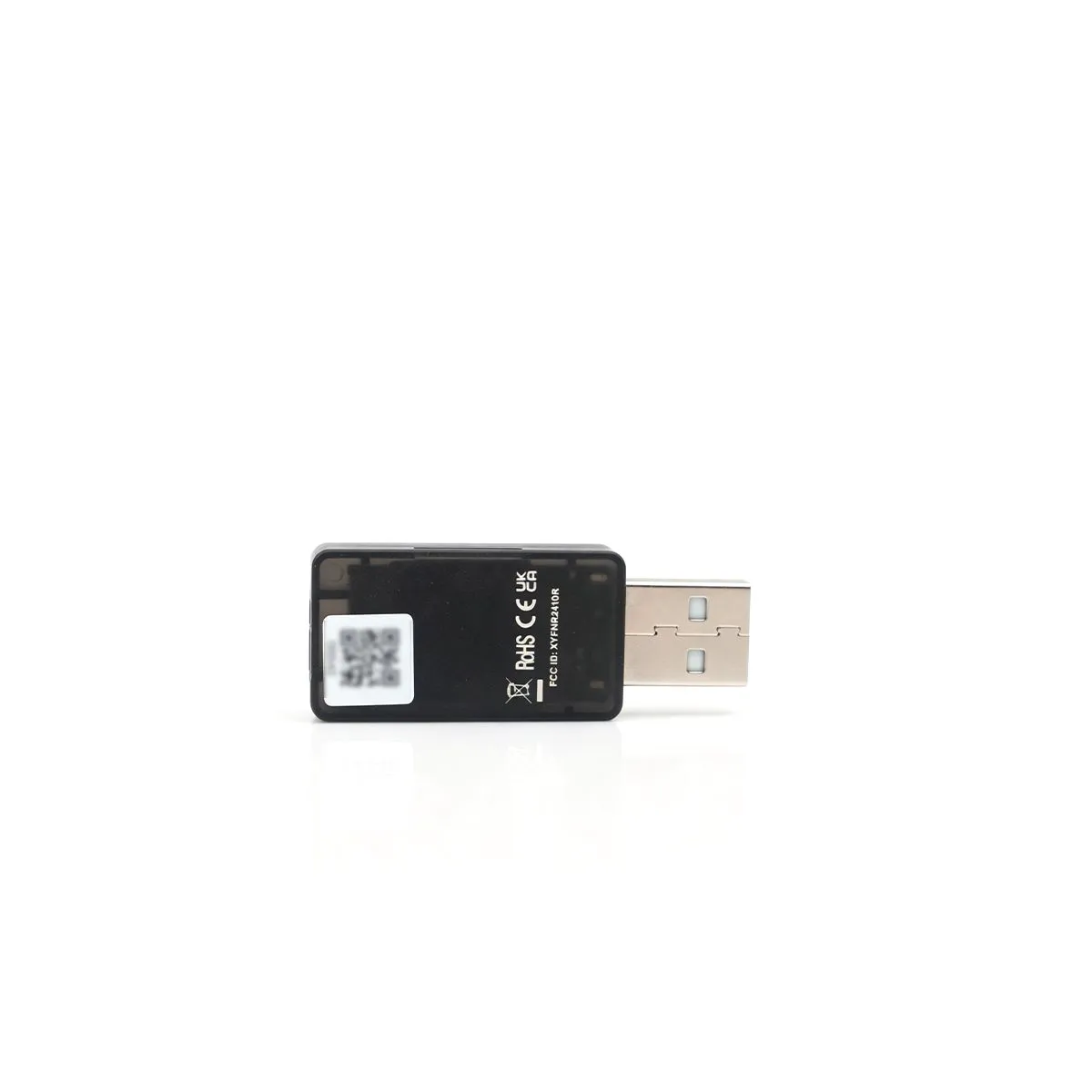

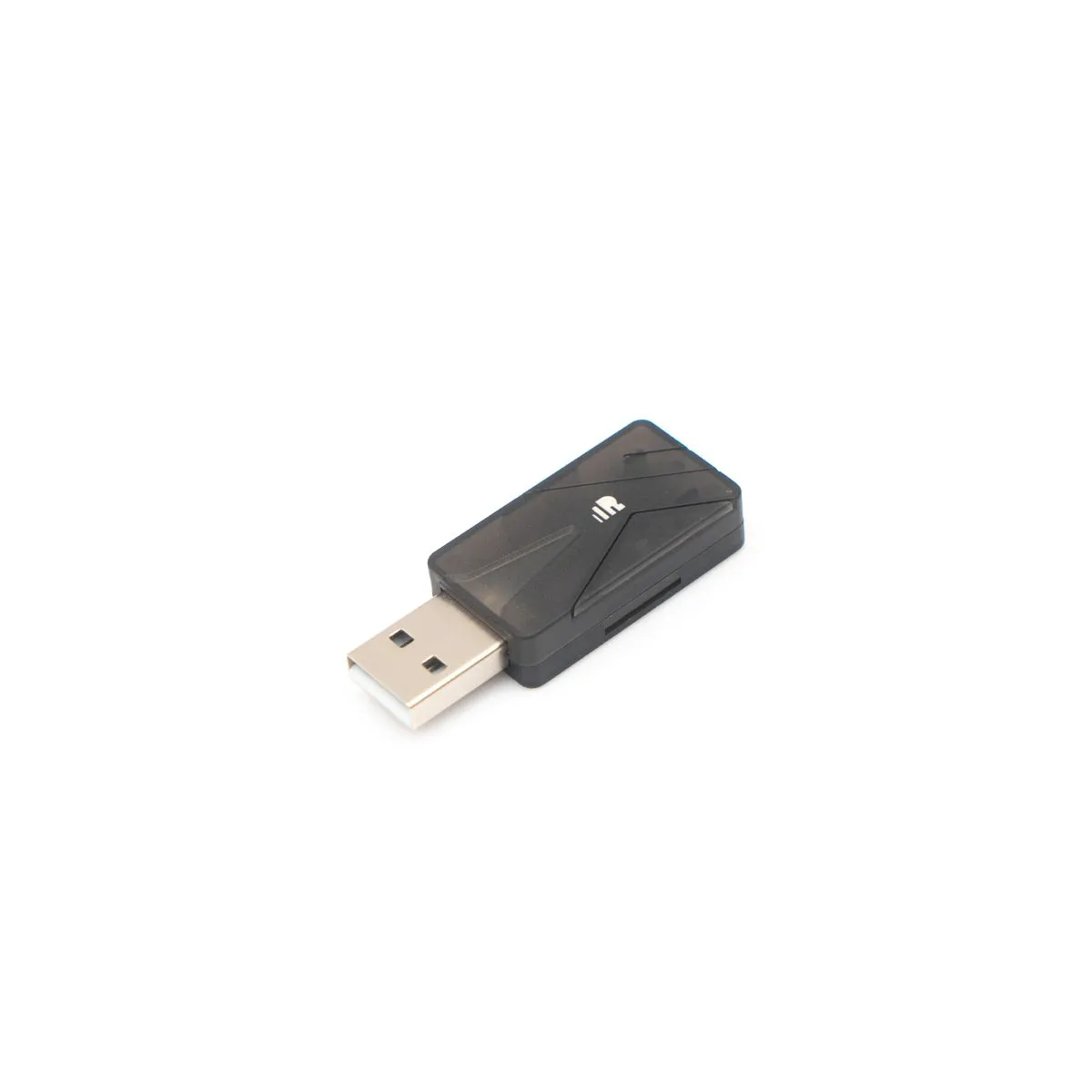

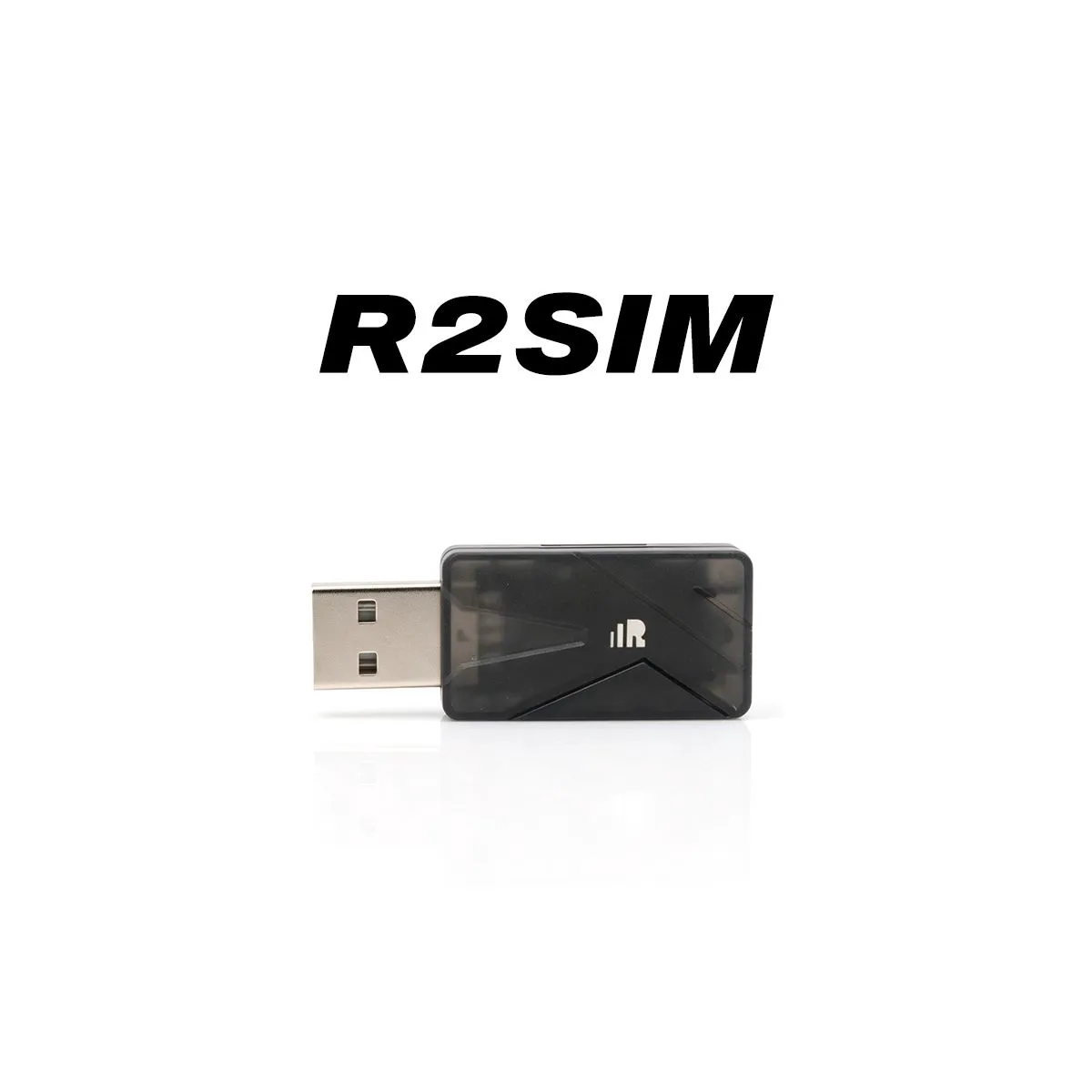

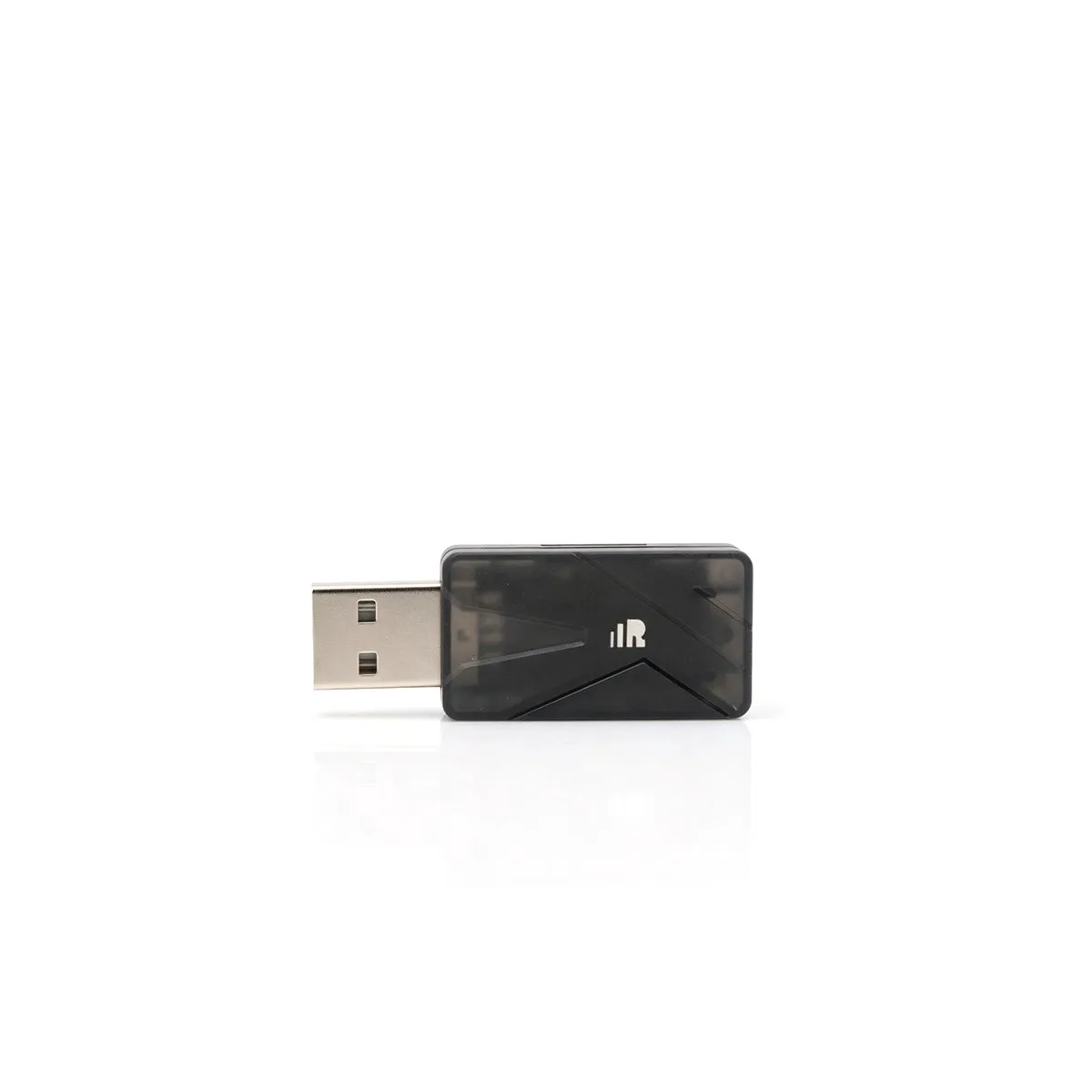

FrSky R2SIM

FrSky R2SIM Wireless USB Dongle can be used to bind and connect with controller devices supporting ACCST / ACCESS modes. Once paired, it allows the radio controller to control various flight or other types of simulator software applications.
The R2SIM shares the same form factor as the XSR-SIM, but offers further improvements in control channels and output range. The R2SIM can output 0-2047 range instead of -127-127 from the original XSR-SIM, delivering higher resolution and improved compatibility with a broader range of simulator software.

SPECIFICATIONS

• Size: 50×19.1×9.2mm (L×W×H)
• Weight: 6.3g
• Operating Current: 20mA@5V (typ.)
• ACCST Mode: 8 proportional channel & 8 switch channel outputs
  ACCESS Mode: 8 proportional channel & 16 switch channel outputs
  (Note: Channel mixer configuration on the radio system is required to enable different channel outputs.)
• 0-2047 range with higher resolution channel outputs
• Compatible ACCST & ACCESS working modes
• Compatible with different simulator software (such as DRL, LiftOff, Freerider, HotProps, etc.)
• Firmware Upgradable
