Description

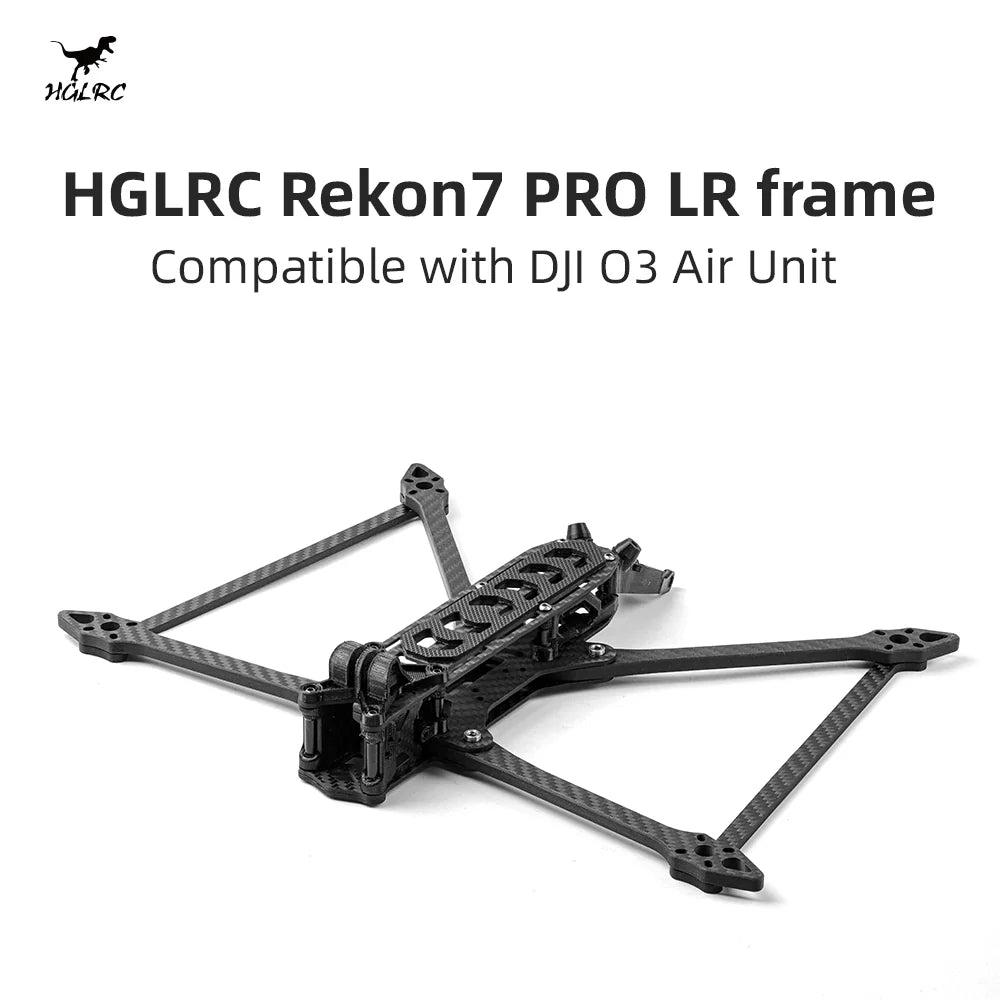

Rekon7 Long Range HD O3 Frame Kit 7 Inch for FPV Racing Drone
Specifications:
- Product name:Rekon
- Model:Rekon7 LR Frame kit
- Material:3K Carbon fiber
- Type:7 inch
- Wheelbase:324mm
- Size:337*246mm
- Top plate thickness:2mm
- Bottom plate thickness:2mm
- Middle plate thickness:2mm
- Front arm:6mm
- Rear arm:6mm
- Frame protection bar:2mm
- Camera side plate:2mm
- Top and middle plate space:20mm
- Flight controller mounting hole:20x20mm
- Camera mount:19*19mm/20x20mm
- Motor mounting hole:16*16/19*19mm
- Weight:0g
Package includes:
- 1x 2mm top plate
- 1x 2mm base plate
- 1x 2mm mid plate
- 2x 6mm front arm
- 2x 6mm rear arm
- 2x 2mm rack protection board
- 2x 2mm camera side panel
- 2x 4mm Arm Reinforcement rod
- 2x M3*28mm black mesh aluminum column
- 4x M3*20mm black mesh aluminum column
- 2x M3*18mm black mesh aluminum pillar
- 4x M4*12 Screws
- 4x M3*20 Screws
- 4x M3*16 Screws
- 4x M3*10 Screws
- 8x M3*8 Screws
- 4x M2*20 Screws
- 1x M2*16 Screws
- 1x M2*10 Screws
- 2x M2*4 Screws
- 1x M5 lock nut (red)
- 4x M3 self-locking nuts
- 5x M2 self-locking nuts
- 8x M3*8 shock-absorption balls
- 4x M2*4 shock-absorption balls
- 2x battery straps 20x250mm
- 1x Battery Anti-slip pad
- 1x TPU black GoPro holder mount
- 1x TPU black GPS mount
- 1x TPU black antenna mount
- 1x TPU black T-antenna mount
- 1x TPU black buzzer mount
- 1x TPU black DJI Air unit Block A
- 1x TPU black DJI Air unit Block B
- 1x TPU black DJI O3 holder mount
- 1x TPU black Camera converting seat
Recommended parts:(not included)
- Flight control:Zeus F722
- Motor:2806.5
- ESC:Zeus 48-60A
- Camera:19X19mm/20x20mm
- Propeller:7 inches
- Battery:6S 1800-4200mAh
