Description

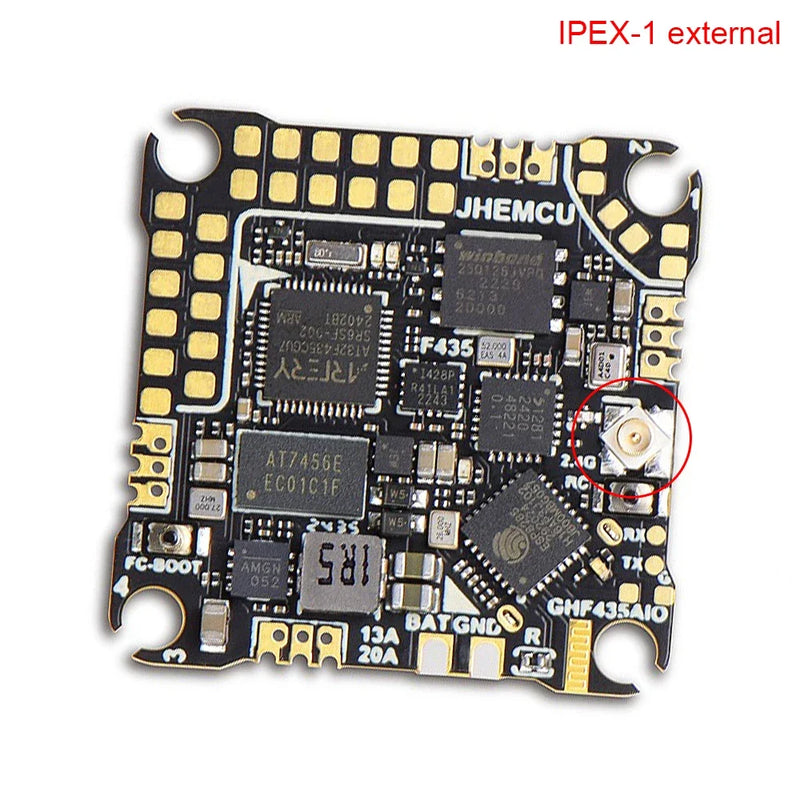

The JHEMCU GHF435AIO flight controller is the epitome of advanced flight control technology. With its robust AT32F435CG/288MHZ MCU and ICM-42688-P/Gyro/Accel IMU, it provides precise and responsive control for your RC FPV drone. The built-in OSD, barometer, and 16MB black box ensure you have all the necessary data at your fingertips, while the 20A ESC with AM32 type and AT32DEV_F421 firmware ensures reliable power delivery for your drone's motors. The inclusion of ELRS 2.4G CRSF receiver technology ensures a stable and robust connection, while the WS2812 light strip adds an aesthetic touch to your drone's design.
**Versatile Connectivity and Firmware Updates**
The JHEMCU GHF435AIO is designed for versatility, offering a range of serial ports (UART1, UART2, UART3, UART5) to accommodate various peripherals and devices. The USB Micro port enables easy firmware updates, while the DFU button simplifies the process of restoring the flight controller to its default settings. The inclusion of a 5V buzzer and voltage sensor adds safety features to your drone, ensuring you're aware of any critical events. The compact size of 30*30MM and light weight of 5g make it an ideal choice for various drone builds, without compromising on performance.
Specifications
- Model: CHF435AIO
- MCU: AT32F435CG/288
- IMU: ICM-42688-P/Gyro/Accel
- OSD: AT7456E
- Barometer: Yes
- Black Box: 16MB
- Input Voltage: 2 - 4S (7.4V - 17V)
- 5V ESC (BEC): 5V/2.5A±0.1V
- Serial Port (UART): UART1, UART2, UART3, UART5
- Receiver: ELRS (CRSF), TBS (CRSF), SBUS, IBUS
- Light Strip: WS2812
- Buzzer: Yes (5V)
- GPS: Yes
- Compass: Yes
- HD03: Yes
- USB: Micro USB
- Current port: Yes
- Voltage sensor: Yes
- DFU button: Yes
- Flight control firmware: Betaflight JHEF435
- Size: 30*30mm
- Mounting hole: 25.5*25.5*3mm
- Weight: 5g

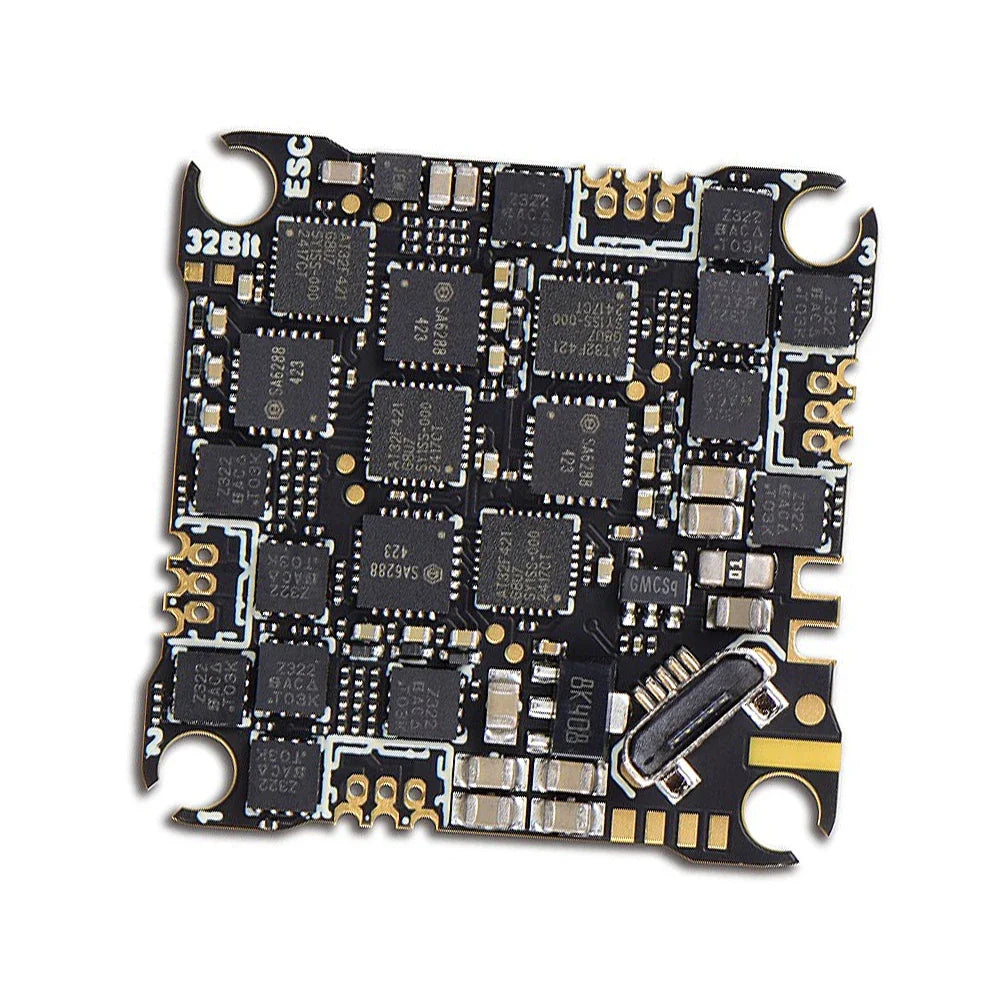

- ESC current: 20A
- ESC MCU: AT32F421
- ESC type: AM32
- ESC firmware: AT32DEV_F421
- ESC protocol: Dshot150, Dshot300, Dshot600
- Receiver type: ELRS
- Receiver frequency: 2·4G
- Receiver signal protocol: CRSF
- Receiver firmware: betafpv.rx_2400.lite.
- WI·FI firmware update: Yes
-
Standalone receiver: Yes
