Description

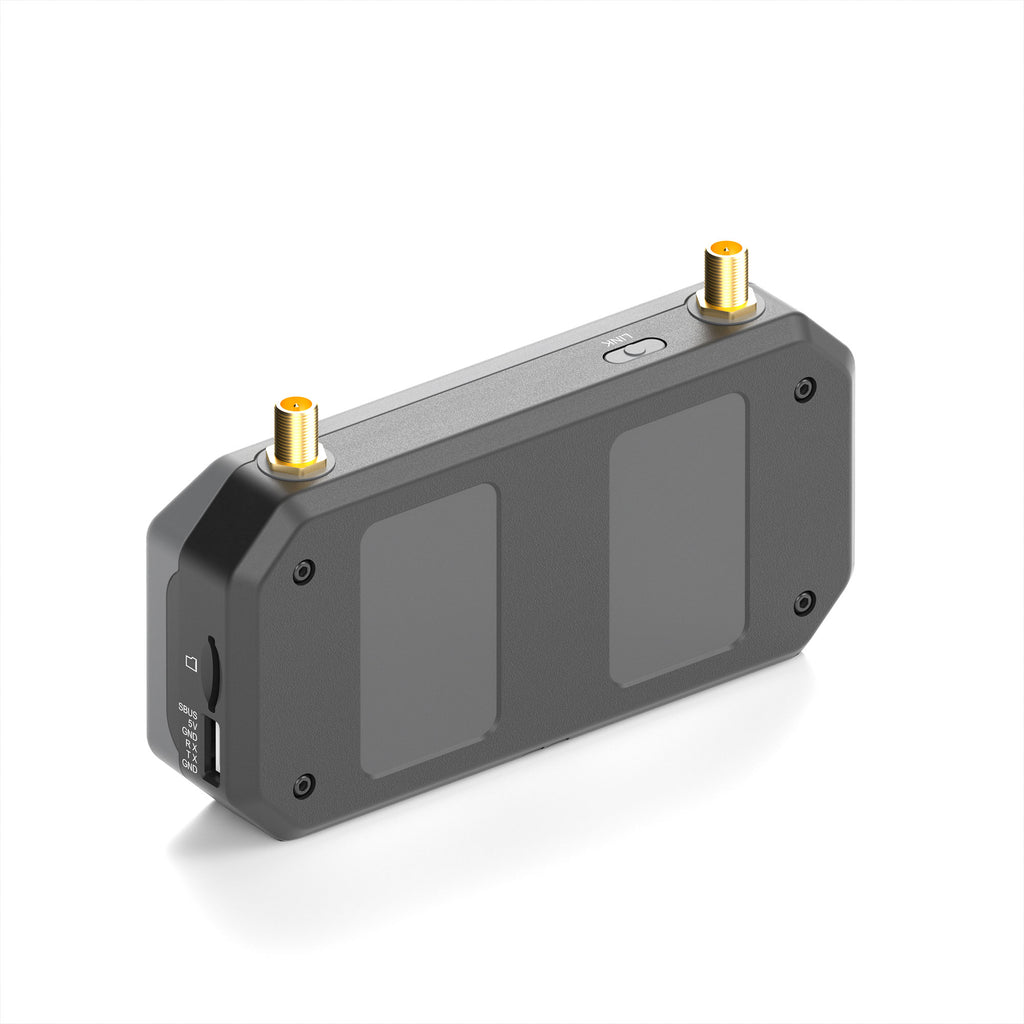

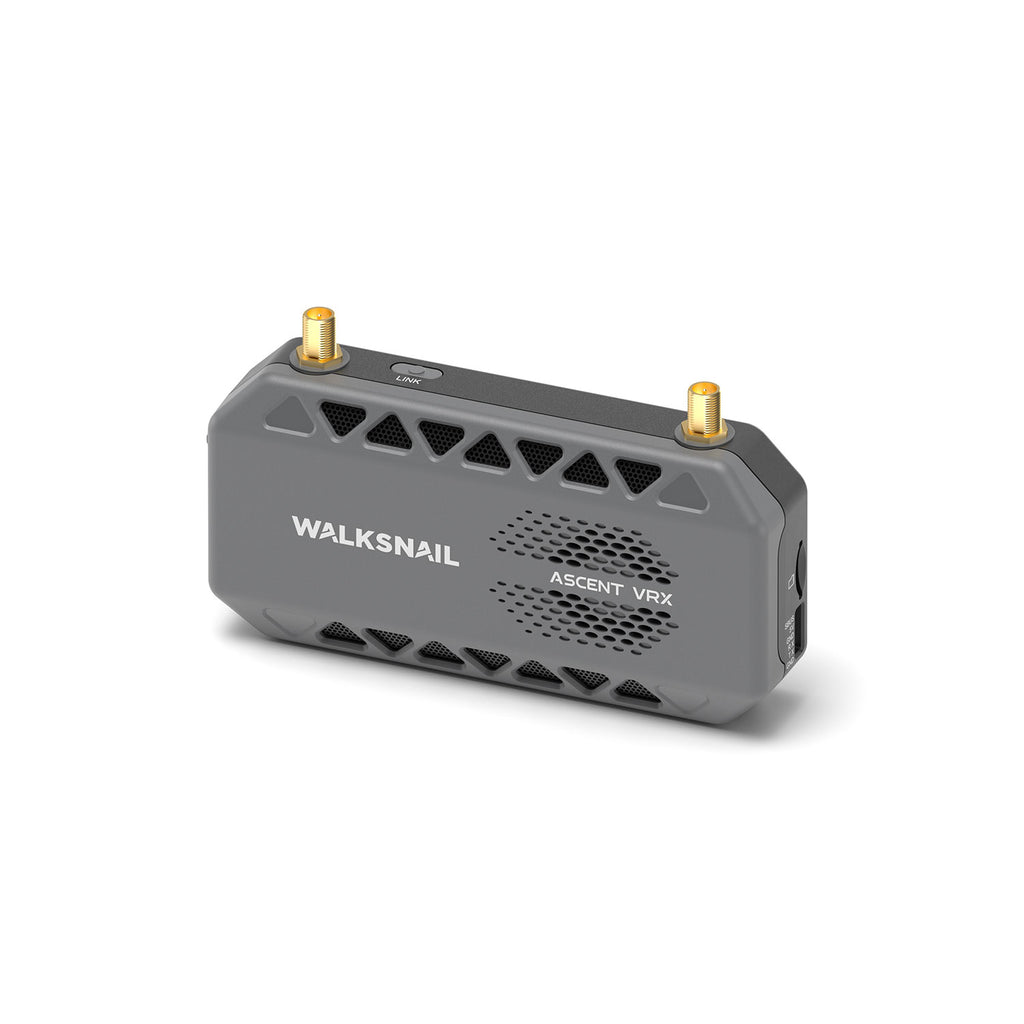

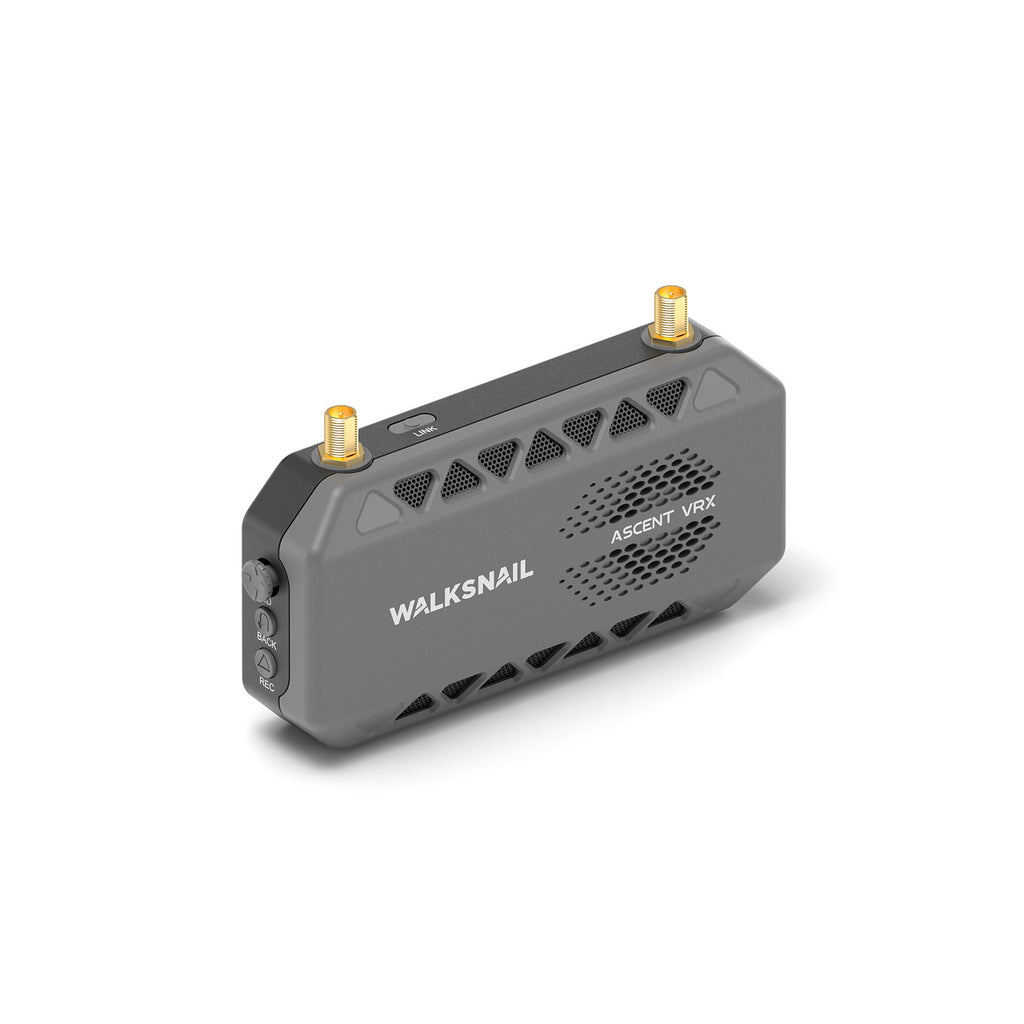

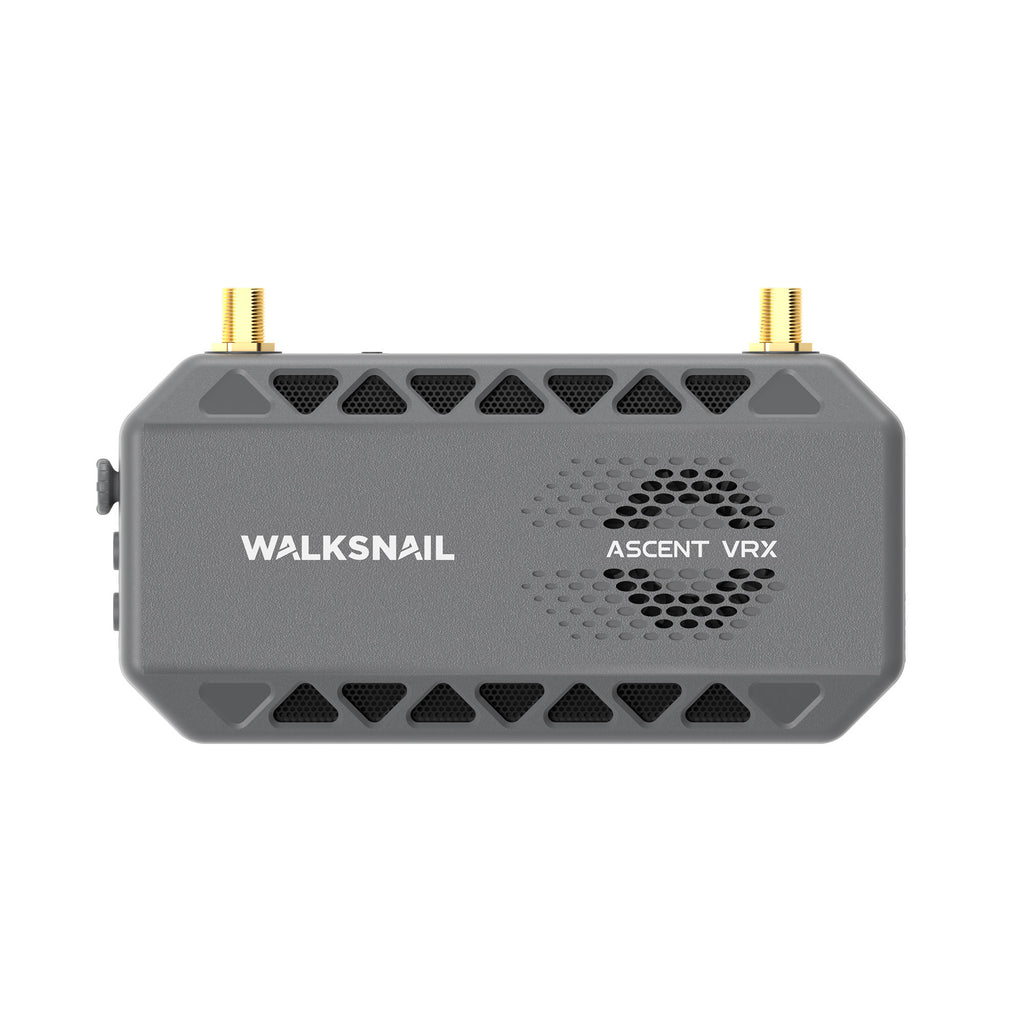

Walksnail Ascent FPV VRX
- Real-Time HD FPV Vision: Experience ultra-fast, zero-lag video with an end-to-end latency as low as 35ms. Supports high-frame-rate decoding at 1080P/60fps and 720P/120fps, ensuring a clear and smooth image for absolute control during high-speed and competitive flight.

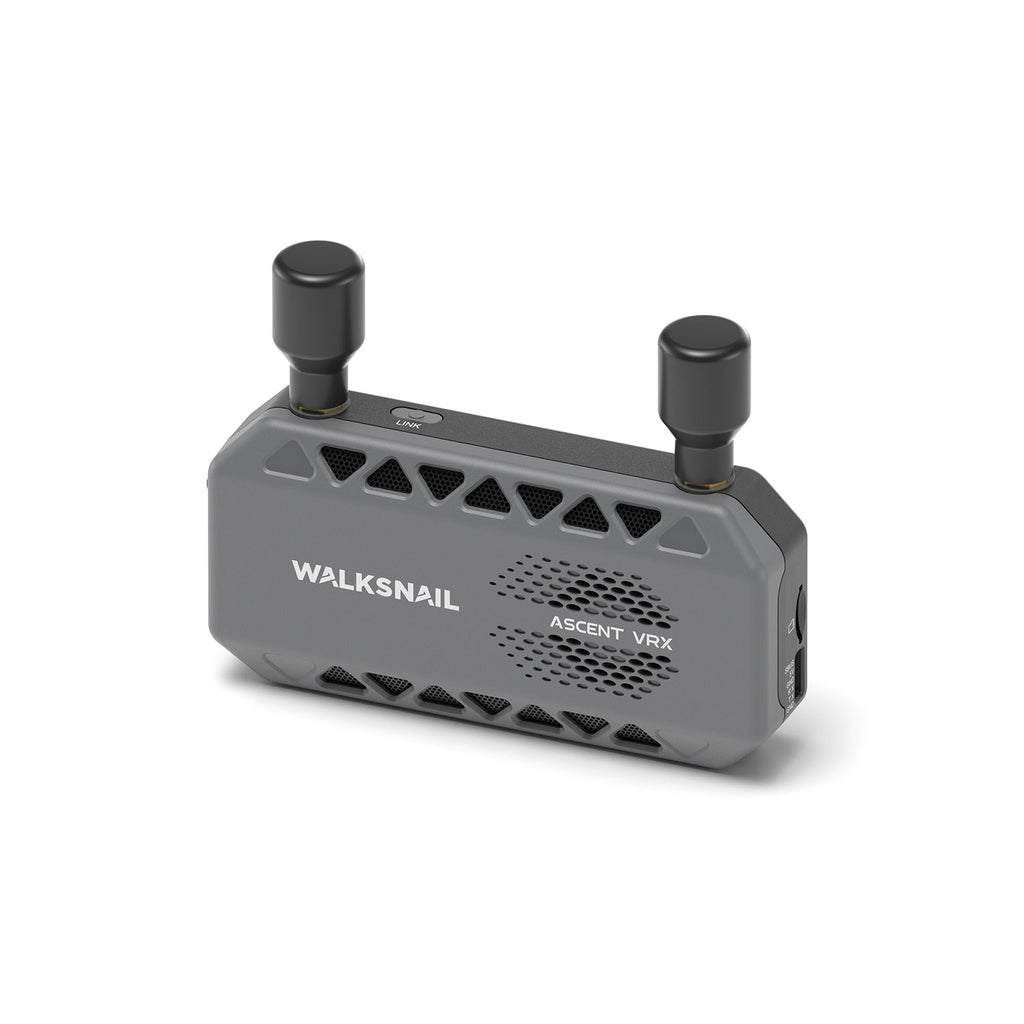

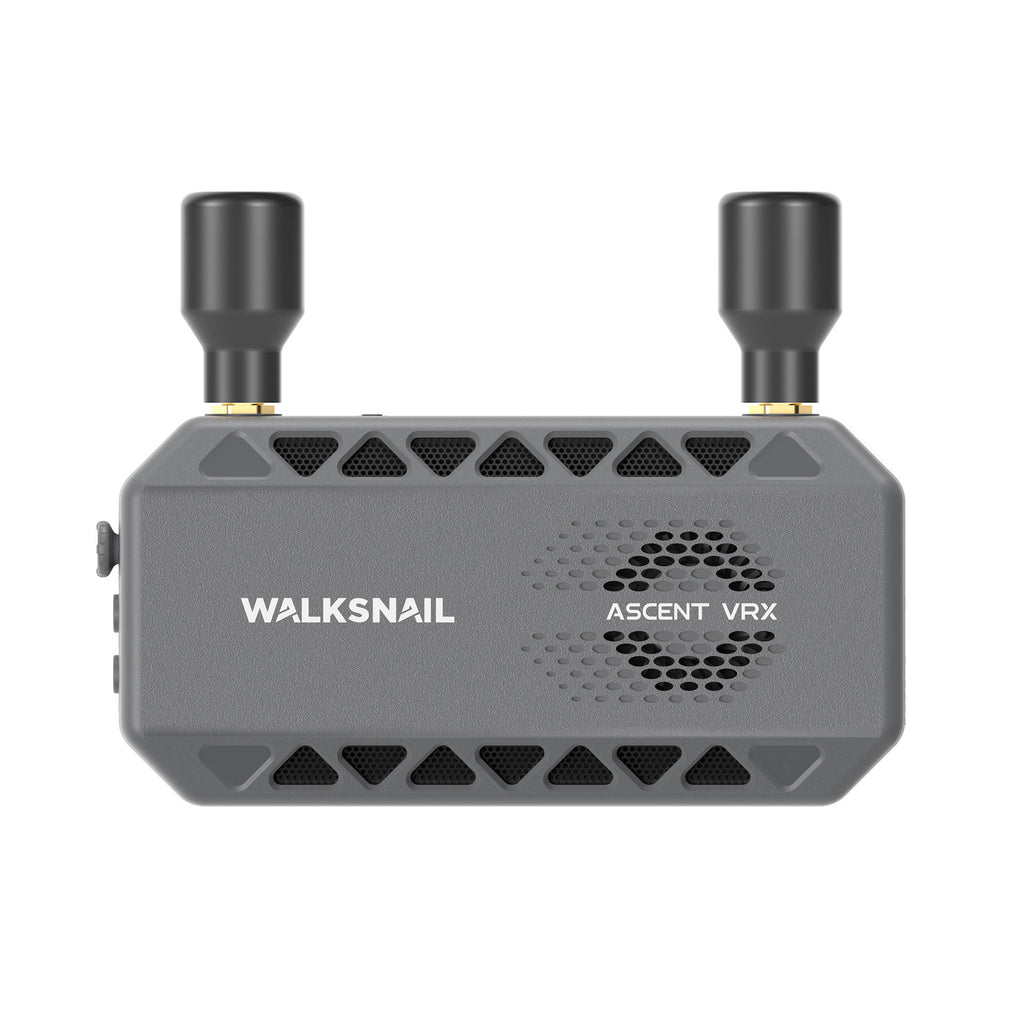

- Reliable Dual-Antenna Signal: Equipped with dual circularly polarized antennas, ensuring minimal signal loss and extreme reliability. Achieve stable transmission distances of 6 kilometers.
- HDMI Port & Plug-and-Play: Features an HDMI port for wide compatibility with all FPV goggles, monitors, and TVs. This allows for effortless multi-screen setup for teaching, sharing, and viewing, offering maximum freedom of connection.

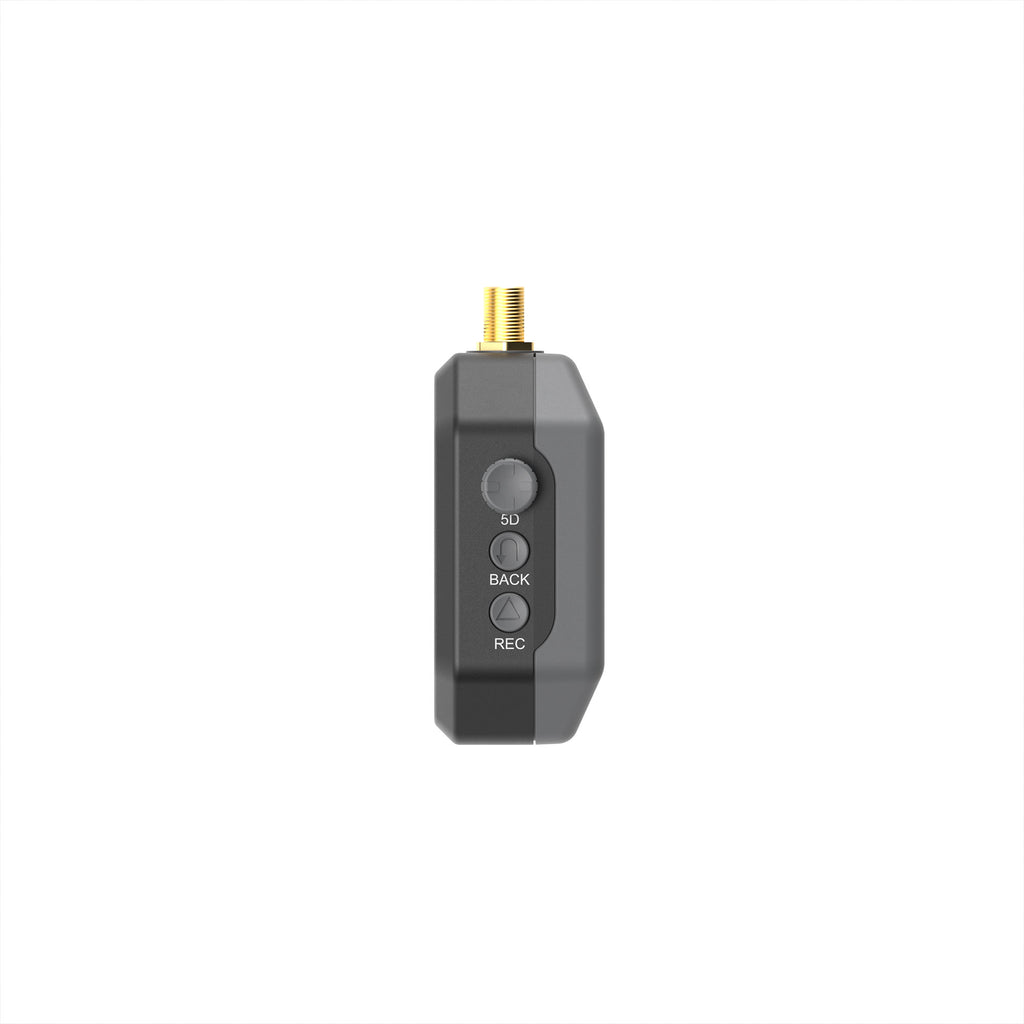

- OSD Customization & Real-Time Control: Supports Canvas Mode for seamless integration of Betaflight/INAV OSD. Pilots can adjust flight controller parameters in real-time via the remote, allowing for full cockpit customization and quick access to data.
- Easy to Carry & Efficient Storage: Eliminate external DVRs with the built-in SD card slot (up to 256GB) for one-click HD recording. The unit is designed for portability, weighing only 118g (excluding antennas), making it the perfect pocket-sized companion.
- Smart Frequency Hopping, Enhanced Signal Stability: Automatically switches to low-interference channels to reduce dropouts and keep video smooth—no manual tuning required.
Specifications.
- Name Ascent VRX
- Communication Frequency 5.725-5.829 GHz
- Transmitter Power(EIRP) FCC/SRRC:<30dBm, CE:<14dBm

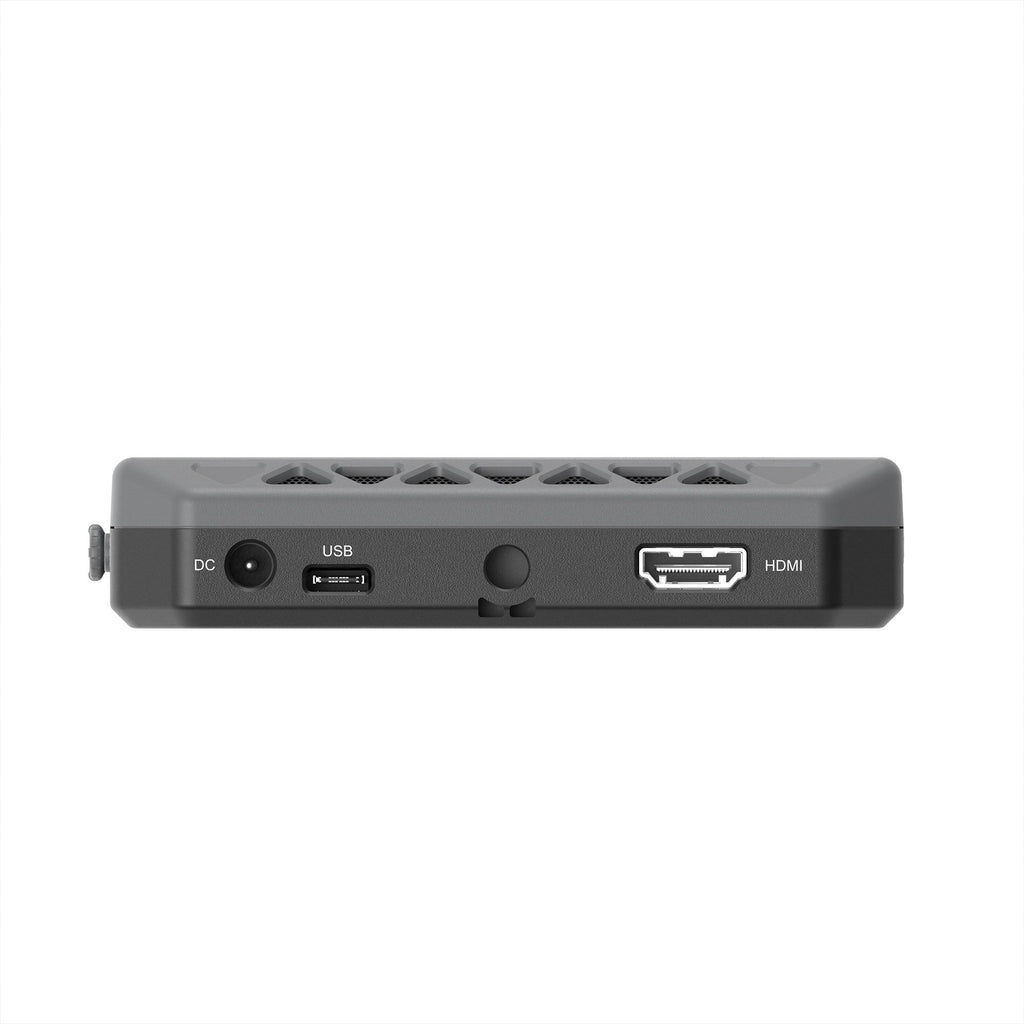

- l/O Interface HDMl, Micro SD Card, DC5.5*2.1mm SH1.0*6PIN, Type-C
- HDMI Out 1080p50fps, 1080p60fps, 720p50fps, 720p60fps, 720p100fps, 720p120fps
- Power Input 7.4~25.2V
- SD Card Support Micro SD 256G
- System Ascent HD system
- Bandwidth 5m/10m/20m/Auto
- Recording Format MP4 (H.264)
- Weight 118g
- Dimension 114.5*64*24mm
Includes
- 1x Ascent VRX
- 1x DC Power Cable
- 1x HDMI Cable
- 1x 3M Double-sided Adhesive
