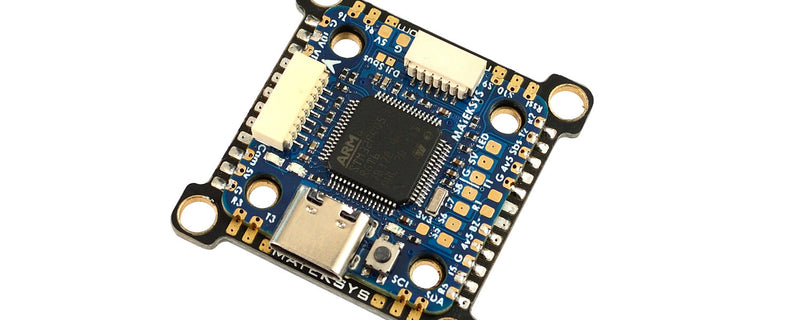

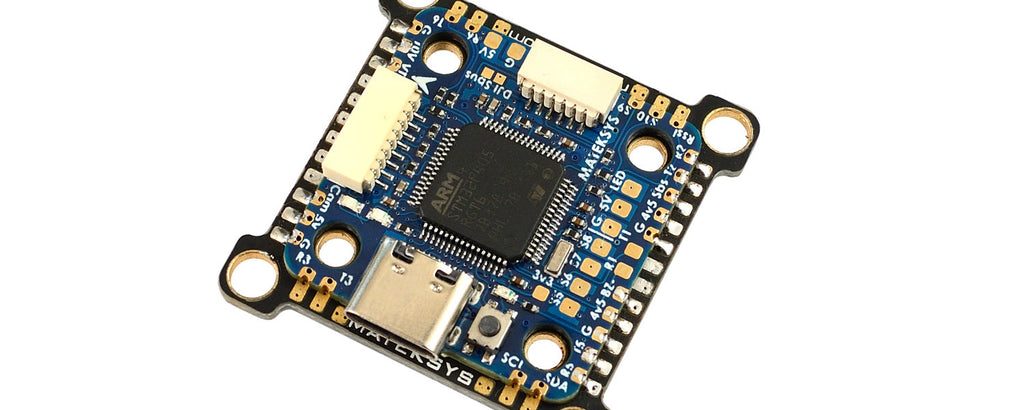

Matek F405-miniTE Flight Controller

Save 11%
MATEKSKU: F405-miniTE

Price:
Sale price$79.95 Regular price$89.95

Shipping calculated at checkout

Stock:
Only 1 unit left

Description

Looking to buy a MATEK F405-miniTE FLIGHT CONTROLLER in Australia? You've come to the right place. Any questions? please live chat us, we're here to help!

Check out our great range of Matek products here

The new features of F405-miniTE compared with F722-miniSE(EOL)

  • F405 has 1MB flash which can run with ArduPilot. even with INAV firmware, some features will be removed on F722 due to limited flash.
  • The advantage of F722 is all UARTs have builtin inversion which is not needed when CRSF protocol is widely used on new receivers.
  • Redesigned target MATEKF405TE support 8x bi-directional DSHOT.
  • Support DJI air unit PnP, and a 10V BEC for DJI OSD or analog VTX
  • Compared with F722-miniSE 8motors or 6motor+2servos, F405-miniTE support 8motors+3servos in INAV/BF multirotor mixer
  • InvenSense GEN3 IMU ICM42605

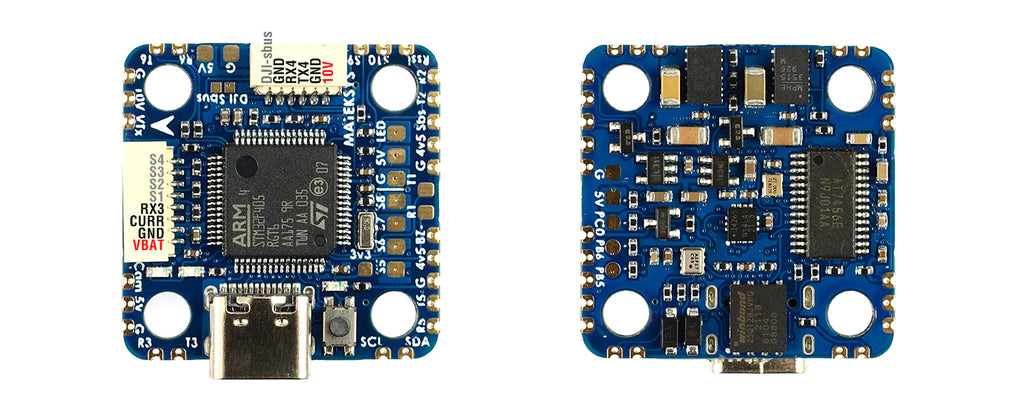

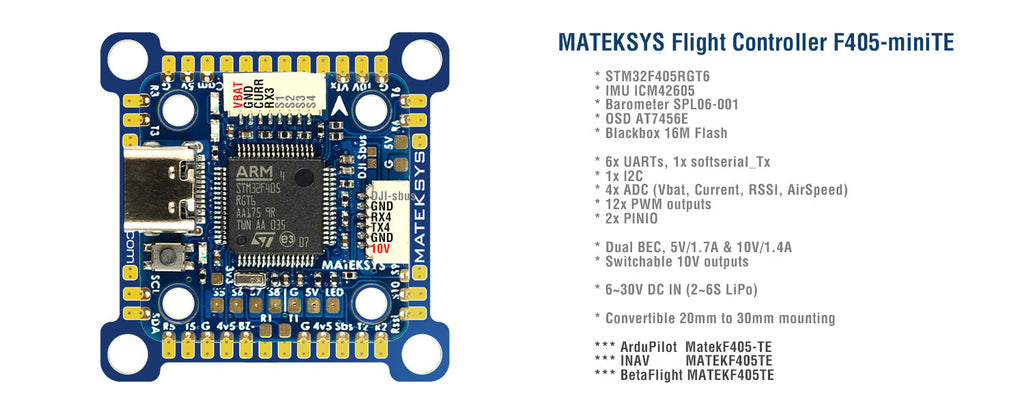

FC Specifications

  • MCU: STM32F405RGT6
  • IMU: ICM42605
  • OSD: AT7456E
  • Baro: Goertek SPL06-001 (I2C)
  • Blackbox: 16M-byte Flash memory
  • 6x UARTs, 1x Softserial_Tx option
  • 12x PWM outputs (8x Dshot)
  • 1x I2C
  • 4x ADC (VBAT, Current, RSSI, Airspeed)
  • 2x PINIO
  • 1x SH1.0_8pin connector (Vbat/G/Curr/R3/S1/S2/S3/S4)
  • 1x SH1.0_6pin connector for DJI FPV Air Unit
  • 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
  • Dual BEC, 5V 1.7A & 10V 1.4A
  • 10V output ON/OFF switchable
  • Convertible 20mm to 30.5mm mounting

Power

  • Input: 6~30V (2~S LiPo)
  • BEC: 5V 1.7A, Max.2A
  • BEC: 10V 1.4A for VTX or DJI Air Unit
  • For stable 10V output, input voltage should > 11V, when input voltage =<11V, output = 90% input voltage.
  • Battery Voltage Sensor: 1K:20K (INAV scale 2100, BF scale 210)
  • No Current Sensor built-in, supports external current sensor of PDB/4in1

Firmware

  • ArduPilot: MatekF405-TE
  • INAV: MATEKF405TE (not available in INAV configurator for now)
  • BetaFlight: MATEKF405TE

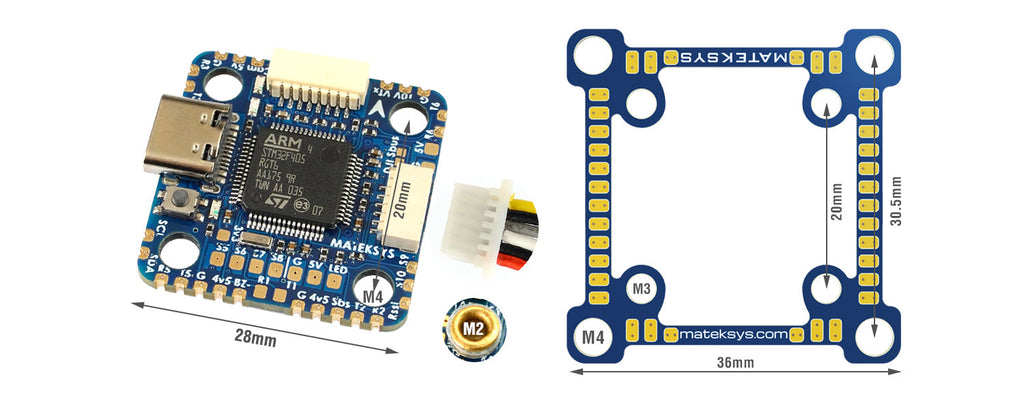

Physical

  • Mounting
    • 20 x 20mm/Φ3mm with Silicon Grommets
    • 20 x 20mm/Φ2mm with Silicon & Brass Grommets
    • 30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets
  • Dimensions: 28 x 28 mm
  • Weight: 5g

Including

  • 1x FC F405-miniTE
  • 1x 20mm to 30.5mm conversion plate(blue PCB)
  • 6x Silicon grommets M4 to M3
  • 6x Brass grommets M3 to M2
  • 1x SH1.0_8pin cable 5cm (including 2x 8pin connectors) for 4in1 ESC
  • 1x SH1.0_6pin to GH1.25_8pin cable 8cm for DJI Air Unit
