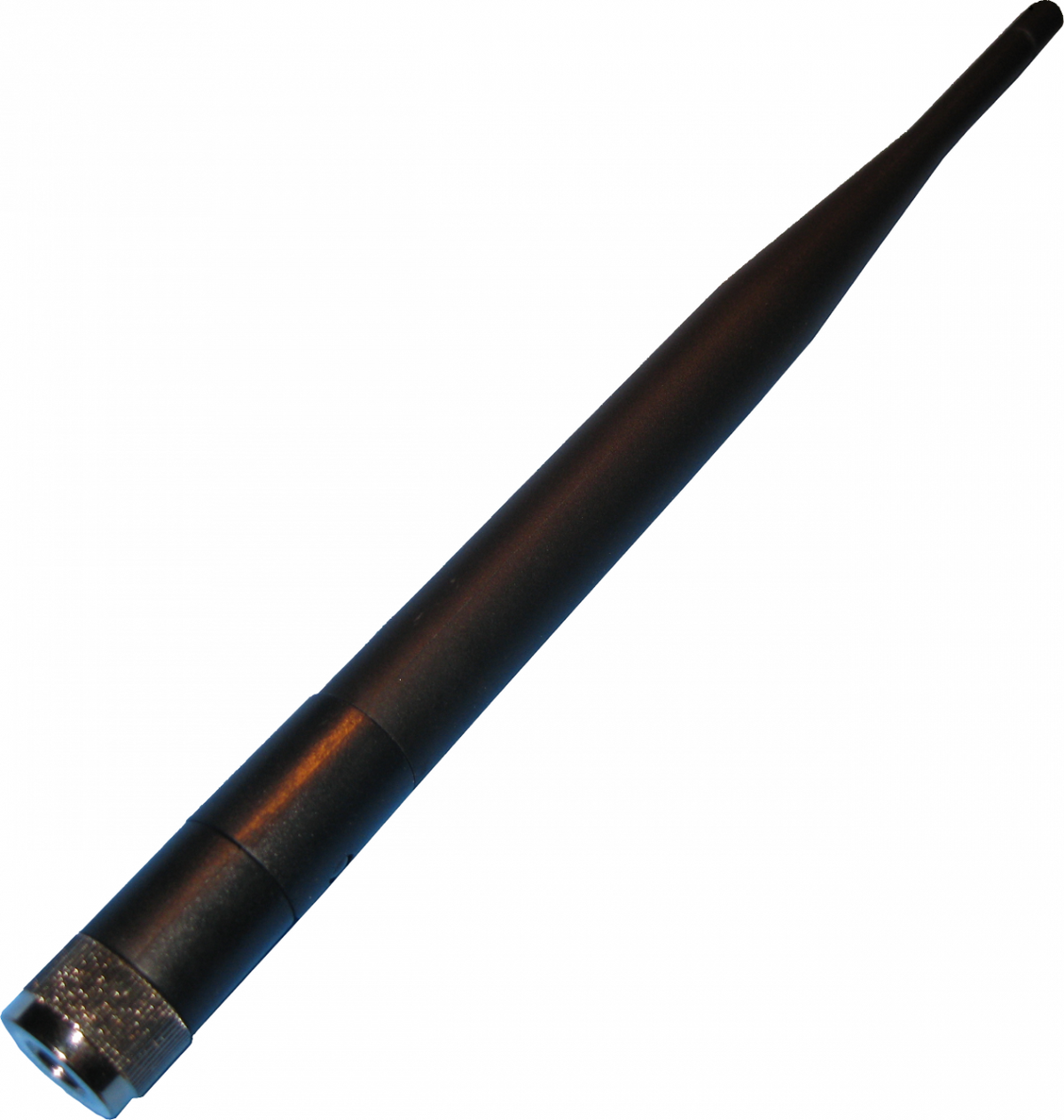

This is a quality 2.4-2.5GHz dipole antenna with an industry standard RPSMA connector.
It is a collinear dipole antenna with a base connector that can swivel up to 90 degrees.
It is well suited as a higher gain replacement antenna for 2.4GHz systems such as:
- FrSKY 2.4GHz radio control transmitters (requires sma to sma adaptor for some units with extra plastic at the top of the sma connector)
- 2.4GHz Wi-Fi (802.11b/g/n)
- 2.4GHz XBee
- Other 2.4GHz transceivers
- Frequency range: 2.4-2.5GHz
- Gain: 5 dBi

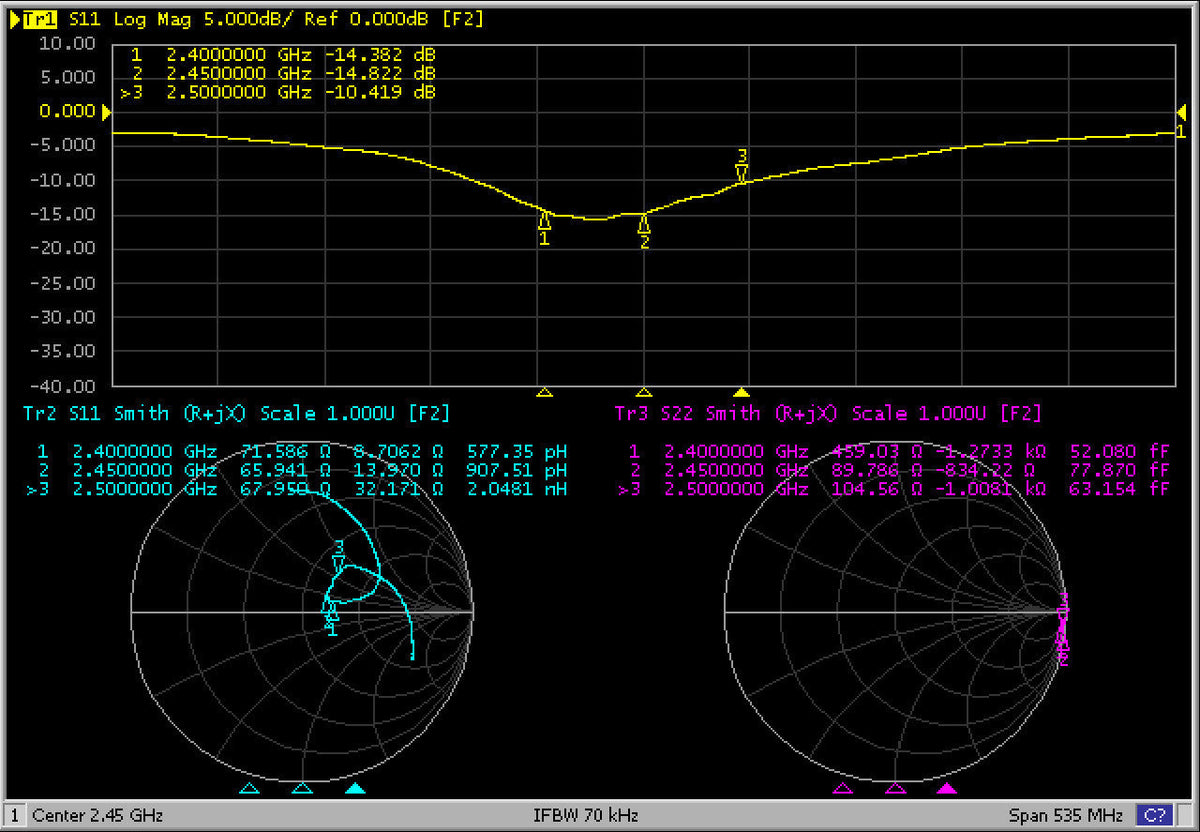

- Return loss: <-10dB
- Impedance: 50 Ohm
- Polarisation: Vertical
- Size: 200mm long, 13mm diameter
- Weight: 27g
