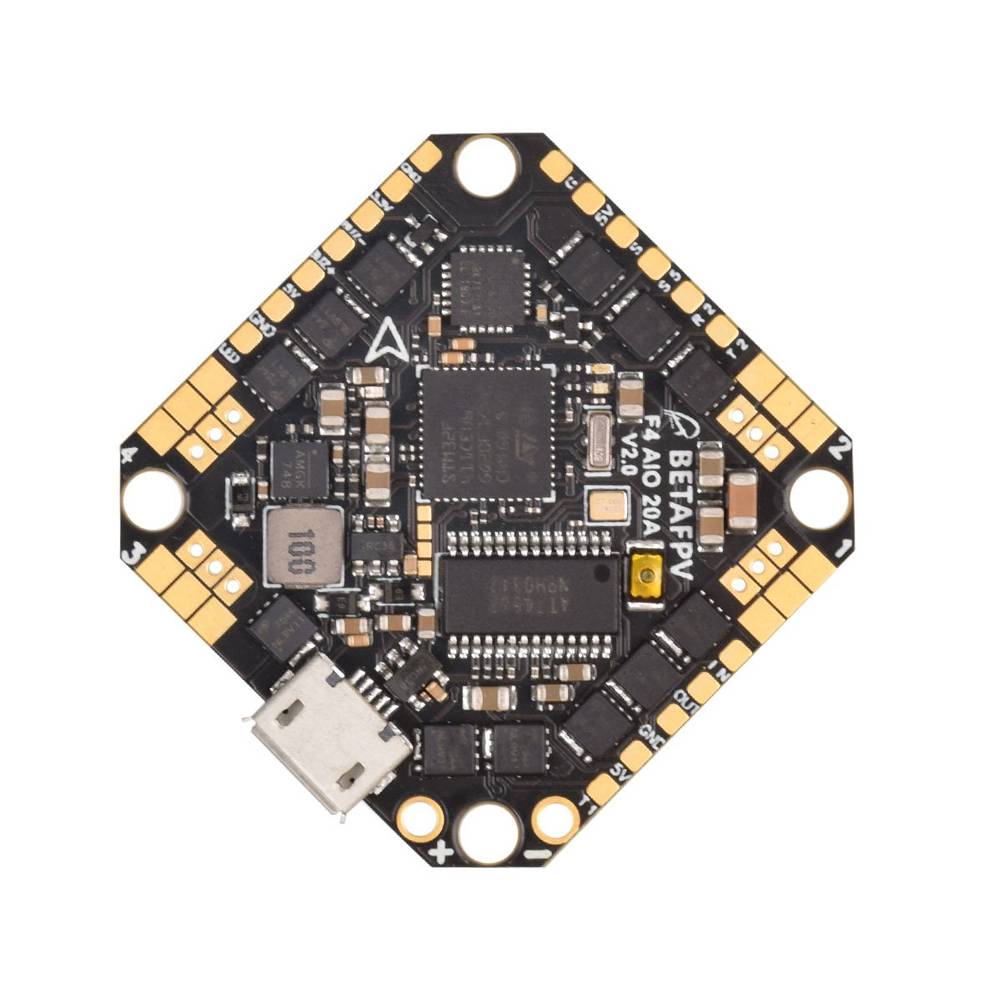

BETAFPV Toothpick F4 2-4S 20A AIO Brushless V2.0 Flight Controller (BLHeli_S)

Save 33%
BETAFPVSKU: BFPV-AIO-20A

Price:
Sale price$59.95 Regular price$90

Shipping calculated at checkout

Stock:
Contact Us

Description

About this product

For a new generation of toothpick drone, the AIO Brushless FC can handle 20A continuous current (25A burst), which is the first 20A All-in-one FC on the market. Compared to FC / ESC Stacks design, this board provided with massive levels of performance capability while still maintain ultralight only 6.63g. Breaking through the limit of toothpick power, exploring more possibilities in 3''-4'' drones. This board is your best choice to DIY your own toothpick drone that is tailored to your requirements.

Features

  • This new board can handle 20A continuous current(25A burst), which is the first 20A All-in-one FC on the market
  • Comes with 4*Motor Pluggable Pins and Not Pre-solder in default, fits your needs of self-assembly best
  • Compatible with 120Xmotor, 130X, and140X motors
  • USB port is mounted on the side, you have more possibilities of mounting it while still maintaining access to the USB port
  • All of the solder pads are at the edge of FC, which is a convenience to solder
  • Double-sided motor solder pad. Pins pad and wires pad are both built-in for motors connection
  • Integrated with a Betaflight MATEKF411 processor FC, Betaflight OSD, F4 MCU, and 20A ESC, support 2-4S battery

Comparison of Toothpick 12A AIO FC and Toothpick 20A AIO FC

Parts Updated

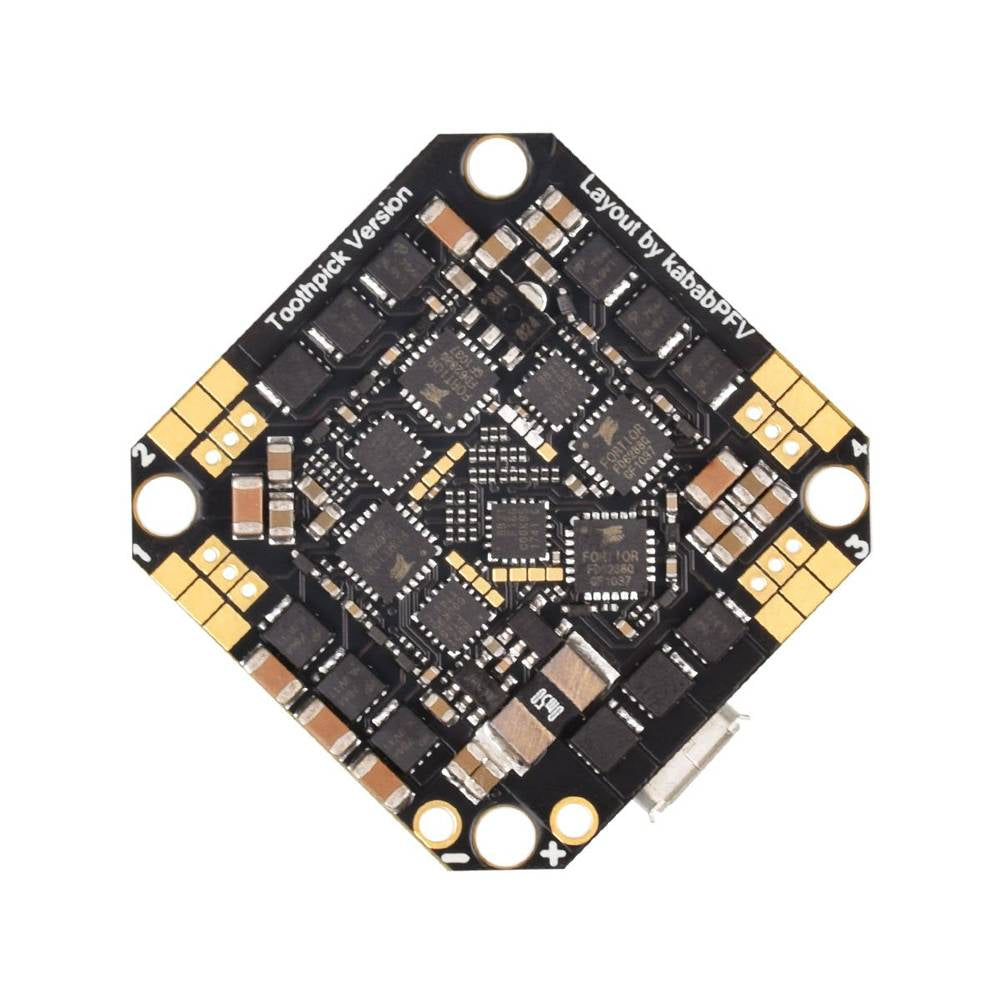

Integrated 12 single N-channel MosFETs chips on the 20A AIO FC board, which has a lower inner resistance. 12A AIO FC board adopts 6 dual MosFETs chips instead. Current sensor included.

Double-sided Motor Solder Pad

Support connect with motors via connectors or solder directly

Mounting Pattern and Real Holes of Mounting Holes

Specification of FC

  • CPU: STM32F411CEU6 (100MHZ)
  • Six-Axis: MPU6000 (SPI connection)
  • Size: 32.5*32.5mm (26.5mm mounting holes)
  • Firmware version: Betaflight MATEKF411 (MK41)
  • OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
  • Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
  • Support programmable LED like WS2812 etc
  • Built-in current sensor

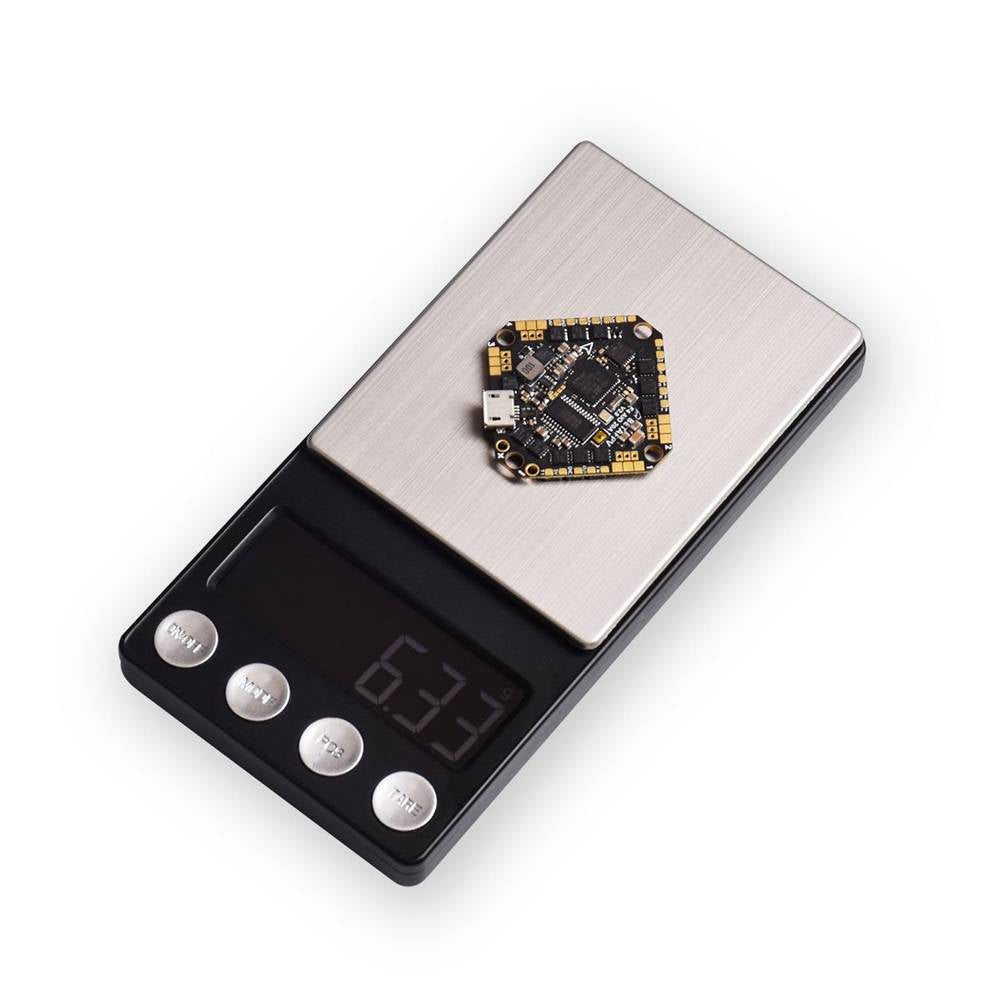

  • Weight: 6.63g

Specification of ESC

  • Support BLheli/BLHELI_S suite Pass-through ready
  • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
  • Input voltage: 2S-4S Lipo
  • Continuous current: 20A
  • Peak current: 25A
  • Firmware: BLHELI_S
  • Motor Connectors: 1.25mm header pins connector

Diagram for Toothpick F4 20A AIO FC

Includes

  • 1 x Toothpick F4 20A AIO 2-4S brushless flight controller
  • 1 x Cable Pigtail (XT30)
  • 4 x M2x10mm screws
  • 4 x M2 nuts
  • 4 x Anti-vibration rubber dampers
  • 4 x Motor Pluggable Pins
