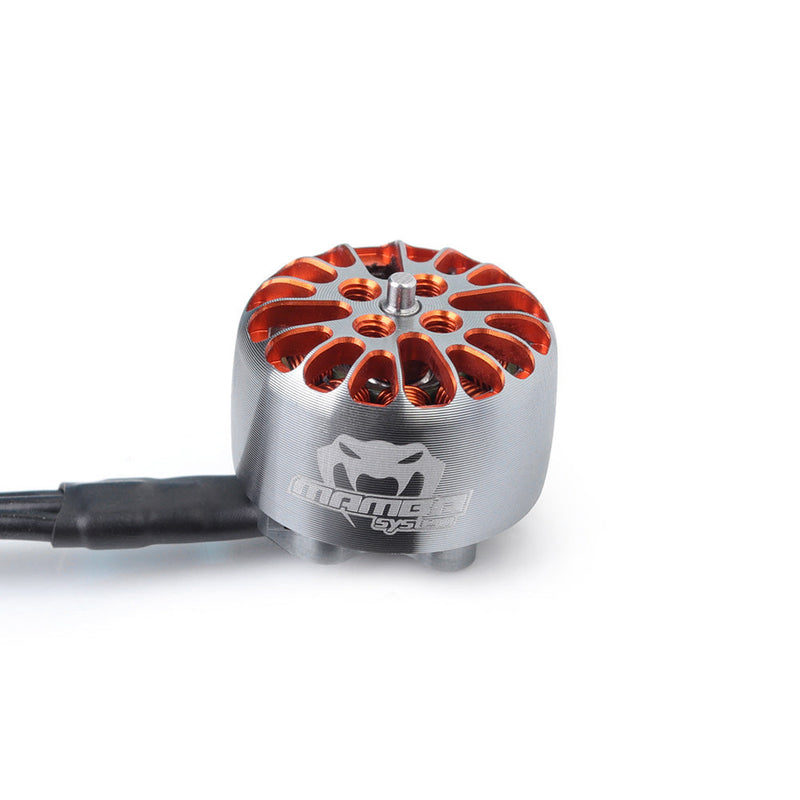

DIATONE MAMBA TOKA 1206 SERIES RACING MOTOR

DIATONESKU: JH60179

KV: 3600KV
Price:
Sale price$22.90

Shipping calculated at checkout

Stock:
In stock (10 units), ready to be shipped

Description

Motor Performance Table

MAMBA TOKA 1206 2450KV Racing motor

  • Overall Dimension:Φ17×13.4mm
  • prop mounting shaft diameter:1.5mm
  • Installation hole position: 9×9mm,M2
  • Prop: 2inch~3inch
  • Bearing:5*2*2.5
  • Shaft Diameter:2mm
  • Lead Wire Size:24AWG×150mm
  • Configuration:9N12P
  • Magnet Wire: 240℃ Enameled Wire
  • Stator Diamter:12mm
  • Stator Height:6mm
  • Rated Voltage:4~6S (16.8V~25.2V)
  • Peak Current: 5.8A
  • ldle Current:6V/0.4A
  • Maximum Power: 160W
  • Internal Resistance:456Ω

MAMBA TOKA 1206 3600KV Racing motor

  • Overall Dimension:Φ17×13.4mm
  • prop mounting shaft diameter:1.5mm
  • Installation hole position:9×9mm,M2
  • Prop: 2inch~3inch
  • Bearing:5*2*2.5
  • Shaft Diameter:2mm
  • Lead Wire Size:24AWG×150mm
  • Configuration:9N12P
  • Magnet Wire: 240℃ Enameled Wire
  • Stator Diamter:12mm
  • Stator Height:6mm
  • Rated Voltage:3~4S (12.6V~16.8V)
  • Peak Current: 10A
  • ldle Current:6V/0.4A
  • Maximum Power: 160W
  • Internal Resistance:236Ω

MAMBA TOKA 1206 4500KV Racing motor

  • Overall Dimension:Φ17×13.4mm
  • prop mounting shaft diameter:1.5mm
  • Installation hole position:9×9mm,M2
  • Prop: 2inch~3inch
  • Bearing: 5*2*2.5
  • Shaft Diameter:2mm
  • Lead Wire Size:24AWG×150mm
  • Configuration:9N12P
  • Magnet Wire: 240℃ Enameled Wire
  • Stator Diamter:12mm
  • Stator Height:6mm
  • Rated Voltage:3~4S (12.6V~16.8V)
  • Peak Current: 10.7A
  • ldle Current:6V/0.6A
  • Maximum Power: 128W
  • Internal Resistance:168Ω

MAMBA TOKA 1206 6000KV Racing motor

  • Overall Dimension:Φ17×13.4mm
  • prop mounting shaft diameter:1.5mm
  • Installation hole position:9×9mm,M2
  • Prop: 2inch~3inch
  • Bearing: 5*2*2.5
  • Shaft Diameter:2mm
  • Lead Wire Size:24AWG×150mm
  • Configuration:9N12P
  • Magnet Wire: 240℃ Enameled Wire
  • Stator Diamter:12mm
  • Stator Height:6mm
  • Rated Voltage:2~3S (8.4V~12.6V)
  • Peak Current: 14.5A
  • ldle Current:5V/0.7A
  • Maximum Power: 174W
  • Internal Resistance:168Ω

MAMBA TOKA 1206 7500 KV Racing motor

  • Overall Dimension:Φ17×13.4mm
  • prop mounting shaft diameter:1.5mm
  • Installation hole position:9×9mm,M2
  • Prop: 2inch~3inch
  • Bearing: 5*2*2.5
  • Shaft Diameter:2mm
  • Lead Wire Size:24AWG×150mm
  • Configuration:9N12P
  • Magnet Wire: 240℃ Enameled Wire
  • Stator Diamter:12mm
  • Stator Height:6mm
  • Rated Voltage:2~3S (8.4~12.6V)
  • Peak Current: 14.3A
  • ldle Current:4V/0.95A
  • Maximum Power: 114W
  • Internal Resistance:76Ω
