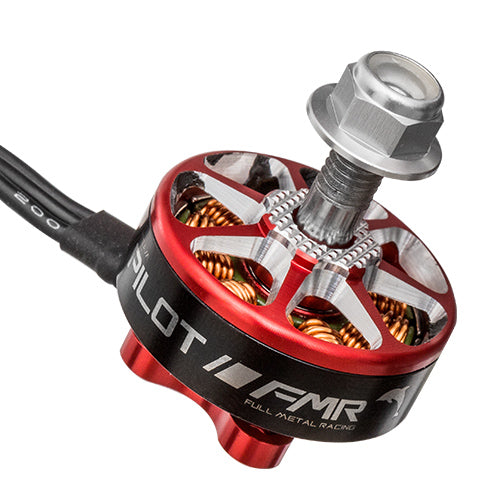

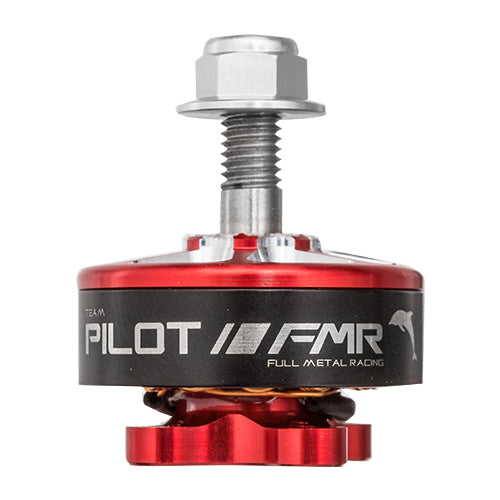

FMR F25 NAKED 2205 2500KV V2 - (1pcs)

  • $16.95

Add to Wishlist

FMR brings you a solid new version of our workhorse motor at a very reasonable price!

With active cooling fins, 5mm hollow stainless steel shaft for extra strength, N52H magnets, naked bottom for less weight, screw in shaft for easy maintenance and of course extra dolphin power, these bad boys won't break the bank but still give great bang for buck.

Features:

  • N52H Magnets
  • 99.99 Oxygen Free Copper
  • Stainless Steel Hollow shaft
  • Screw style bell (no circlip)

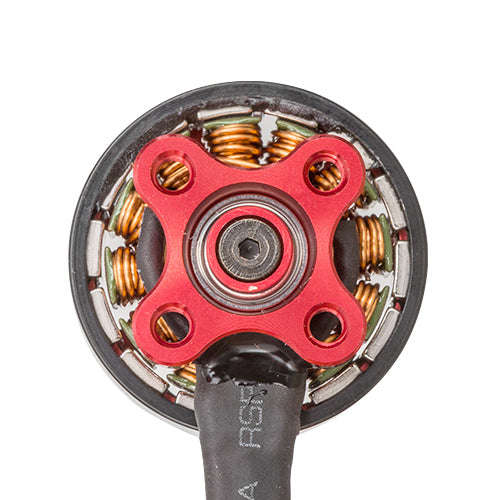

  • Naked bottom

Specifications:

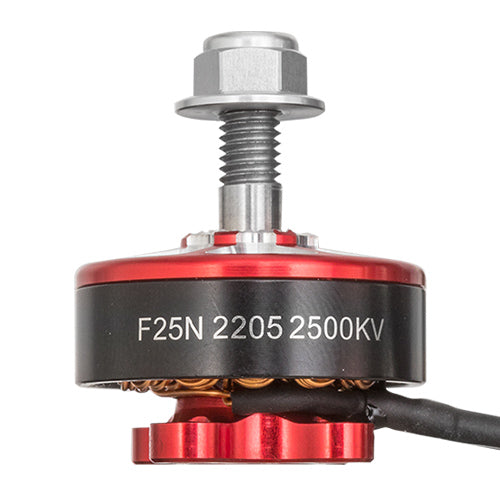

  • Model: FMR F25 2205 2500KV
  • Stator diameter: 22mm
  • Stator thickness: 5mm
  • Configuration 12N14P
  • KV (rpm/volt): 2500kv
  • Shaft diameter: 5mm
  • Current: 0.9A/10V
  • Internal resistance: 45mΩ
  • Max pull: 1100g
  • Max power: 473W
  • No. of Cells: 3-4S
  • Recommended ESC: 20-30A

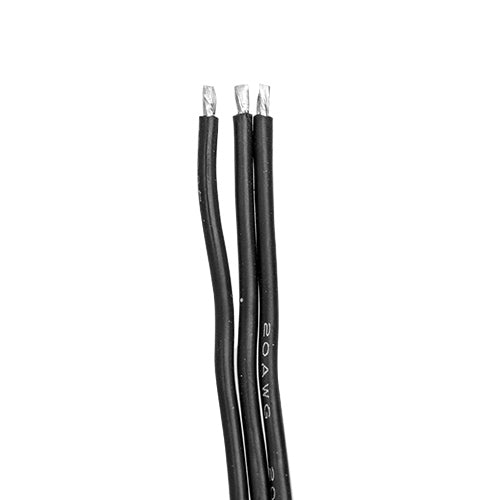

  • Wire Length: 120mm
  • Size: 32.8 * 27.7mm
  • Weight: 33g


Package Includes:

  • 1 x FMR F25 2205 NAKED 2500KV Brushless Motor

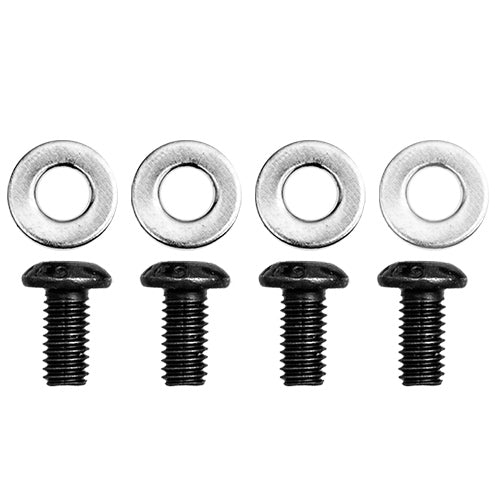

  • 1 x Motor Accessory Set
