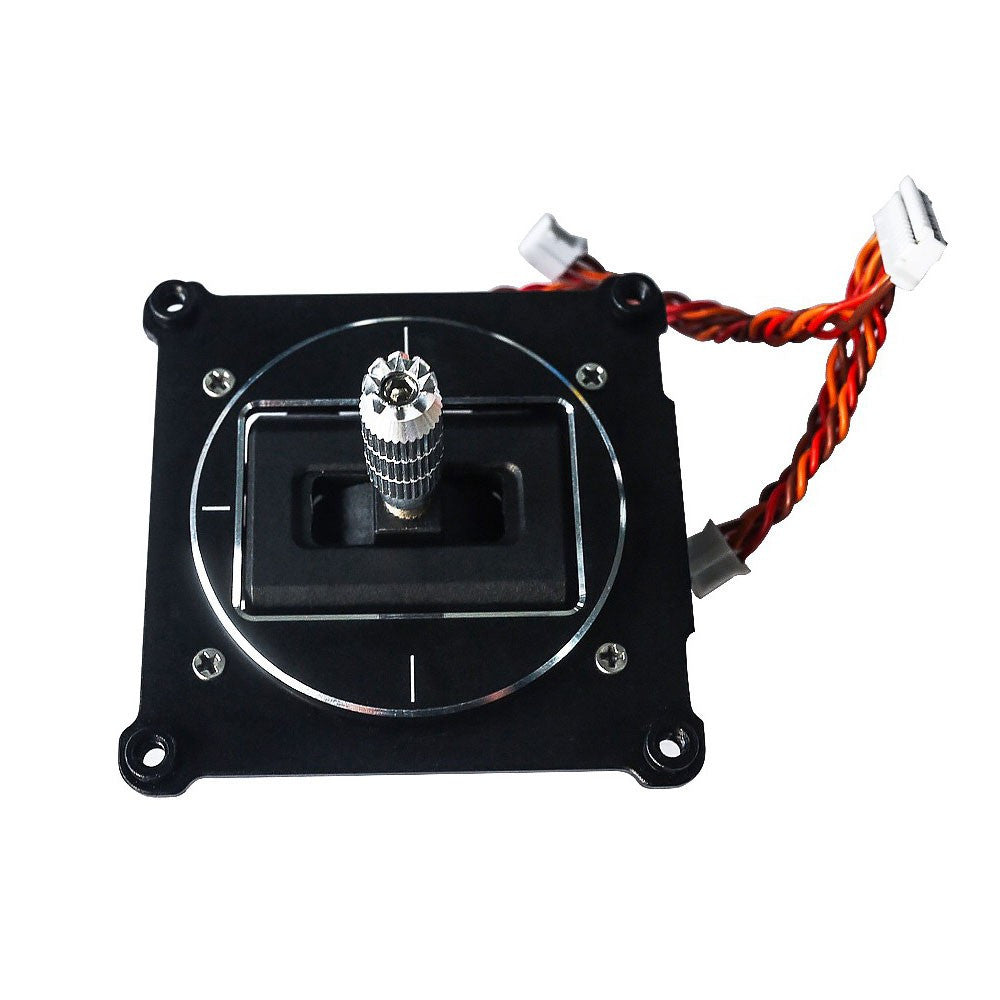

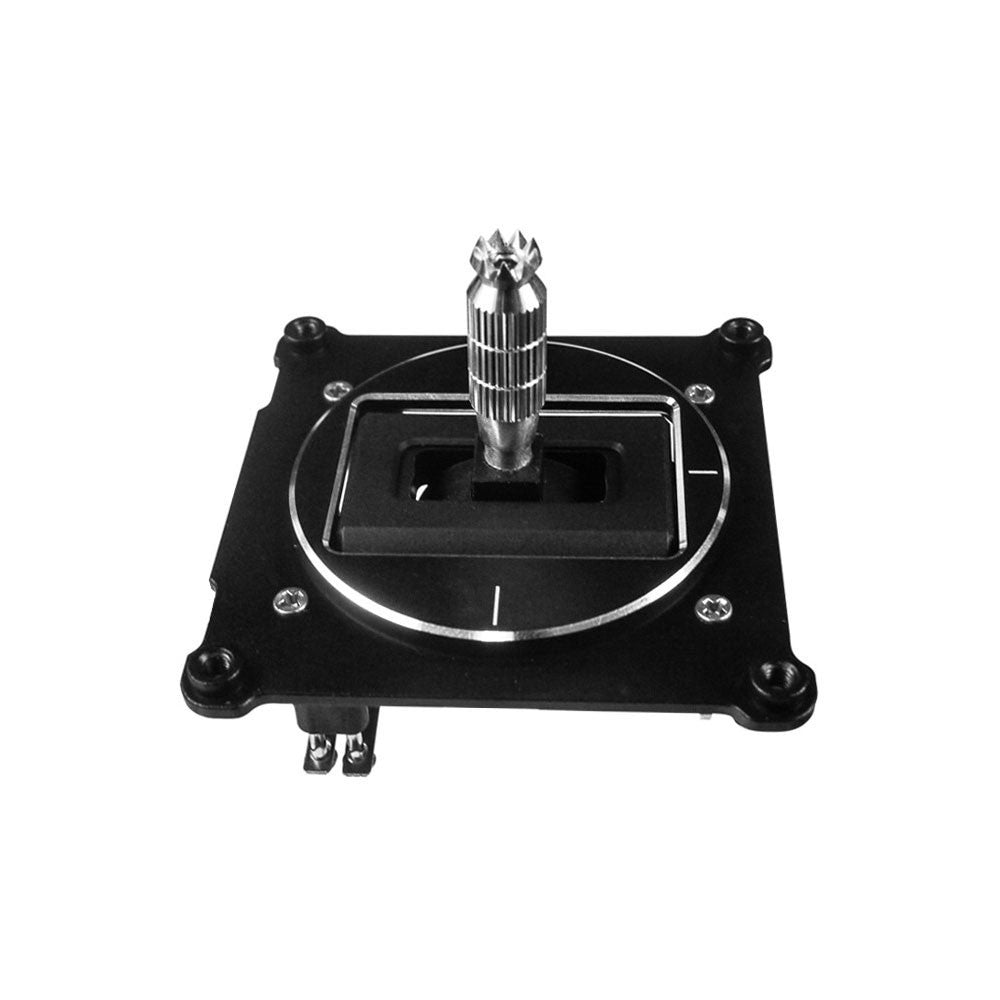

FrSKY M9 Hall Sensor Gimbal For Taranis X9D & X9D Plus (1pcs)
Upgrade your Taranis X9D with this plug-n-play high resolution M9 Gimbal from FrSky. The highly sensitive Hall sensors will not wear out quickly. It has an extremely smooth feel with the quad ball-bearings and the metal outer construction. Thicker 4mm stick ends give you a solid link to your controls. Fully adjustable tension and easily disable the self centering axis with one screw. This is a must have accessory for achieving those precision flight maneuvers.
Please note: Purchase is for 1 x Gimbal
ETA: Mid to late April 2017. please note this is a pre-order and any other items ordered in the same shipment including the M9 gimbal will be held and stock reserved until the gimbals arrive. Orders cannot be split shipped.
- Hall sensor
- 4 ball-bearings
- Adjustable tension
- Can be enable or disable self centering on both axis and ratcheting on the Y axis
- Supply Voltage (VCC): DC 3.0 ~ ±0.5V
- Sensitivity: 2.50 mV/G
- Linear Output Voltage Range:
- 0.1 ~ （ VCC +0.1） V
- Quiescent Output (TA = 25°C, B = 0 G): 0.5 × VCC
- Noise (no load): ≤40mVpp
