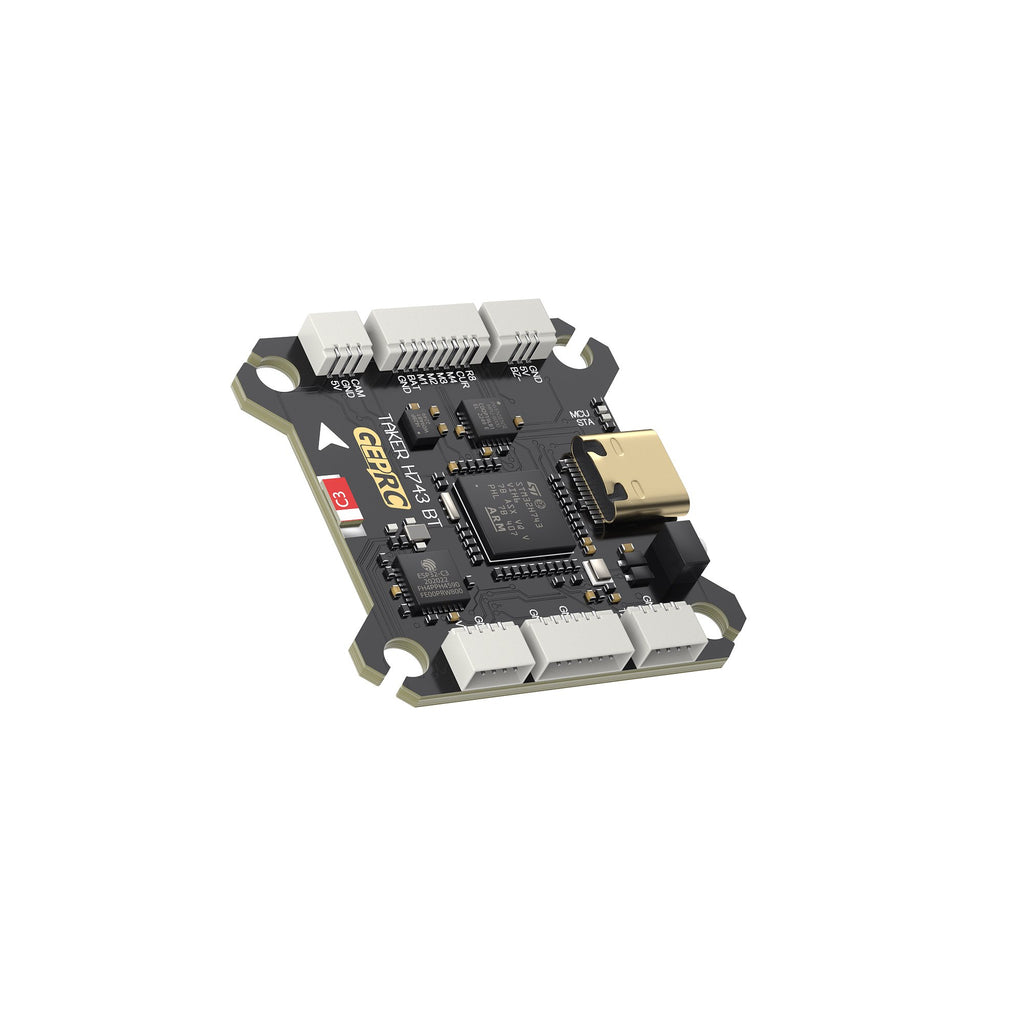

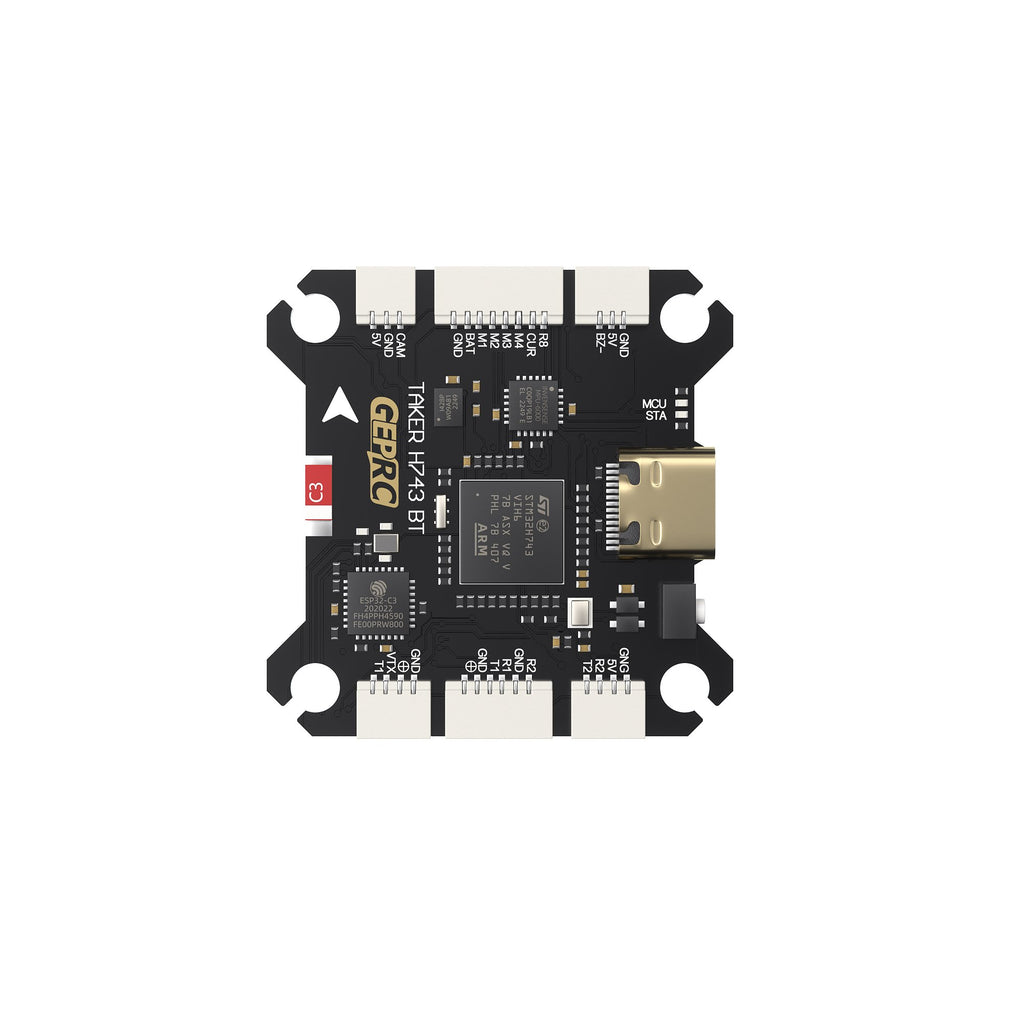

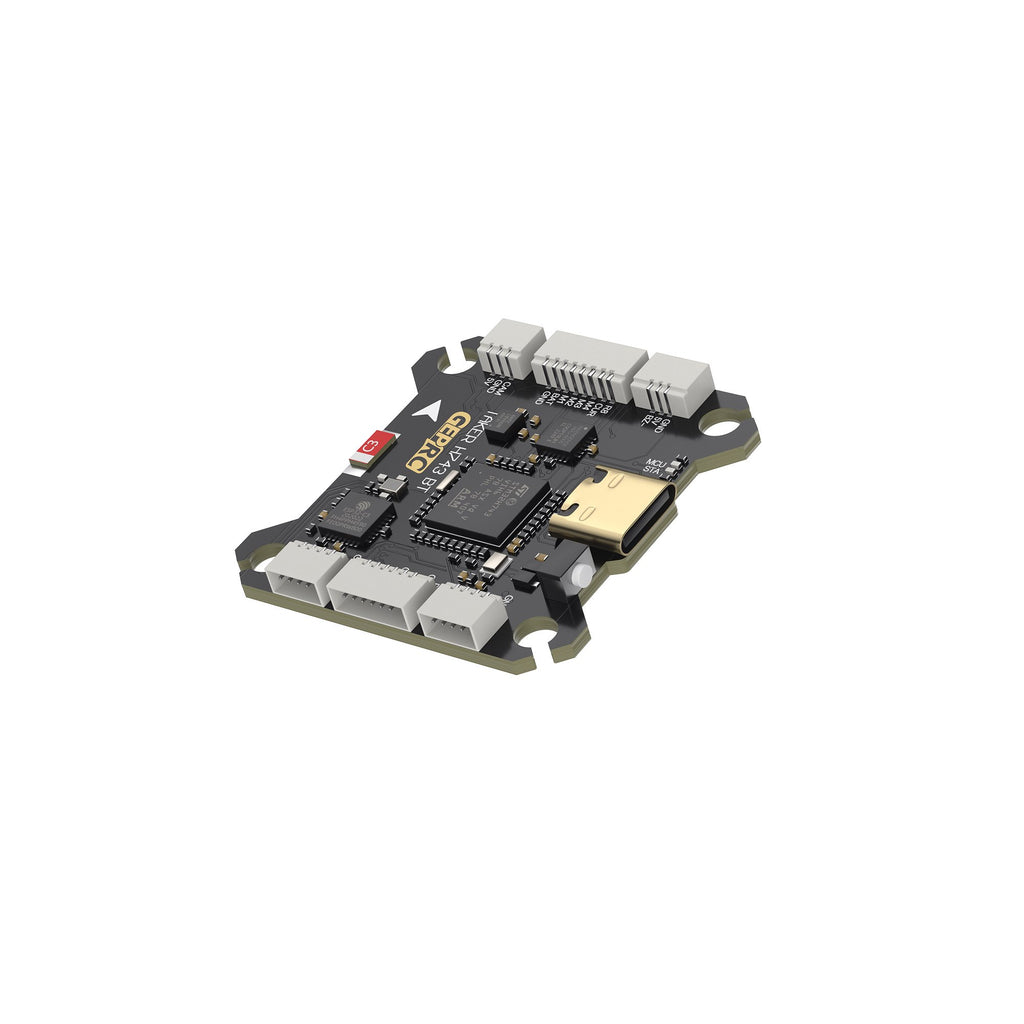

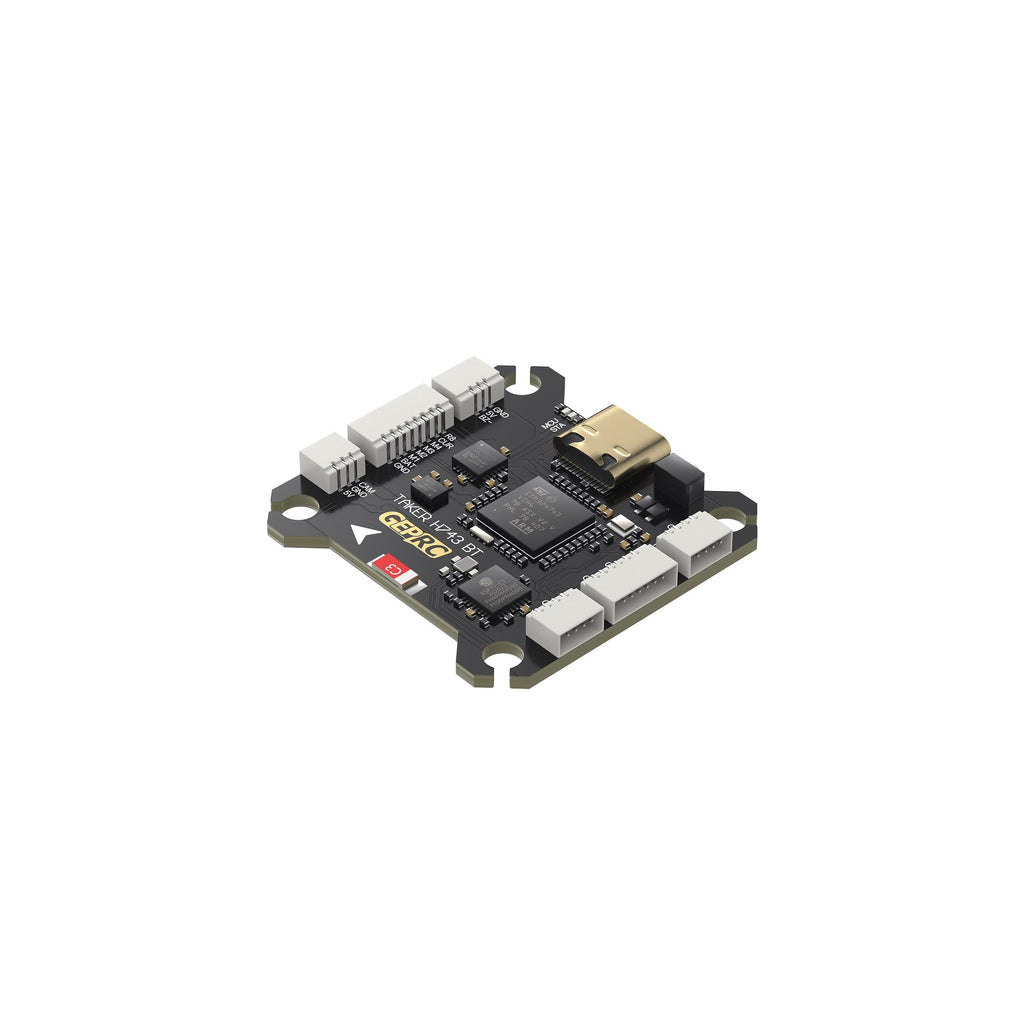

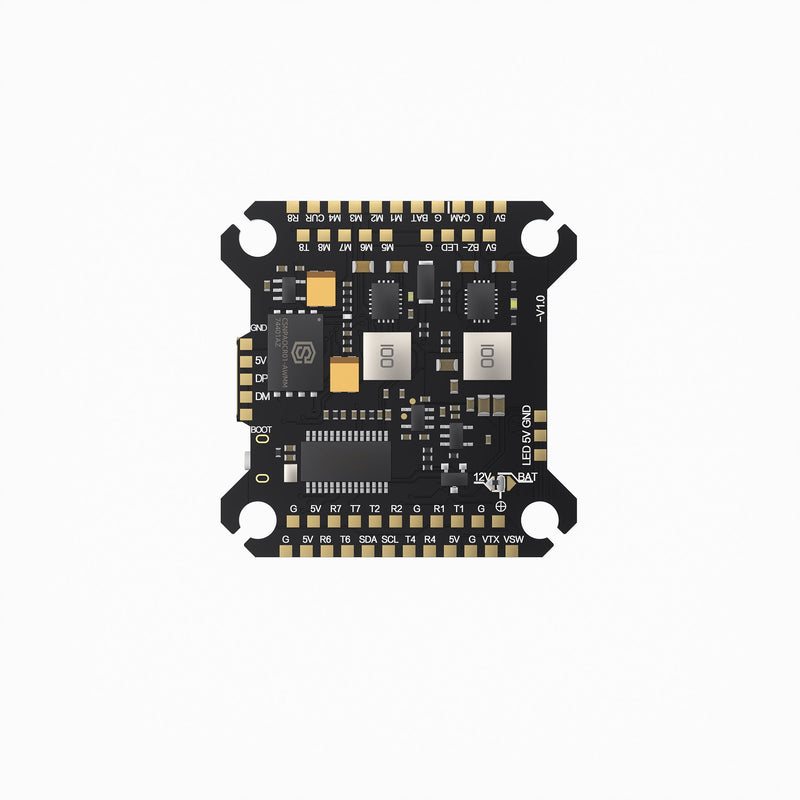

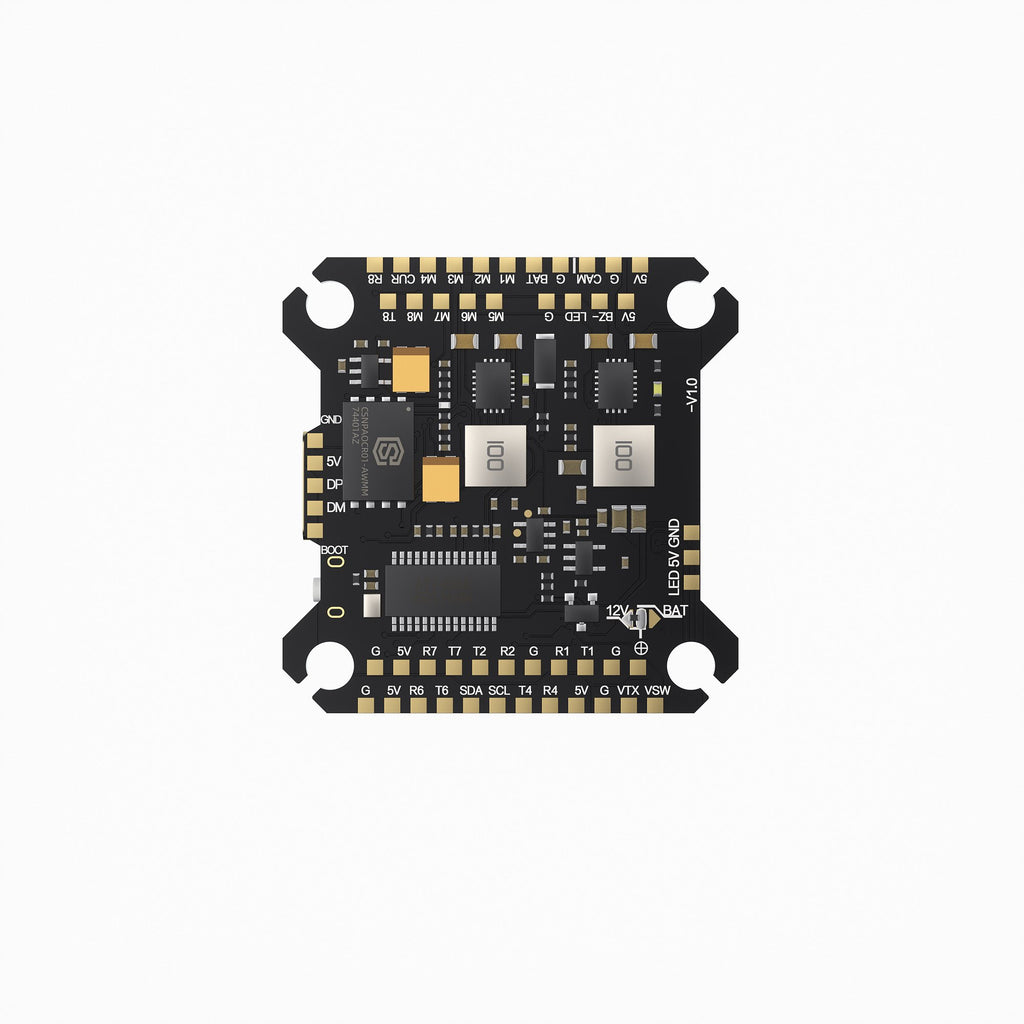

GEPRC TAKER H743 30x30 BT Flight Controller

Features

1. Adopts the high-performance STM32H743 as the main controller
2. Equipped with MPU6000 and 42688-P dual gyroscopes
3. 512M of black box storage
4. Bluetooth parameter tuning
5. Integrated LC filter
6. Upgraded type-C USB interface
7. Direct plug-in compatibility with DJI Air Unit
8. Integrated Barometer
9. Features 7 groups of UART
10. 12V@2.5A + 5V@3A dual independent BEC
11. Offers multiple firmware options

Specifications

• MCU: STM32H743
• IMU: MPU6000 + ICM42688-P(dual gyro)
• Air Unit Connection: Directly plugs into DJI Air Unit
• Black Box：512M onboard
• Bluetooth: Supported
• Barometer: Supported
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC Output: 5V@3A,12V@2.5A dual BEC
• Firmware Target: GEPRC_TAKER_H743
• Size: 38.5×38.5mm, mounting hole size 30.5×30.5mm
• Input Voltage: 3-6S LiPo
• UART Ports: 7 groups (UART3 fixed for Bluetooth)
• Power Filtering: Integrated LC filter
• Weight：8.4g

 Includes

• 1 x FC board
• 1 x O3 3-in-1 connection cable
• 1 x FC adapter cable
• 1 x sh1.0 4pin silicone cable
• 1 x Camera connection cable
• 1 x VTX connection cable
• 1 x Buzzer connection cable
• 4 x Silicone grommets
•
