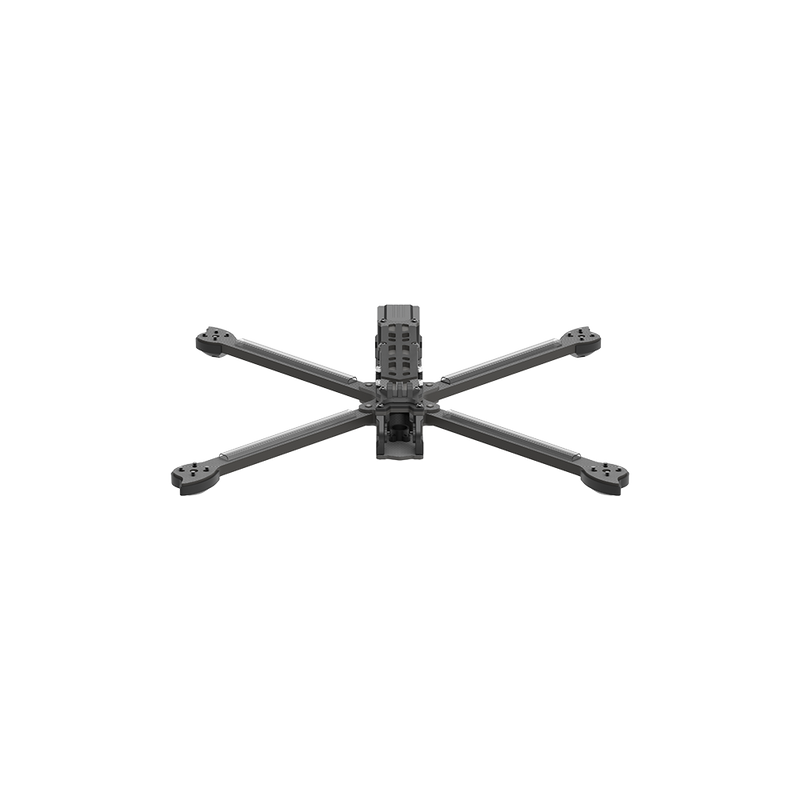

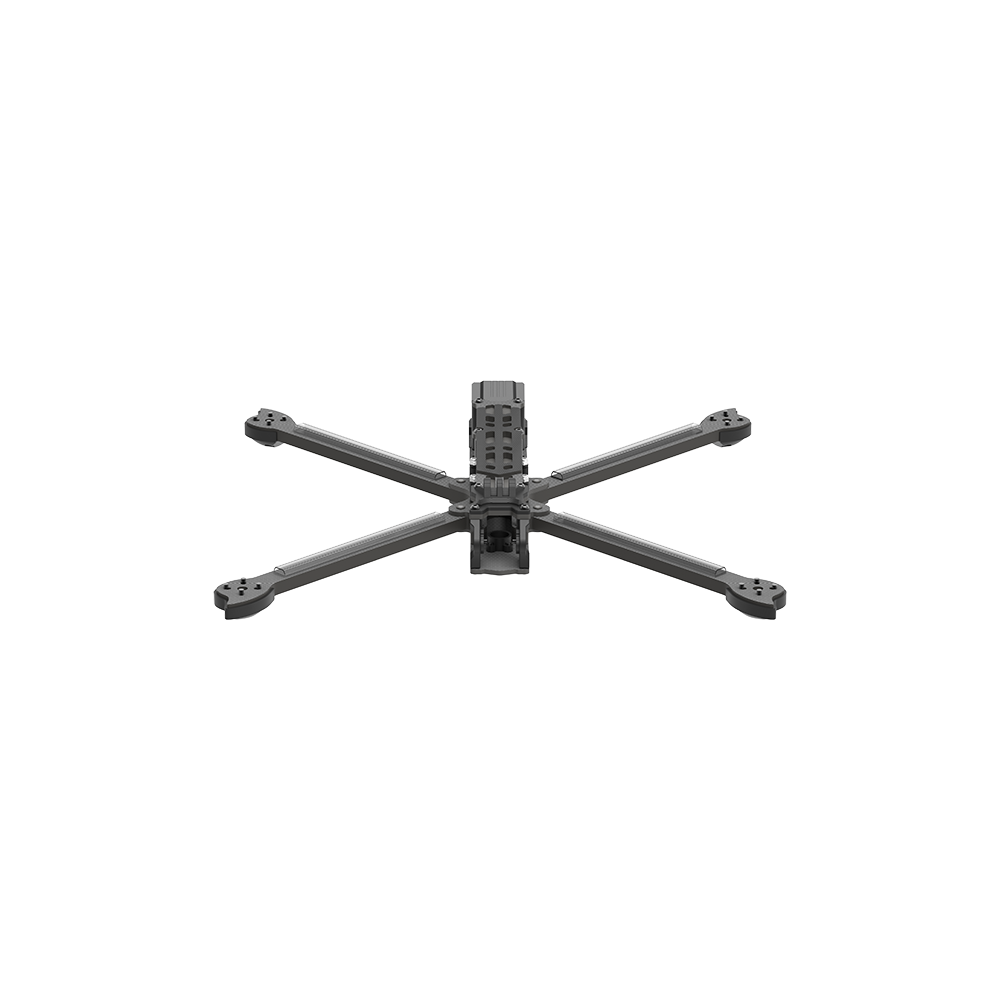

iFlight Nazgul XL10 V6 10 inch Frame Kit

IiFlightSKU: FQ14152

Price:
Sale price$199.95

Shipping calculated at checkout

Stock:
Contact Us

Description


We are proud to announce the release of the XL series V6 Frames, XL10 V6 is a 10" size quadcopter, fit for the DJI O3 Air Unit system and Caddx Digital FPV system on it.

The main advantages of the XL series V6 are in the flight performance, and the stronger and thick arms. The XL series V6 frames fly balanced because of the true X configuration and wide stance. These main changings make flight stable in the air.


Changelog
August 2023: Arm Guards' color changes from green to black.

Features
  • Full 3K Carbon Fiber airframe
  • 10" version fits popular 10" style propellers
  • Popular True-X configuration
  • Fits both 30.5x30.5 and 20x20 stacks
  • Compatible with DJI O3 Air Unit, Caddx Vista HD System, BLITZ Whoop 1.6W VTX
  • 360° TPU protection and Antenna mounts



Specifications
  • Product Name:Nazgul XL10 V6 10 inch Frame Kit
  • Wheelbase: 420mm
  • Frame Dimension: L297*W297*H35mm
  • Arm Thickness: 7mm
  • Bottom Plate Thickness: 3mm
  • Top Plate Thickness: 3mm
  • Upper Plate Thickness: 3mm
  • Max Flight Stack Height: 19mm
  • Max VTX Height: 29mm
  • Motor Mounting:16x16mm/19x19mm
  • VTX Mounting:20*20 Φ2mm/ 25.5*25.5 Φ2mm/ 30.5*30.5 Φ3mm
  • Weight: 345±5 grams


Packing List
  • 1 x Nazgul XL10 V6 Frame
  • 1 x Screw Bag
  • 1 x TPU Set
  • 1 x Battery anti-slip mat
  • 2 x Battery straps (the color will be shipped randomly)
