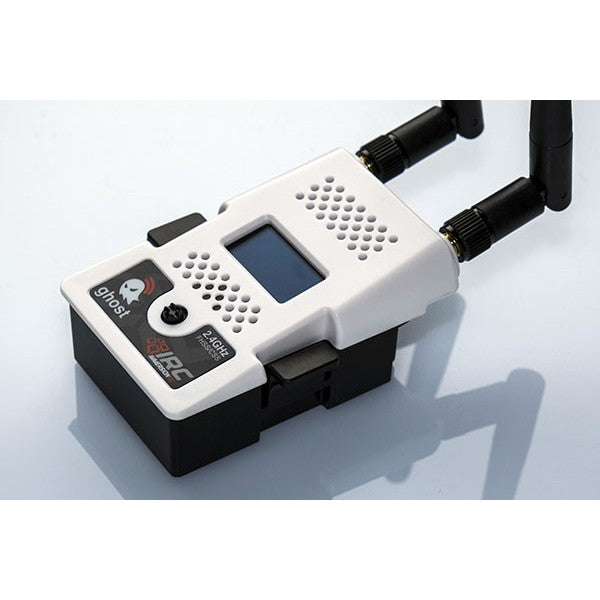

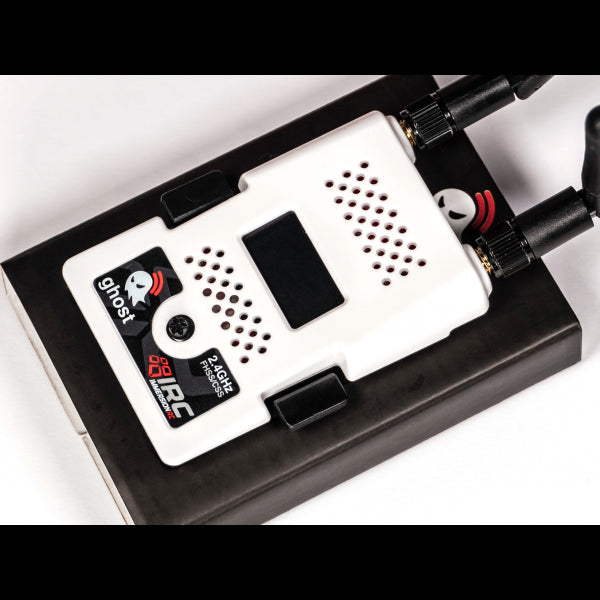

IMMERSIONRC GHOST JR MODULE

ImmersionrcSKU: GHST_JR

Price:
Sale price$124.95

Shipping calculated at checkout

Stock:
Sold out

Description

Ghost is a 2.4GHz Radio Control system for R/C Model Control, with a focus on the FPV community.

Designed for both reliable control at extreme range, and extremely low latency with best-in-class frame rate for the Race circuit.

SPECIFICATIONS:
  • Frequency Range : 2406 - 2479MHz
  • Modulation: Chirp Spread Spectrum + Adaptive FHSS
  • Binding: Bidirectional with confirmation and protocol negotiation
  • RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come
  • Uplink Tx Power: 16uW - 350mW (+/- 0.5dB) 3
  • Frame Rate: 222.22Hz (purerace), 166Hz (race), 62Hz (normal), 15Hz (long range)
  • Format: Standard JR Module:, tested with FrSky Taranis™, and RadioMaster™ radios
  • Compatibility: Any R/C Tx which accepts JR modules (Taranis, etc. )
  • Serial Formats: SBus, GHST 1 - Auto-Sense
  • Firmware: USB Upgradable(with OTA updates for receivers)
  • Power Supply: 6V-20V, 1.75W @ 400mW, ~250mA at 7.4V

PACKAGE INCLUDES:

  • 1 x ImmersionRC Ghost JR Module (TX)
