IMMERSIONRC GHOST ZEPTO 2.4GHZ RECEIVER

ImmersionrcSKU: GHST_ZEPT

Price:
Sale price$46.95

Shipping calculated at checkout

Stock:
Contact Us

Description

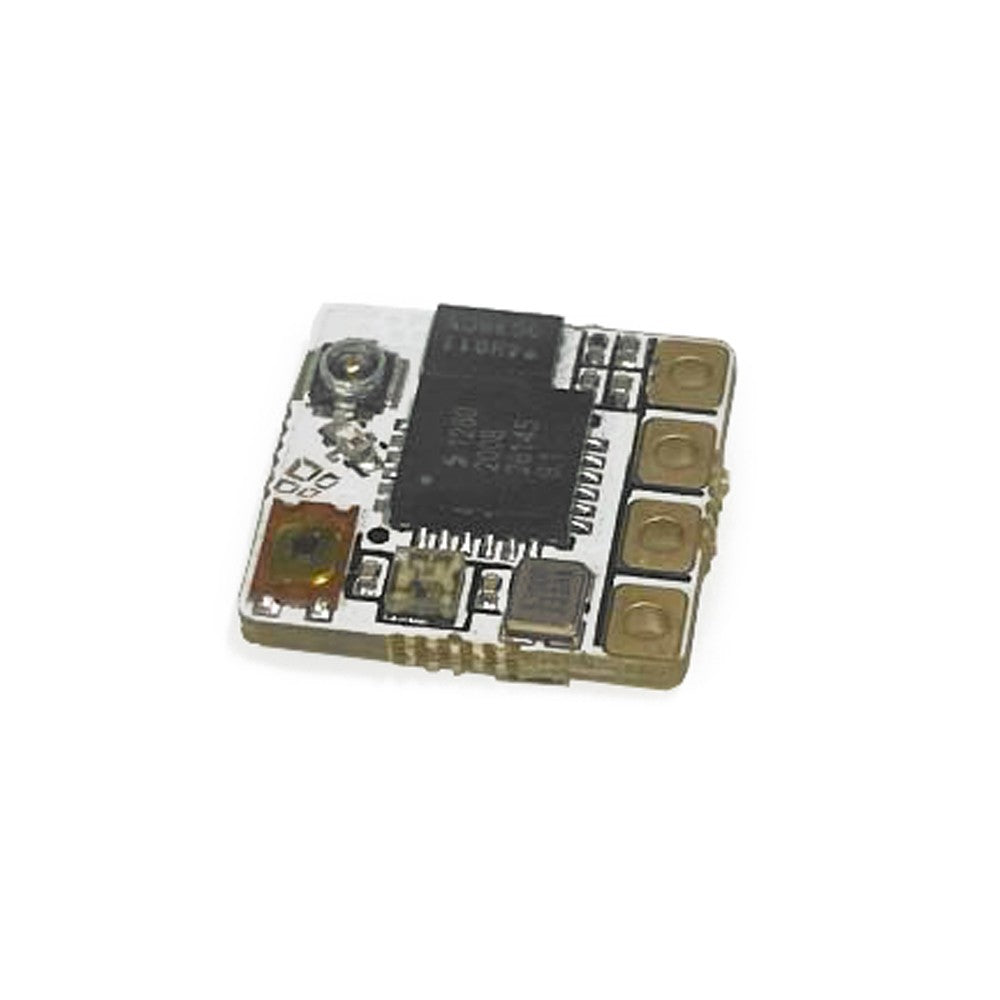

The ImmersionRC Ghost Zepto is a small and lightweight 2.4GHz receiver that is perfectly suited for the ImmersionRC Ghost and Tramp Nano. Comes with an Over-the-air (OTA) upgradeable firmware, SBus, SBus-Fast (200k), SRXL-2 (400k), GHST, SBus Inverted serial formats, and other specs!

Ghost is a 2.4GHz Radio Control system for R/C Model Control, with a focus on the FPV community.

Designed for both reliable control at extreme range, and extremely low latency with best-in-class frame rate for the Race circuit.

The Zepto is the smallest, lightest Race/Long range receiver in the business, bar none. Same sensitivity, and latency, as its big brother, the Atto.

Features & Specs

  • Frequency Range : 2406 - 2479MHz
  • Modulation: Chirp Spread Spectrum + Adaptive FHSS
  • Binding: Bidirectional with confirmation and protocol negotiation
  • RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come
  • Downlink Tx Power: +13dBm
  • Sensitivity: -117dBm in Long Range mode
  • Serial Formats: SBus, SBus-Fast (200k) , SRXL-2 (400k), GHST, SBus Inverted
  • Firmware: Over-the-air (OTA) upgradable
  • Power Supply: 5V recommended, as low as 3.3V tolerated
  • vTx control: Tramp control from 'T'pin on Rx, regardless of selected serial format
  • Antenna Connector: MHF4 (requires micro qT antennas, not compatible with Atto qT antennas)
  • Antenna (included): MHF4-equipped micro qT with 50mm cable

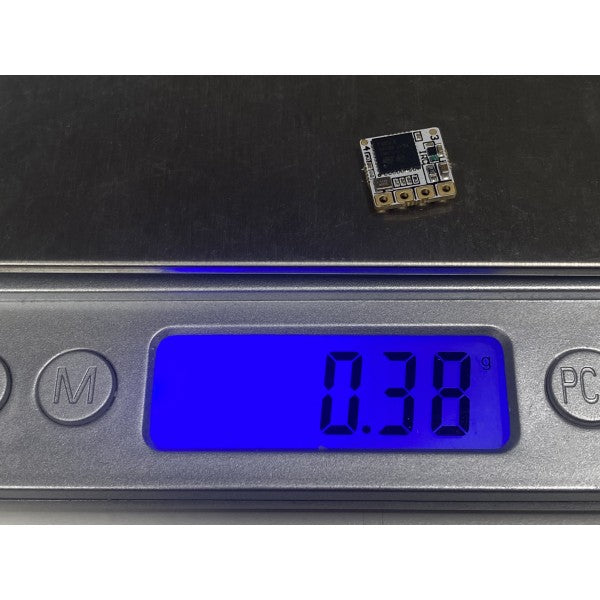

  • Dimensions: 10mm x 10mm, 0.35g (w/o antenna)

Includes

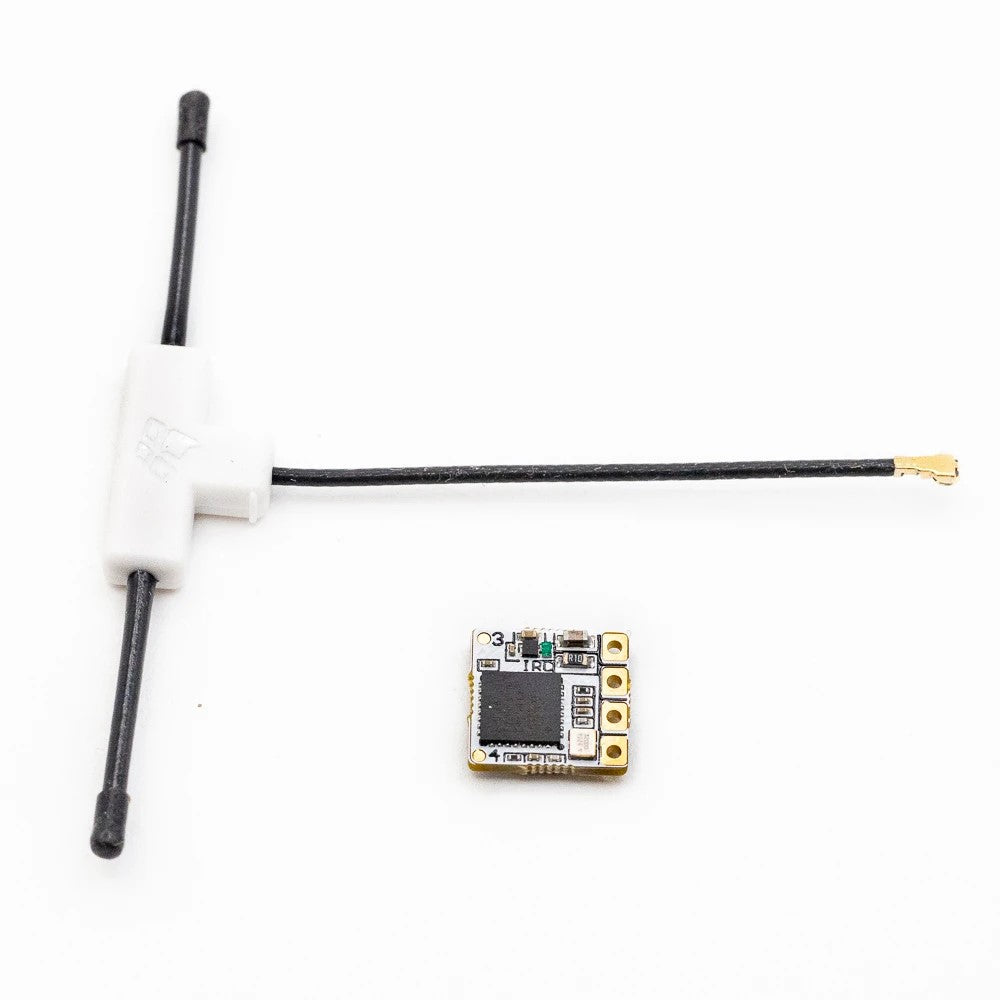

  • 1 x ImmersionRC Ghost Zepto 2.4GHz Receiver
  • 1 x Micro qTee Antenna w/50mm cable
  • Silicone Cables
  • Heat Shrink
