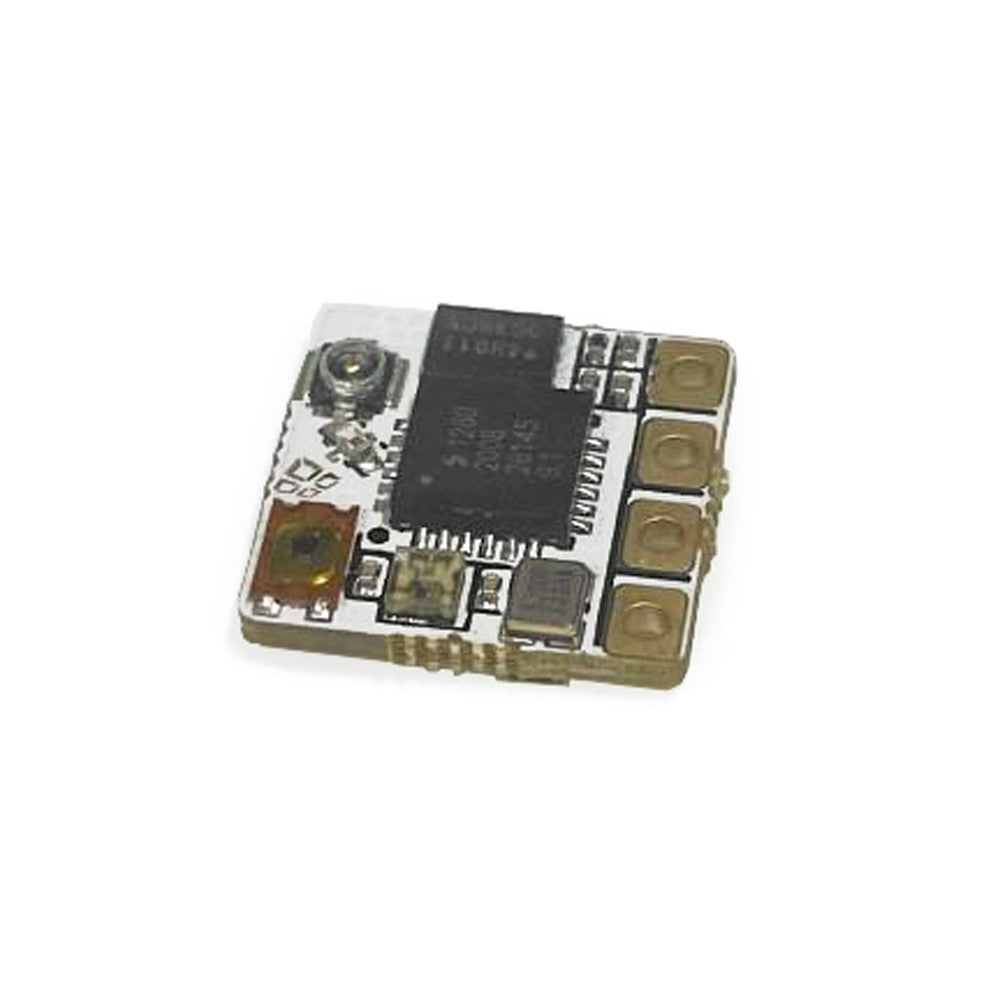

IMMERSIONRC GHOST ZEPTO 2.4GHZ RECEIVER

The ImmersionRC Ghost Zepto is a small and lightweight 2.4GHz receiver that is perfectly suited for the ImmersionRC Ghost and Tramp Nano. Comes with an Over-the-air (OTA) upgradeable firmware, SBus, SBus-Fast (200k), SRXL-2 (400k), GHST, SBus Inverted serial formats, and other specs!

Ghost is a 2.4GHz Radio Control system for R/C Model Control, with a focus on the FPV community.

Designed for both reliable control at extreme range, and extremely low latency with best-in-class frame rate for the Race circuit.

The Zepto is the smallest, lightest Race/Long range receiver in the business, bar none. Same sensitivity, and latency, as its big brother, the Atto.

Features & Specs

• Frequency Range : 2406 - 2479MHz
• Modulation: Chirp Spread Spectrum + Adaptive FHSS
• Binding: Bidirectional with confirmation and protocol negotiation
• RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come
• Downlink Tx Power: +13dBm
• Sensitivity: -117dBm in Long Range mode
• Serial Formats: SBus, SBus-Fast (200k) , SRXL-2 (400k), GHST, SBus Inverted
• Firmware: Over-the-air (OTA) upgradable
• Power Supply: 5V recommended, as low as 3.3V tolerated
• vTx control: Tramp control from 'T'pin on Rx, regardless of selected serial format
• Antenna Connector: MHF4 (requires micro qT antennas, not compatible with Atto qT antennas)
• Antenna (included): MHF4-equipped micro qT with 50mm cable

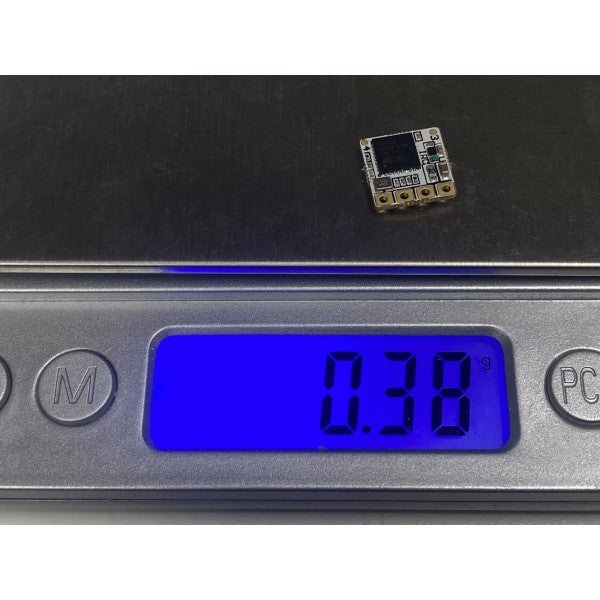

• Dimensions: 10mm x 10mm, 0.35g (w/o antenna)

Includes

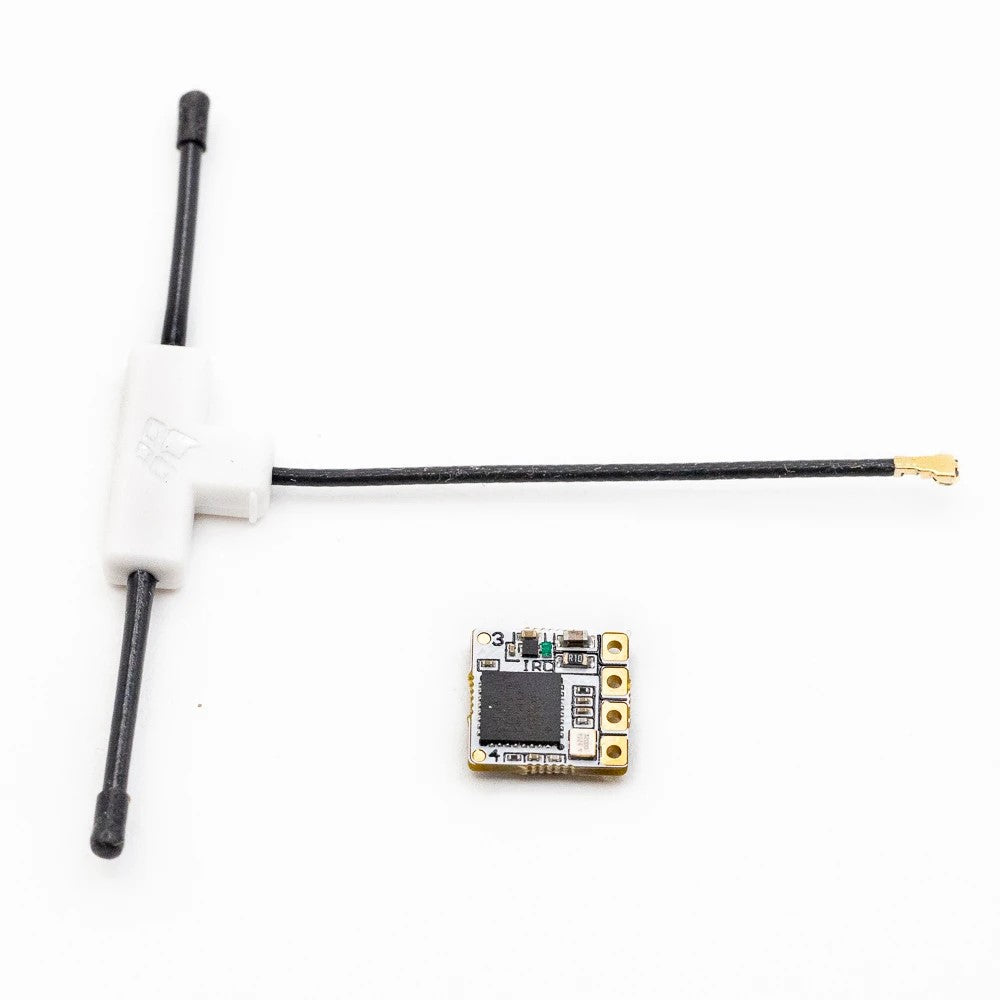

• 1 x ImmersionRC Ghost Zepto 2.4GHz Receiver
• 1 x Micro qTee Antenna w/50mm cable
• Silicone Cables
• Heat Shrink
