13dBi Right-Hand (RHCP) Circular Polarized Patch antenna, Full-Custom design for the FPV market.
When coupled with our 700mW 2.4GHz transmitter, and the upcoming Uno2400, enjoy downlink range of > 10km.
This 2.4GHz Right-Hand (RHCP) Circular Polarized patch antenna was custom-designed, with no expense spared, for the FPV market.

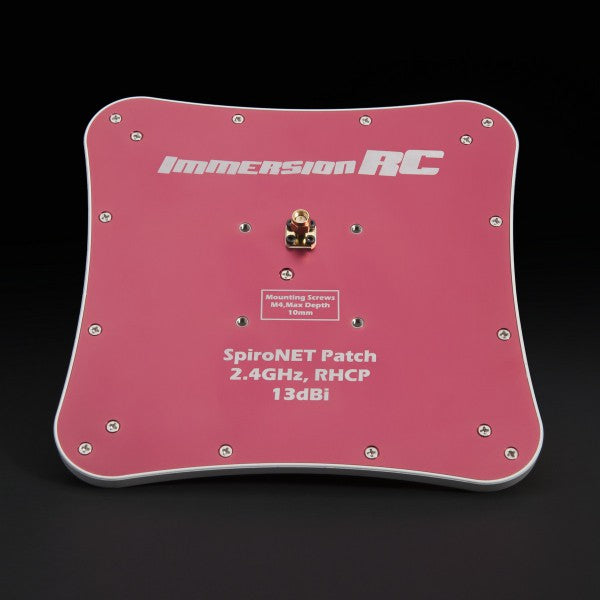

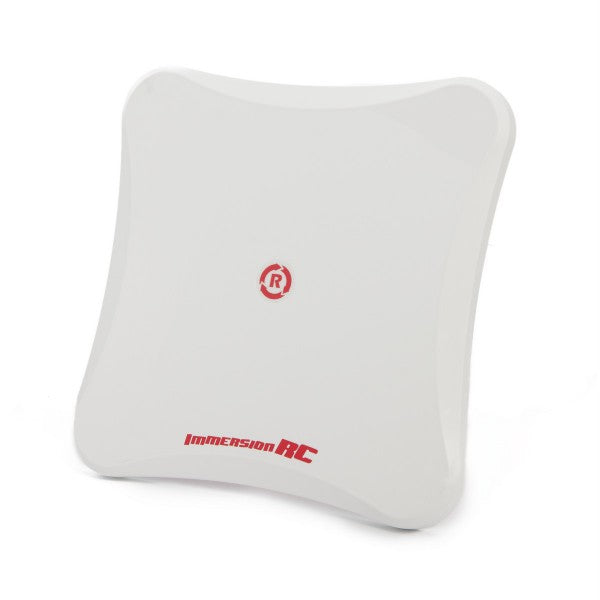

A custom designed plastic radome protects your investment. An anodized aluminium rear panel includes mounting points for tripod mounting.
This antenna will breathe new life into the CE-Legal 2.4GHz 10mW systems, allowing multi-km range with ease. For use with our 2.4GHz 700mW transmitter, its time to start worrying about the range of the control link, since with a combination of this antenna, and a spiroNET omni, the video range will greatly exceed the control range of any 2.4GHz radio.
- Precision manufactured with very tight tolerances, *each antenna* is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance.
- SMA male connector compatible with all FatShark/ImmersionRC 2.4GHz products sold to date.
- Right-Hand circular polarization
- 2.4GHz ISM Band
- 13dBi gain
- Beam width 35 degrees (H + V)
- F/B Ratio >35dB
- VSWR < 1:1.35 at center frequency
- Impedance 50 ohms
