Description

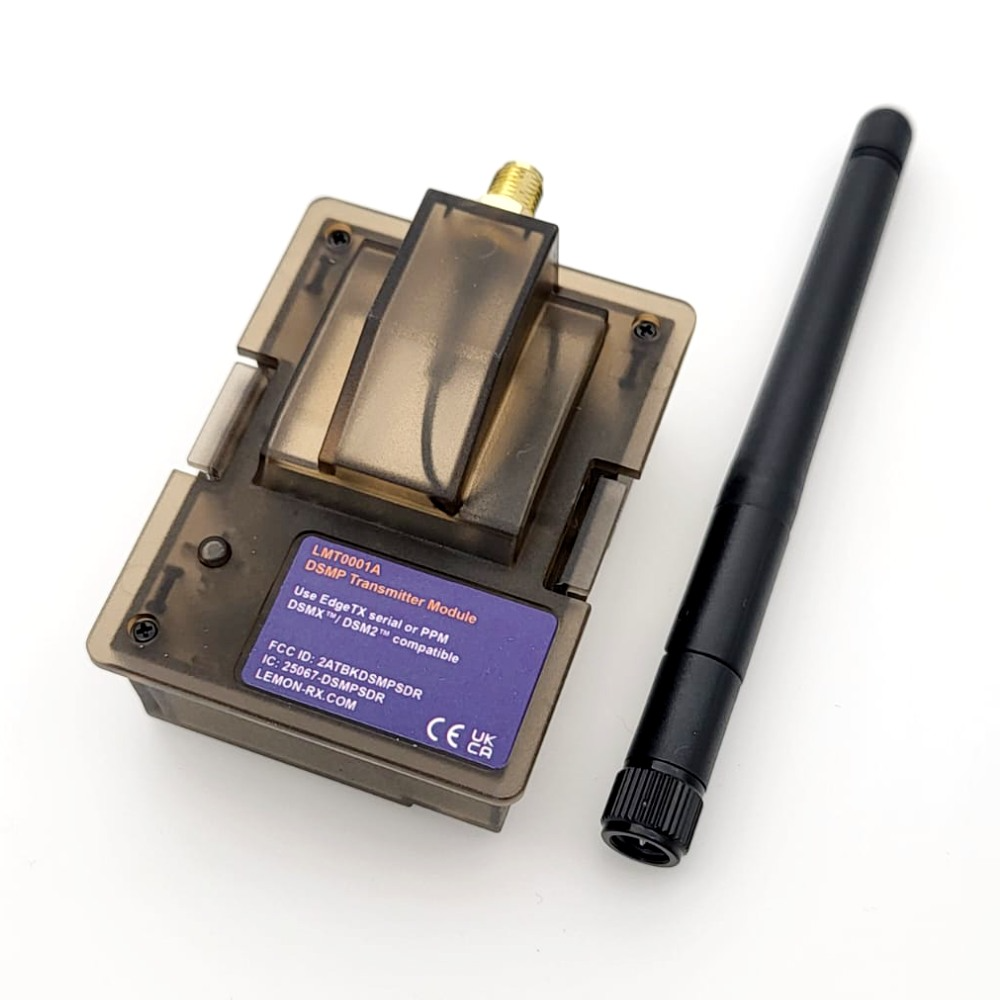

The Lemon Rx DSMP Plug and Go transmitter module (Generation 2) operates in serial mode to support EdgeTX radios by Radiomaster, Jumper, FrSky and others. In this mode the module supports features including telemetry, TEXGEN, Forward Programming, and model match. The revolutionary DSMP protocol based on software defined radio packet allows full compatibility with all DSMX and DSM2 receivers and UMX models.
The module also supports PPM mode, which is compatible with a wide range of legacy radios.
Serial mode (EdgeTX)
- Make sure to use the latest EdgeTX firmware and DSM Tools.
- Select "External Module" under Model Setup. Set mode to “LemonRX DSMX”
- If the radio uses AETR channel order, set “Enable AETR” to remap channels to TAER for compatibility with Lemon and Spektrum receivers.
- Put receiver into bind mode. On the radio select “Bind” under External RF.
-Range check is available under External RF.
Legacy PPM
- Select "External Module" under Model Setup. Set mode to “PPM”.
- Turn OFF radio. Put receiver into bind mode.
- Press and hold module Bind/Range Check button while turning ON radio.
- Hold button until module light turns green. Receiver light should be solid.
Note:
1) This is not a Spektrum DSMX or DSM2 product, nor is it a copy of a Spektrum DSM2 or DSMX product. The Spektrum, DSMX and DSM2 brand is a trademark of Horizon Hobby, Inc.
2) This is not an underground black market fake Spektrum product. Lemon Rx quality is guaranteed.
3) Lemon Rx products are tested to be compatible with Spektrum's DSMX and or DSM2 product (Spektrum, DSMX and DSM2 are the registered trademark of Horizon Hobby, Inc.).
