Matek F405-VTOL Flight Controller

MatekSKU: F405-VTOL

Price:
Sale price$109.95

Shipping calculated at checkout

Stock:
Only 1 unit left

Description

Looking to buy a Matek F405-VTOL Flight Controller in Australia? You've come to the right place. Any questions? please live chat us, we're here to help!

Check out our great range of Matek products here

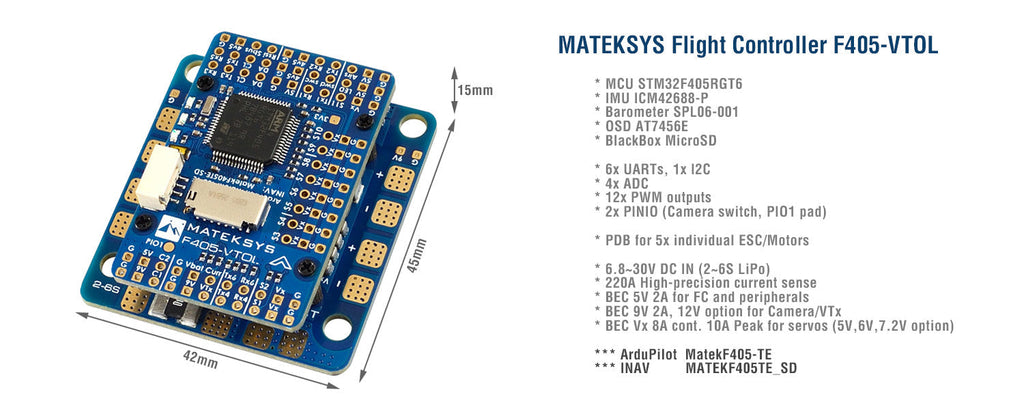

FC Specifications

  • MCU: STM32F405RGT6, 168MHz , 1MB Flash
  • IMU: ICM42688-P
  • Baro: SPL06-001
  • OSD: AT7456E
  • Blackbox: MicroSD card slot
  • 6x UARTs,  1x Softserial_Tx option(INAV)
  • 12x PWM outputs
  • 1x I2C
  • 4x ADC (VBAT, Current, RSSI, Airspeed)
  • 1x spare PINIO
  • USB/Beep Extender with Type-C(USB2.0)
  • Built in inverter on UART2-RX for SBUS input
  • Switchable Dual Camera Input

FC Firmware

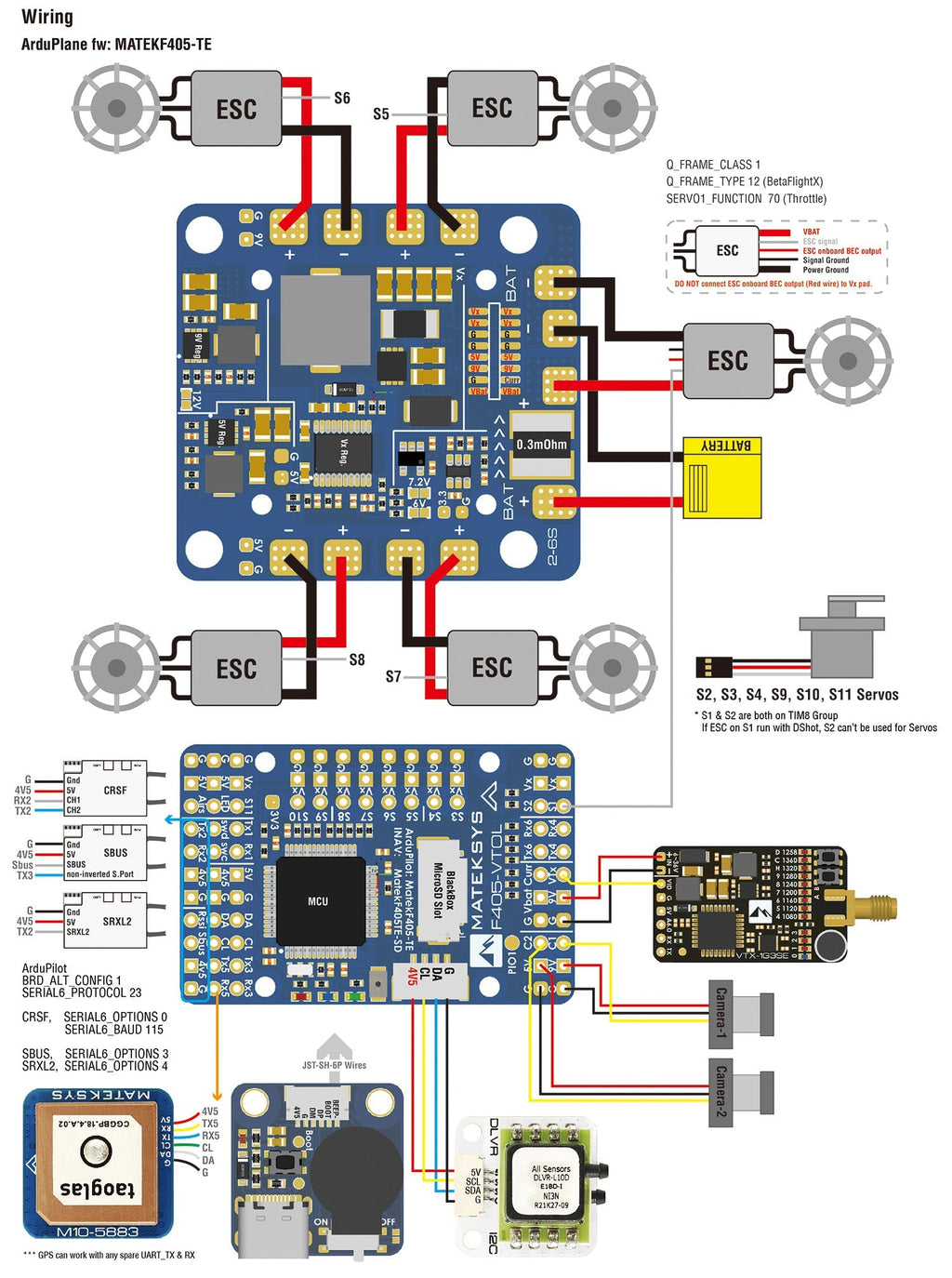

  • ArduPilot: MatekF405-TE

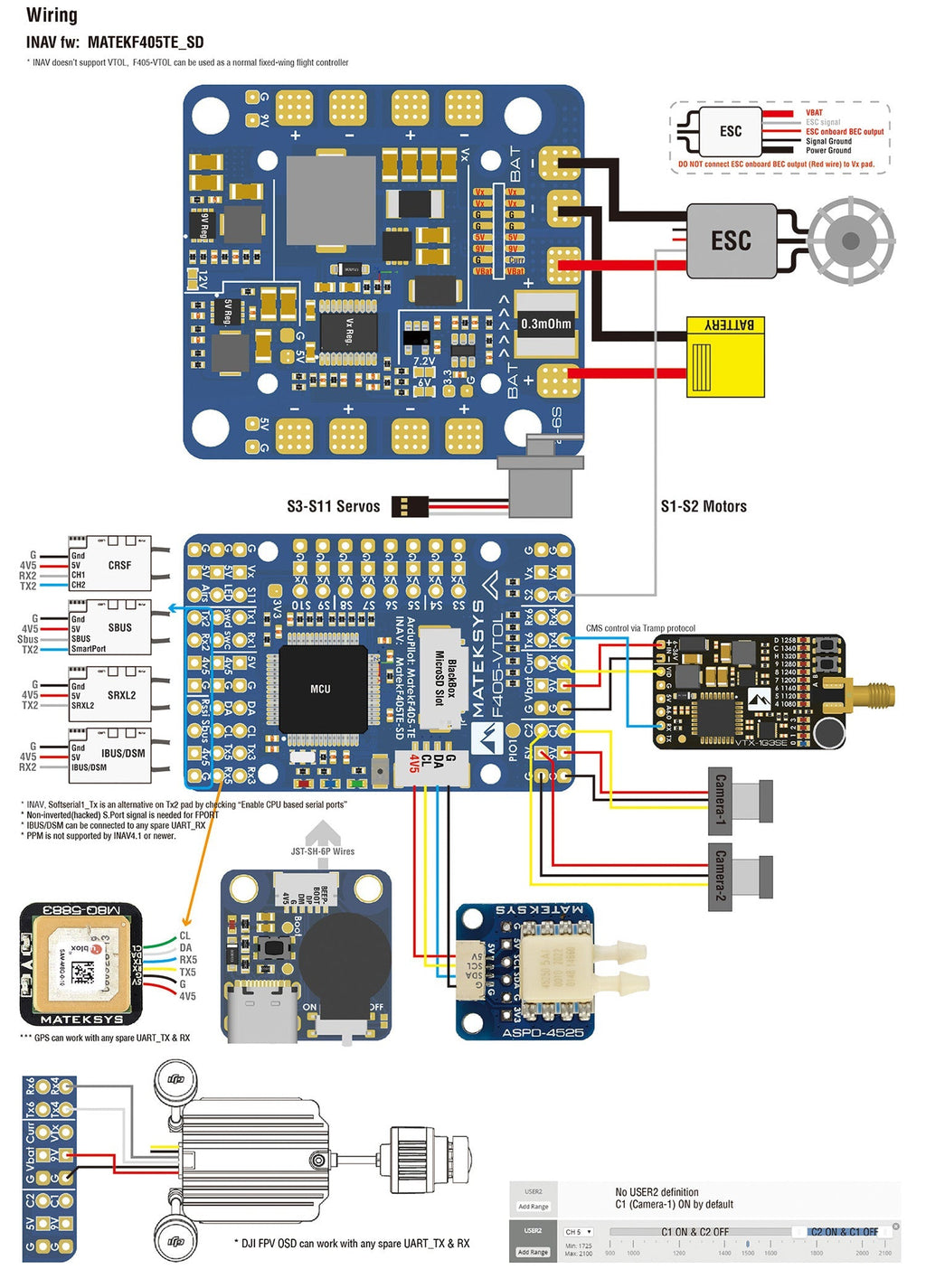

  • INAV: MATEKF405TE_SD (INAV 5.0 or newer)

PDB

  • Input voltage range: 6.8~30V (2~6S LiPo)
  • Sense resistor: 100A continuous, 220A peak
  • 5x ESC power pads, total 100A continuous
  • Support continuous load of up to 100A on ESC pad near the current sensor resistor
  • Support continuous load of up to 30A & peak of 50A on each ESC pad of Quadcopter
  • Battery Voltage divider 1K:20K (Scale 2100 in INAV,  BATT_VOLT_MULT 21.0 in ArduPilot)
  • Current Senor: 220A,  3.3V ADC  (Scale 150 in INAV,  66.7 A/V in ArduPilot)

BEC 5V output

  • Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
  • Continuous current: 2 Amps

BEC 9V /12V output

  • Designed for Video Transmitter, Camera, Gimbal ect.
  • Continuous current: 2 Amps
  • 12V option with Jumper pad
  • for stable 9V/12V output, input voltage should > output voltage +1V

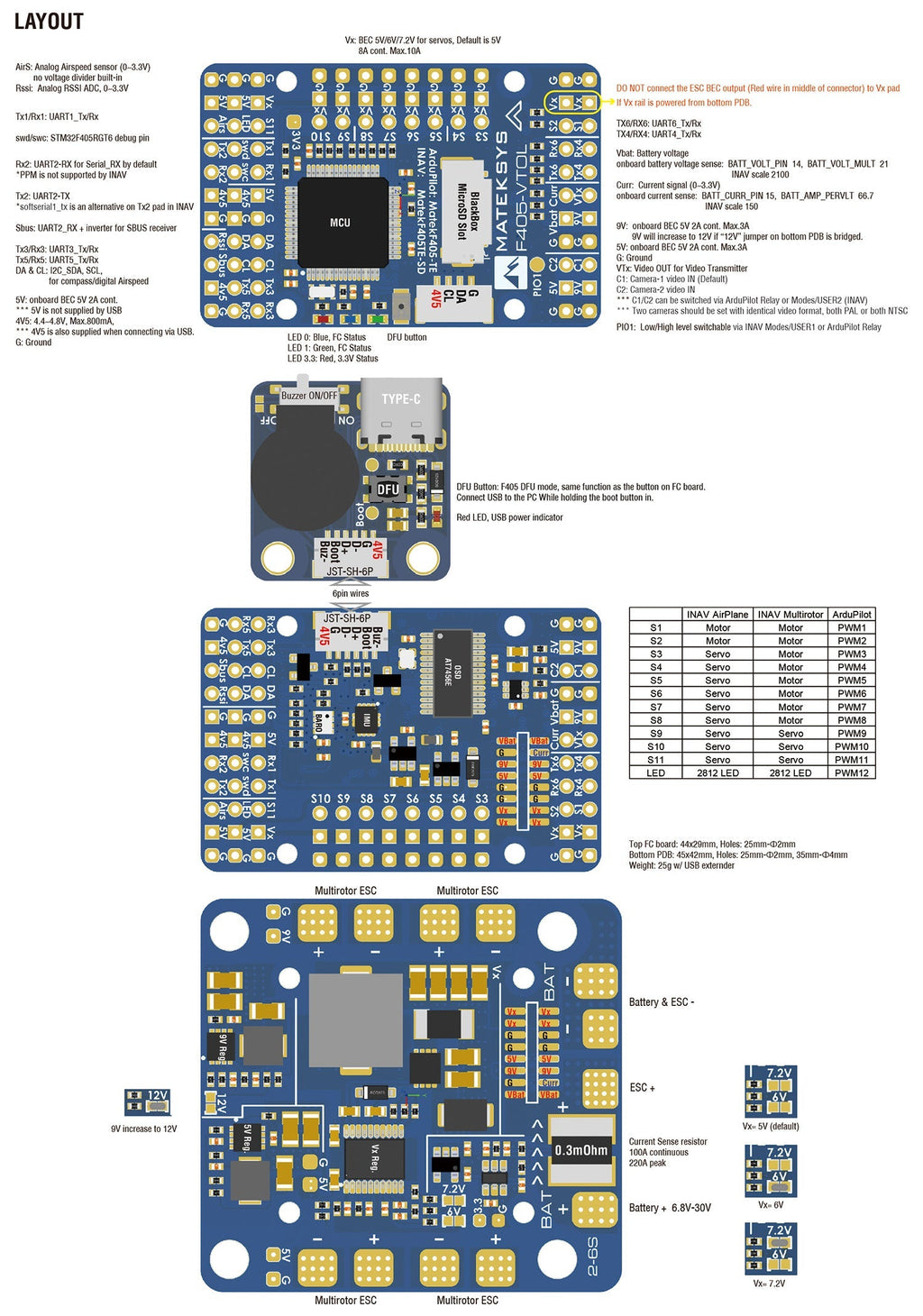

BEC Vx output

  • Designed for Servos
  • Voltage adjustable, 5V Default, 6V or 7.2V via jumper
  • Continuous current: 8 Amps,  10A Peak
  • for stable Vx output, input voltage should > Vx voltage +1V

BEC 3.3V output

  • Designed for Baro / Compass module and external 3.3V peripherals
  • Linear Regulator
  • Continuous current: 200mA

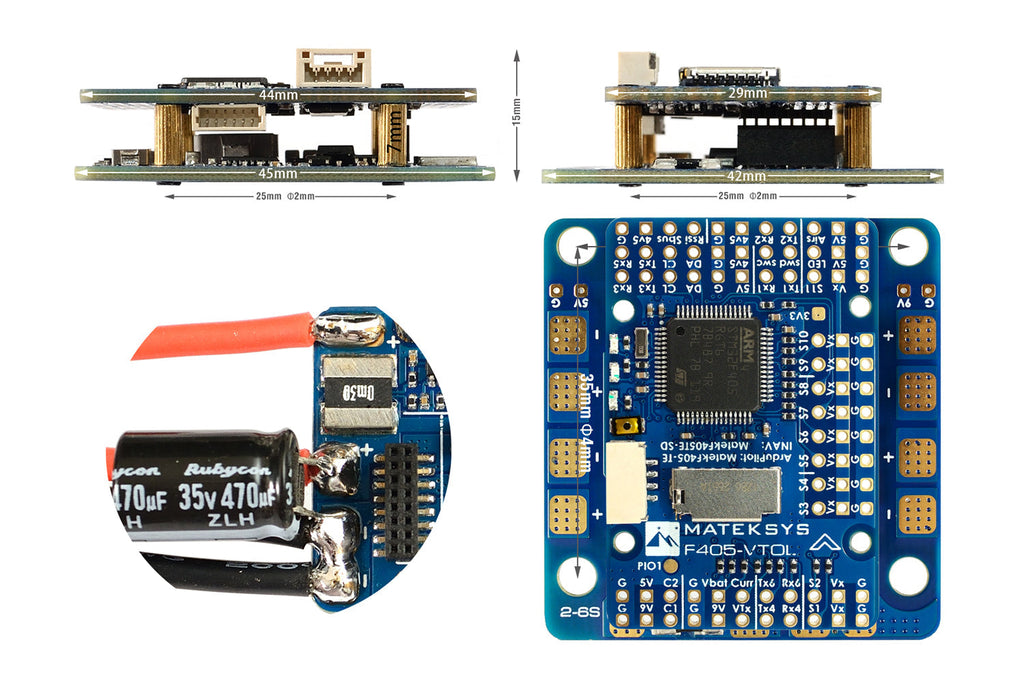

Physical

  • Mounting: 25 x 25mm-Φ2mm, 35 x 35mm- Φ4mm
  • Dimensions: 45 x 42 x 15mm
  • Weight: 25g  w/ USB/buzzer adapter

Including

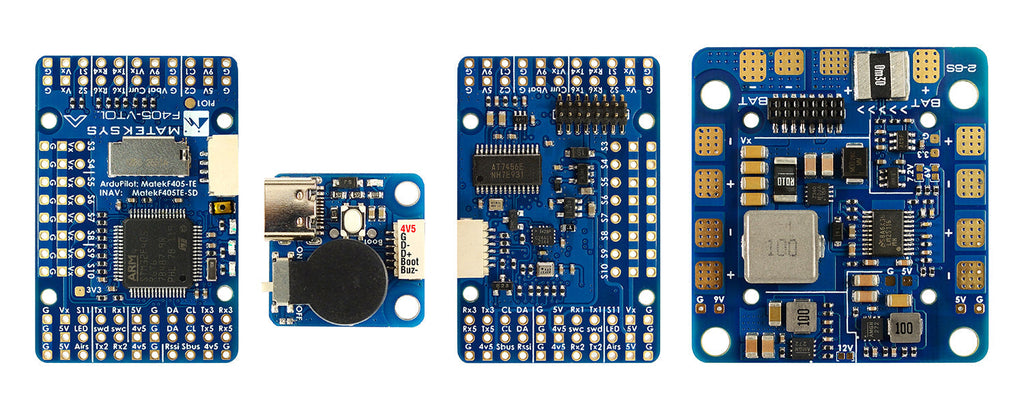

  • 1x F405-VTOL
  • 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
  • 1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port
  • 1x Rubycon ZLH 35V 470uF capacitor
  • Dupont 2.54 pins  (Board is shipped unsoldered)
