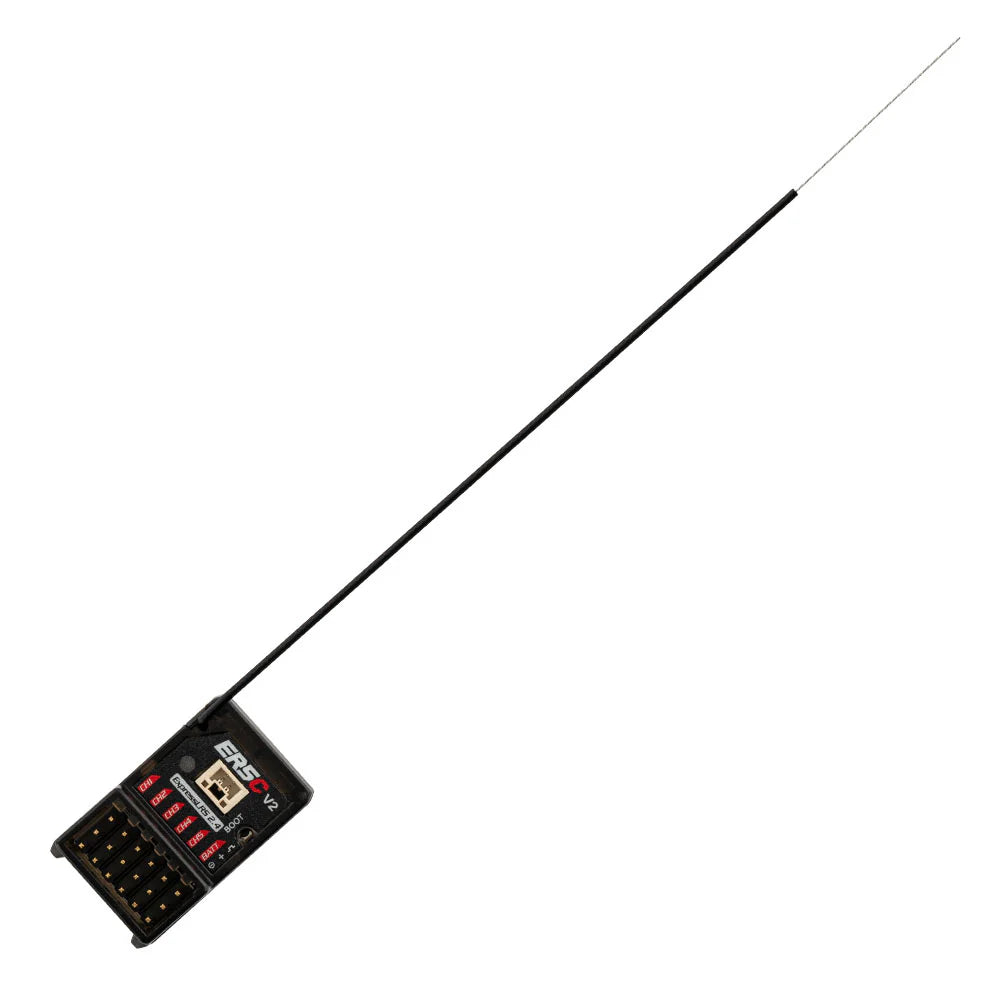

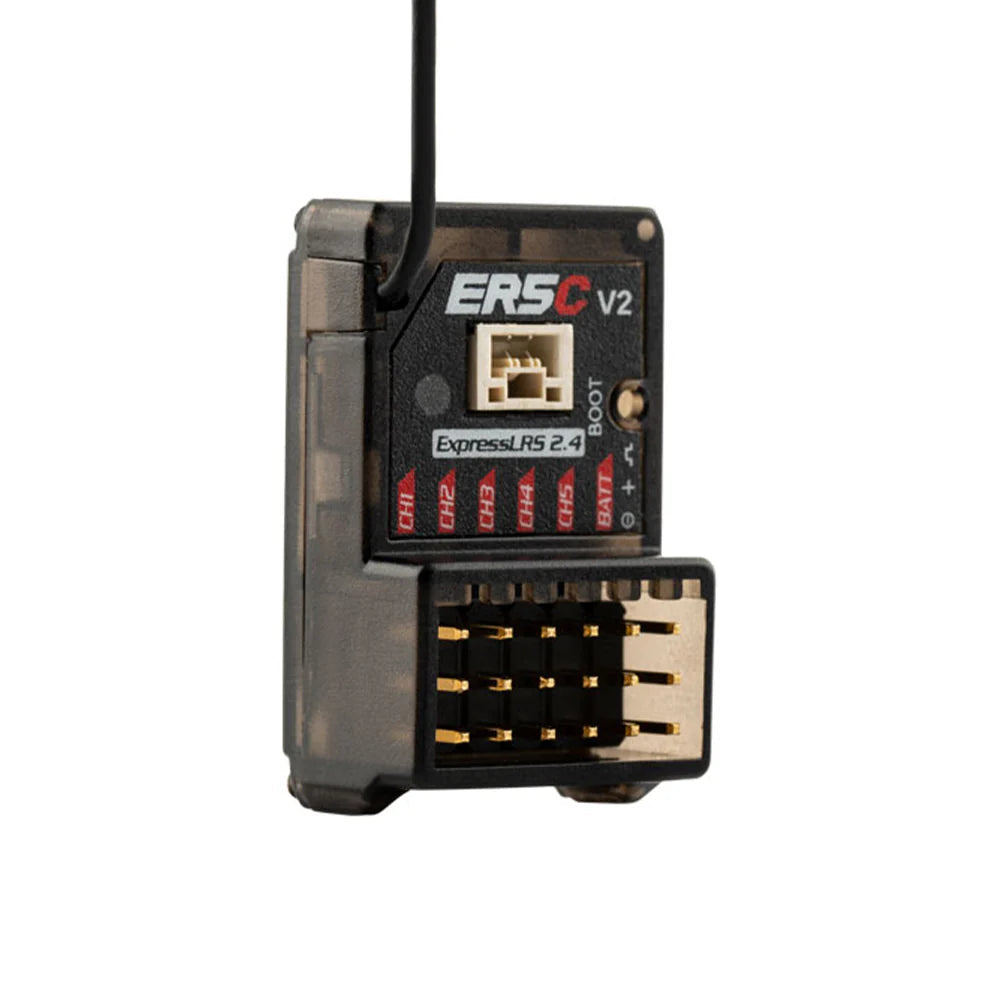

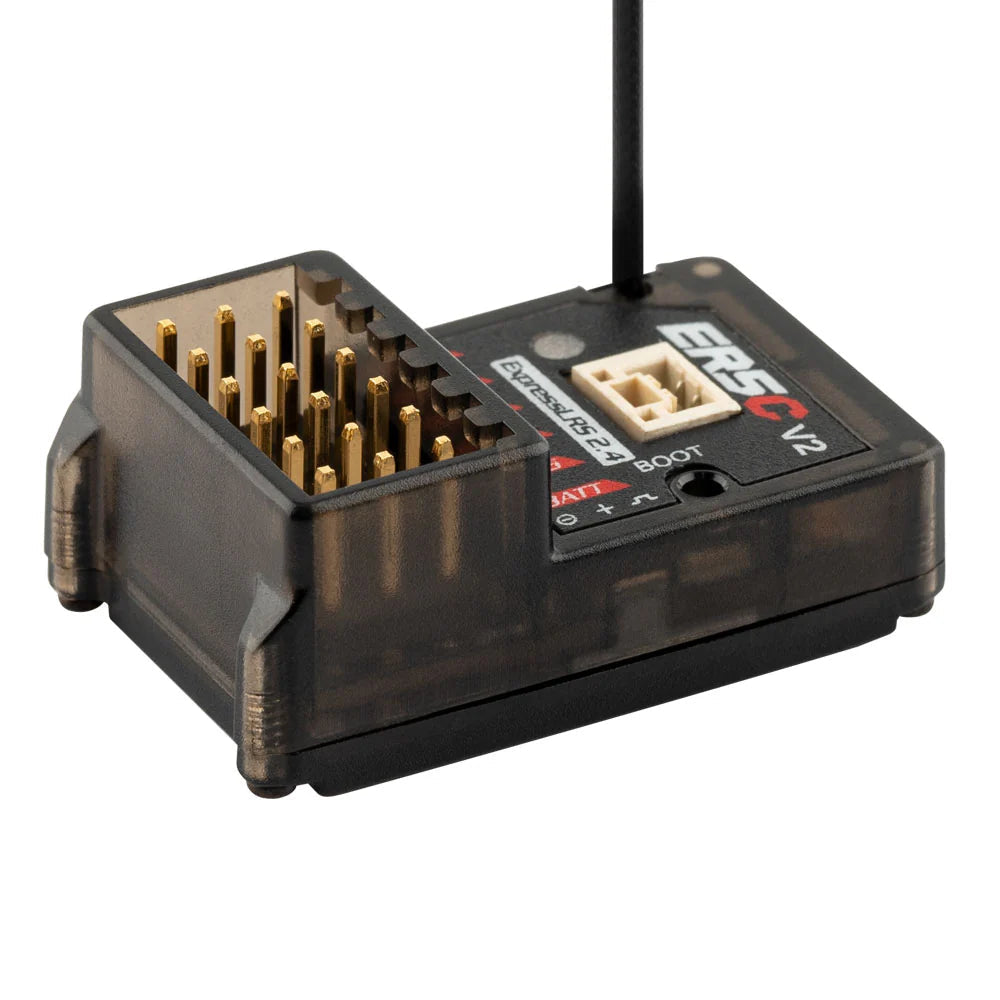

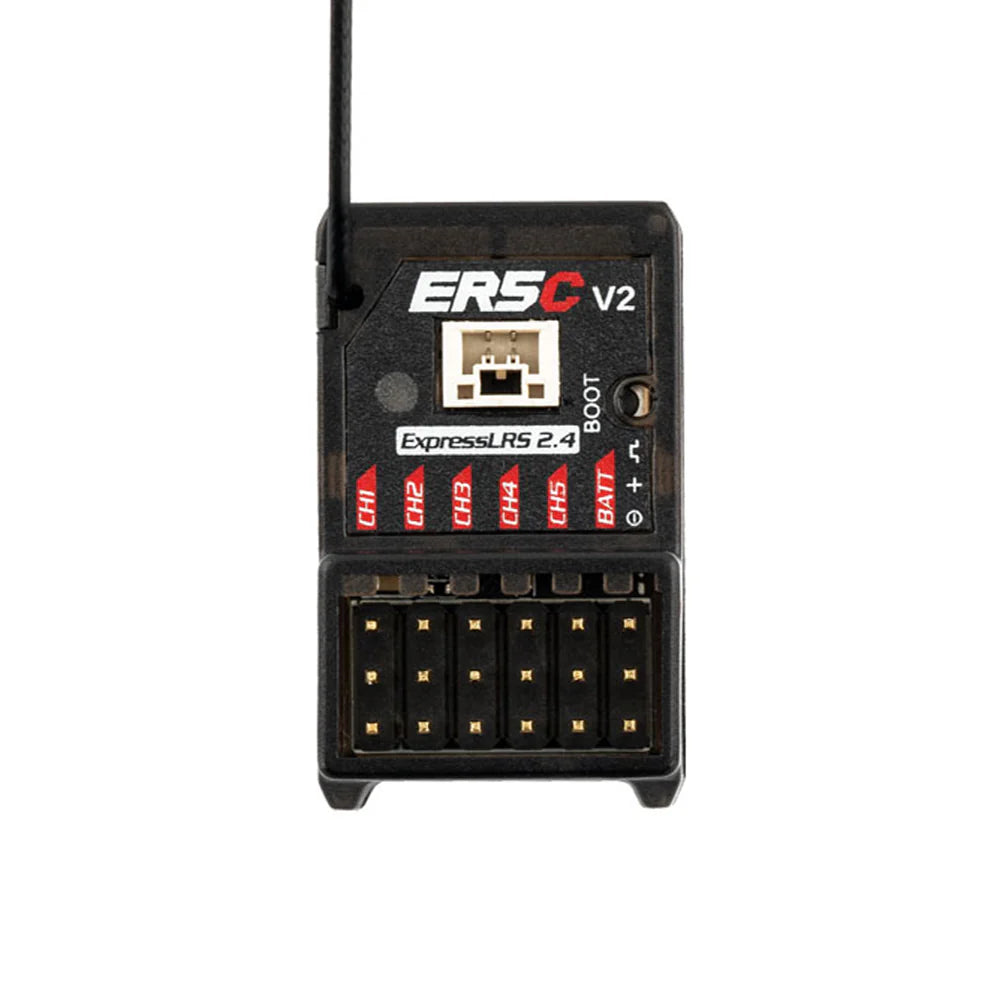

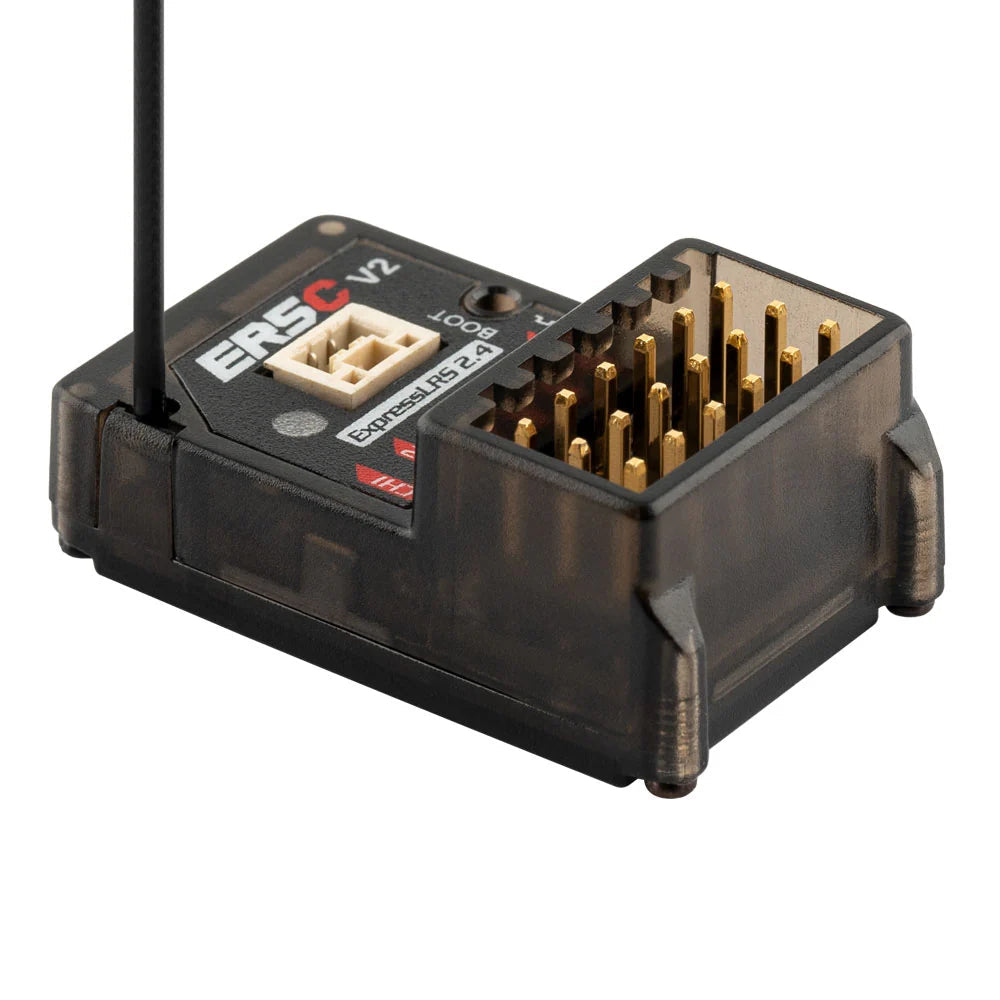

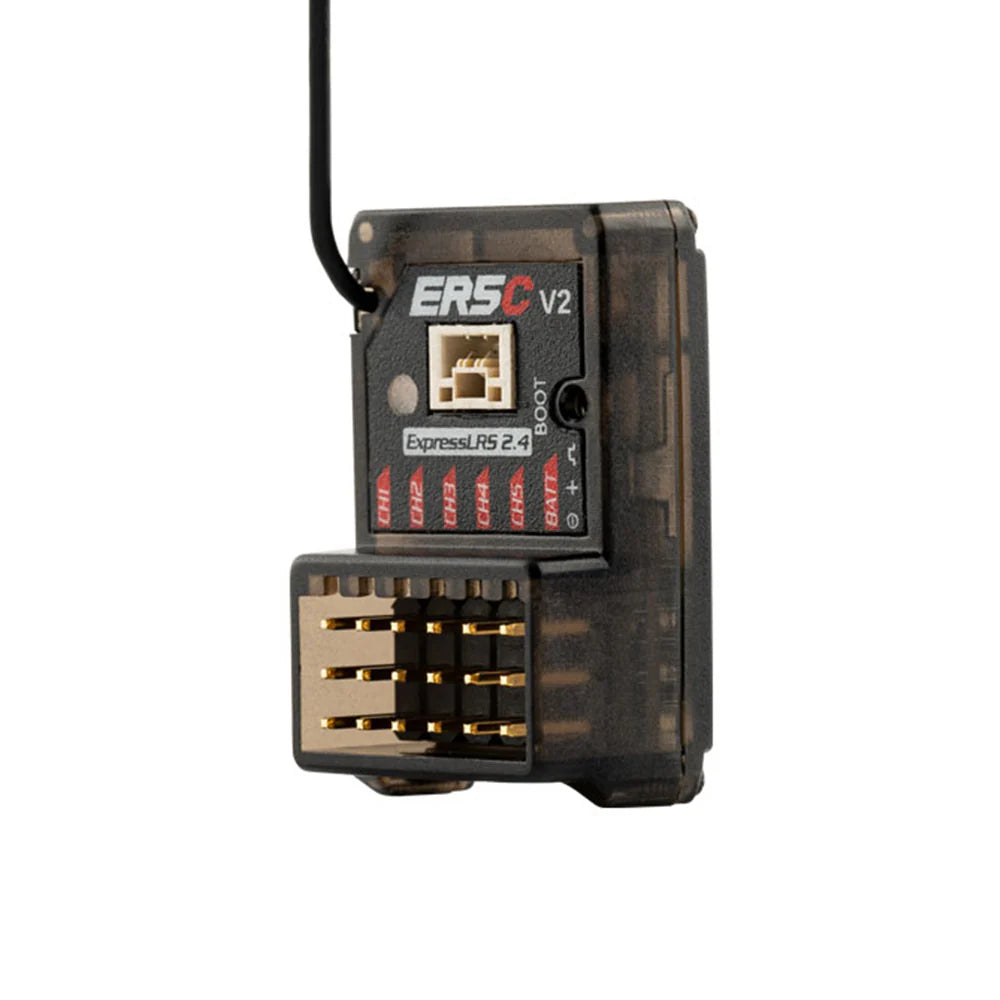

RadioMaster ER5C V2 2.4GHz ELRS PWM Receiver

RadioMasterSKU: HP0157.RX-ER5C-V2

Price:
Sale price$33.95

Shipping calculated at checkout

Stock:
In stock (9 units), ready to be shipped

Description

ER5C V2 receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.

The ER5C V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. It is designed for all types of surface & marine R/C applications.

ER5C V2 2.4GHz ELRS PWM Receiver

Features

  • Based on the Revolutionary ExpressLRS System
  • High performance, high reliability, flexible configuration, fast response speed and ultra-long range
  • Support 5 PWM Channels
  • Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
  • Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
  • Optimized ground up PCB design
  • Supports Wi-Fi updates and WEBUI configuration
  • Compact size, easy to install. Perfect for surface & marine R/C applications
  • Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification

  • Item: ER5C V2 2.4GHz ELRS PWM Receiver
  • Power supply: DC 4.5-8.4V
  • Antenna type: High-sensitivity antenna
  • Wireless Protocol: ELRS 3.3.0 pre-installed
  • Channels: 5
  • Telemetry Voltage Detection Range: DC 4.0 - 35V
  • RF Telemetry: Yes
  • Telemetry Power: 10mw
  • Weight: 5.7 grams
  • Size: 30.0 * 18.5 * 13.0mm
  • Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5C 2.4GHz PWM RX

ER5C V2 2.4GHz ELRS PWM ReceiverER5C V2 2.4GHz ELRS PWM ReceiverER5C V2 2.4GHz ELRS PWM ReceiverER5C V2 2.4GHz ELRS PWM ReceiverER5C V2 2.4GHz ELRS PWM ReceiverER5C V2 2.4GHz ELRS PWM ReceiverER5C V2 2.4GHz ELRS PWM ReceiverER5C V2 2.4GHz ELRS PWM Receiver


Size


Package Includes

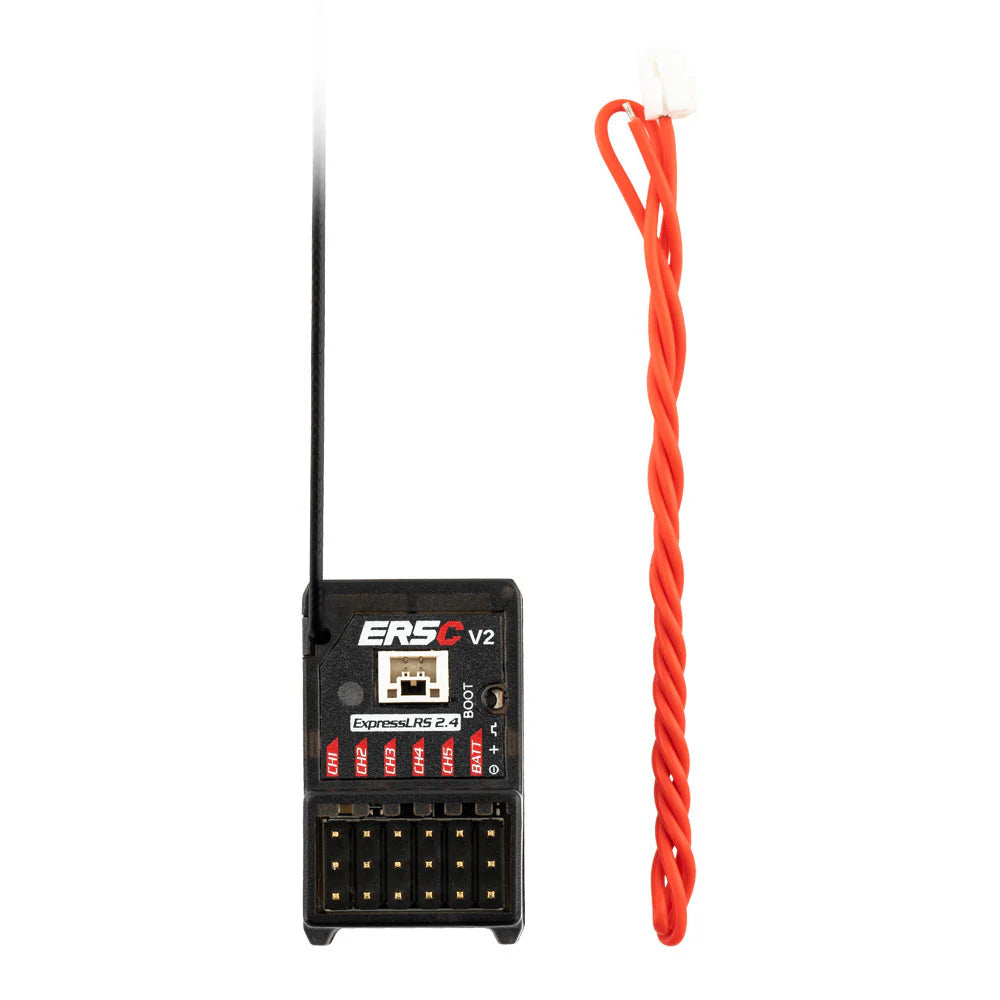

  • 1 * ER5C V2 2.4GHz ELRS PWM Receiver
  • 1 * Voltage telemetry wire
  • 1 * User Card
