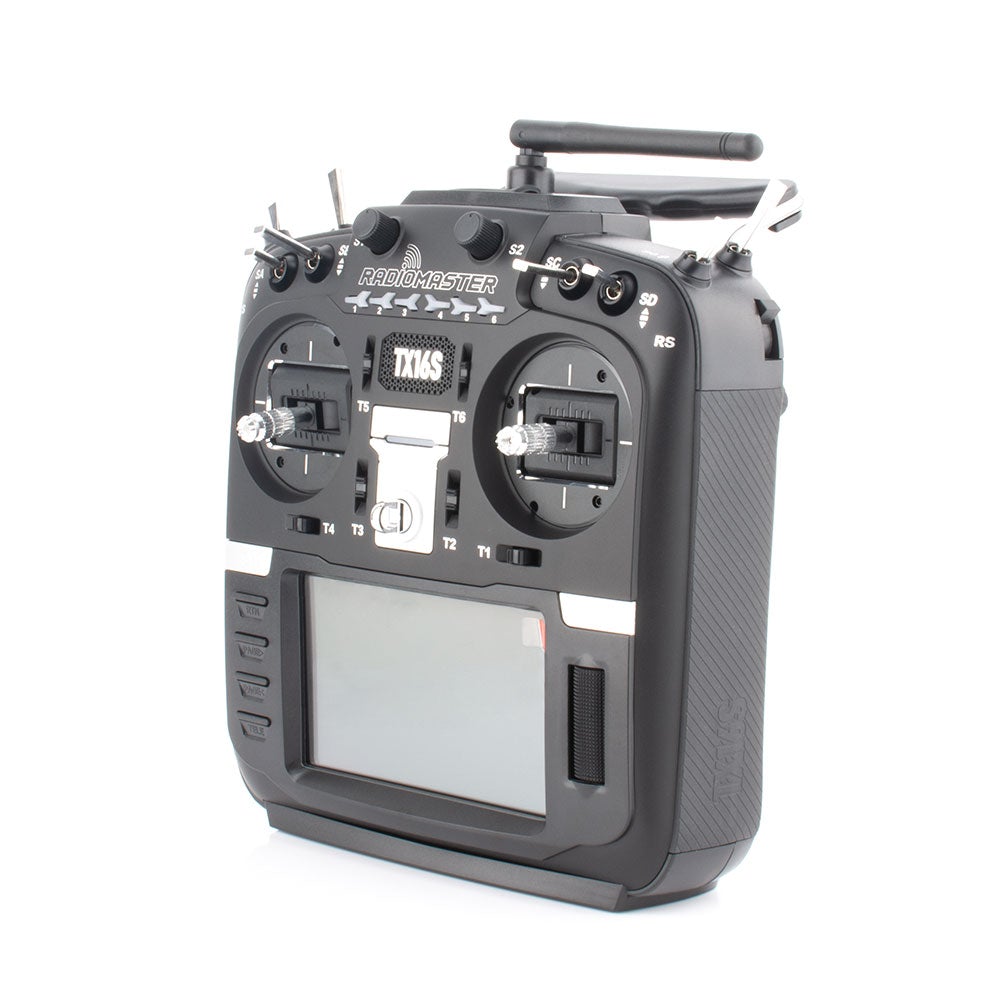

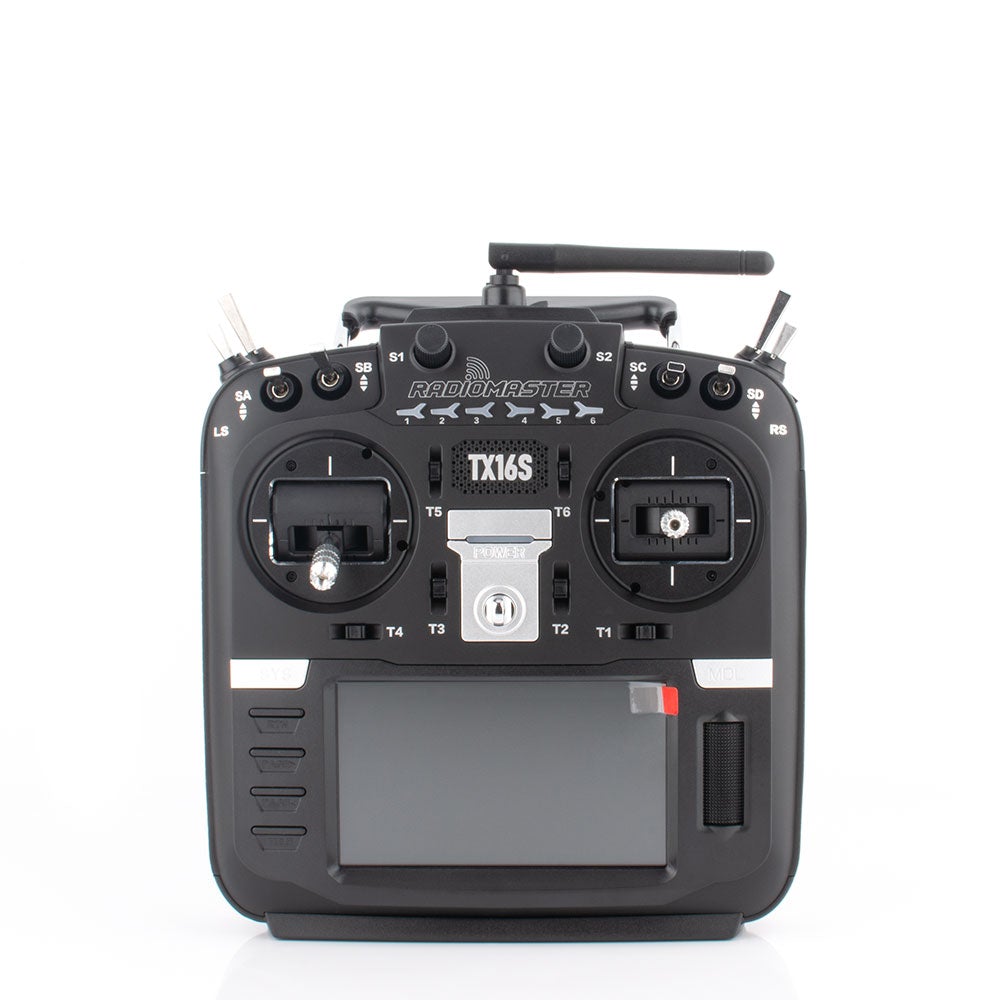

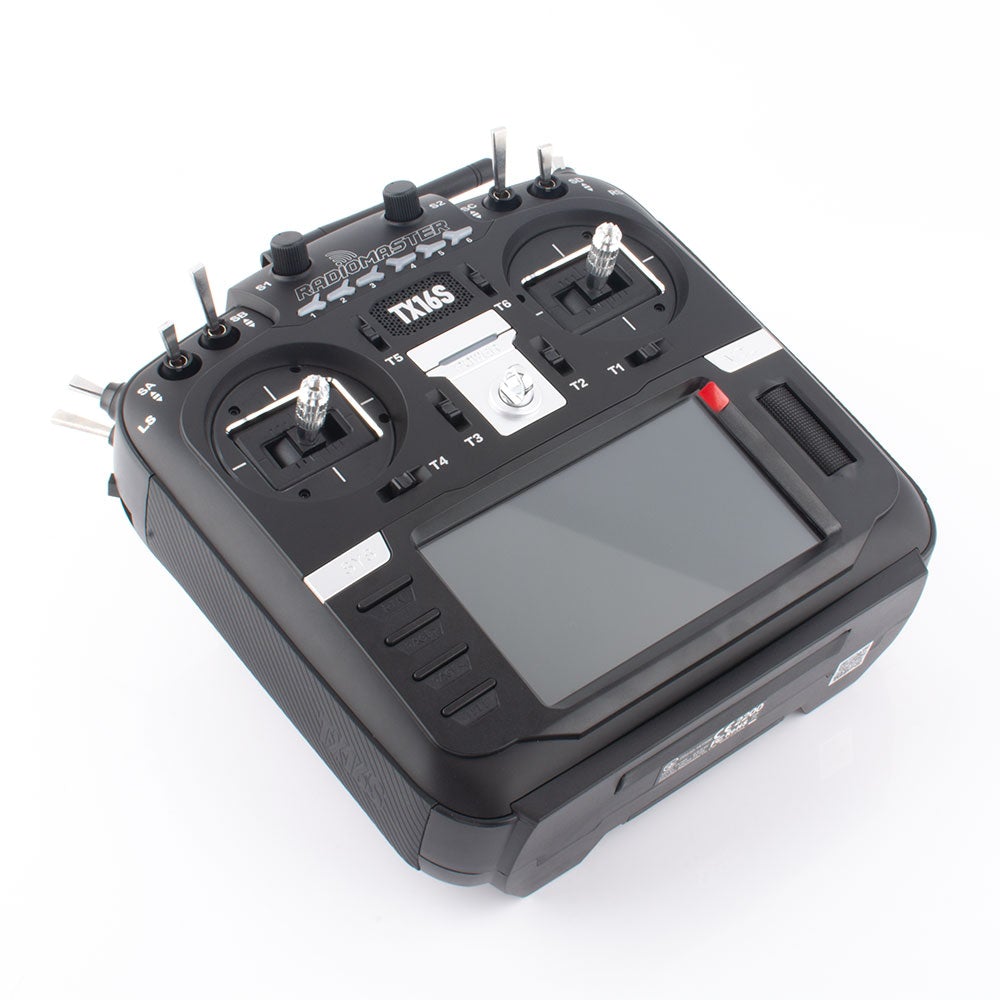

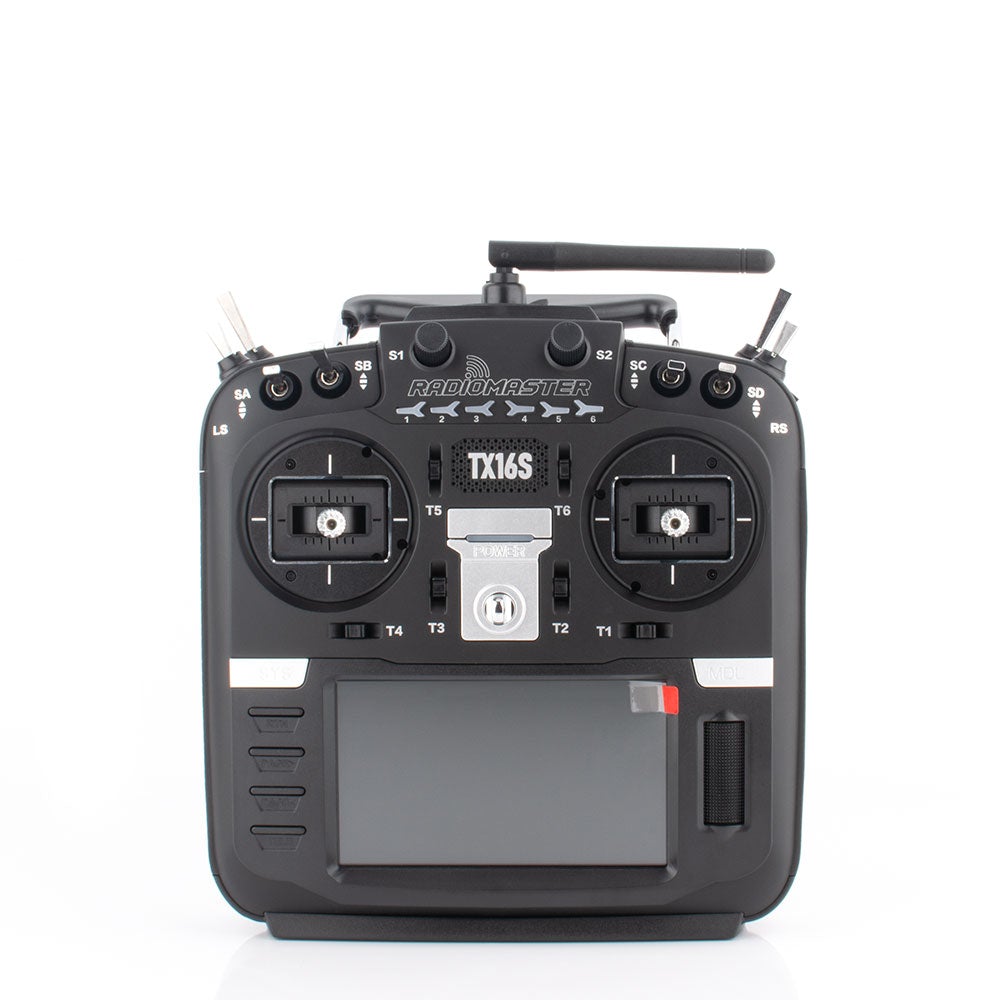

RADIOMASTER TX16S OPEN TX 16 CHANNEL RADIO TRANSMITTER HALL SENSOR GIMBALS

RADIO MASTERSKU: HP157-0001-A-M2
1 review

Mode: MODE 2
Price:
Sale price$299.95

Shipping calculated at checkout

Stock:
In stock (2 units), ready to be shipped

Description

RadioMaster set out to create the very best radio in its class without compromises. The TX16s has the best of everything we could fit into the radio today along with expandability and upgradeability for the future such as our Touch panel ready motherboard that will support future touch compatible version of OpenTX firmware and UART expansion slots. Our super smooth precision HALL gimbals with CNC facias offer refined looks and performance. Built-in USB-C charger, class-leading ergonomics, internal Multi-Module as standard, improved key layout and menu navigation, external SD port, improved sliders and more!

RadioMaster TX16S

Specification

  • Type: TX16S Hall Radio Controller
  • Size: 286.9*128.9*183.8mm
  • Weight: 750g (without battery) / 820g (with 2 x 18650 batteries installed)
  • Voltage: DC7-8.4V
  • Battery: 2 x 18650 (tray supplied) or 2S lipo (batteries not included)
  • Current: 350mah (NO CRSF)
  • Channel: 16ch
  • External Micro SD slot: Card Included
  • 2 x External UART Expansion Ports
  • Touch Panel installed (Requires OpenTX/EdgeTX 2.4 Update)

Features

  • STM32F429BIT6 MCU
  • Industrial grade 4.3 inch IPS 480*272 Screen with touch
  • Compatible with OpenTX
  • Wheel menu button
  • Full Size HALL sensor gimbals with CNC Aluminum Facia
  • Internal Multi-protocol 4-in--1 (4 Chip) RF System
  • Native Full Speed TBS Crossfire support (400K)
  • Supports Telemetry (Protocol and Receiver dependent)
  • Memory 16M (can be expanded by Micro SD card)
  • Voice function
  • Vibration reminder function
  • Improved JR module slot
  • 6-Flight Mode Buttons (Pixhawk, custom functions and more!)
  • Three-color LED status display
  • USB-C Charging port
  • USB-C Simulator and PC connection port.
  • External UART ports to expand the capabilities of your radio

Important please note

  • Batteries not included
  • Receivers not included
  • Charger not included (requires USB power port) do not use a high powered charger or risk damaging the charging circuit - using anything over 1A will void warranty
  • The antenna must be connected at all times, removal of antenna while powered on will void warranty.
  • For Mode 1, conversion has been performed in house hence slight extra cost.

    Please note: Batteries and Receivers are not included.

    Accessories Available

    Internal Multi-protocol RF

    The TX16s internal RF system features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module most of today’s prominent RF protocols (See RF Chip data below). The RadioMaster internal RF module will support firmware updates directly from the radios Operating system.

    RadioMaster TX16S

    OpenTX Supported

    RadioMaster has worked in collaboration with OpenTX to bring the TX16s into the market and will continue to work with OpenTX to provide support to the project and ensure the concepts of open standards are carried forward today and in the future.

    HALL Sense Gimbals

    The high-quality precision Hall Sensor gimbals with CNC Aluminium Facias provide the ultimate experience in this class of radio.

    RadioMaster TX16S

    4.3” IPS Color Display

    The TX16s features a bright and clear 4.3-inch IPS color display for easy and convenient model setup and operation with adjustable brightness to suit all conditions.

    * Touch Panel included with TX16S Hall and TX16S Hall MasterFire combo only. Touch functionality requires OpenTX 2.4 (coming soon). TX16S Standard version is Touch Panel ready and can be upgraded with optional touch panel sold separately.

    RadioMaster TX16S

    External Module Bay

    The TX16s natively supports Team Black Sheep MicroTX modules in CRSFmode with LUA scripts. Best of all the TX16s Internal 4-in-1 Multi-protocol module allows you to keep the MicroTX installed and switch between internal RF and Crossfire via software, no more module swapping.

    RadioMaster TX16S

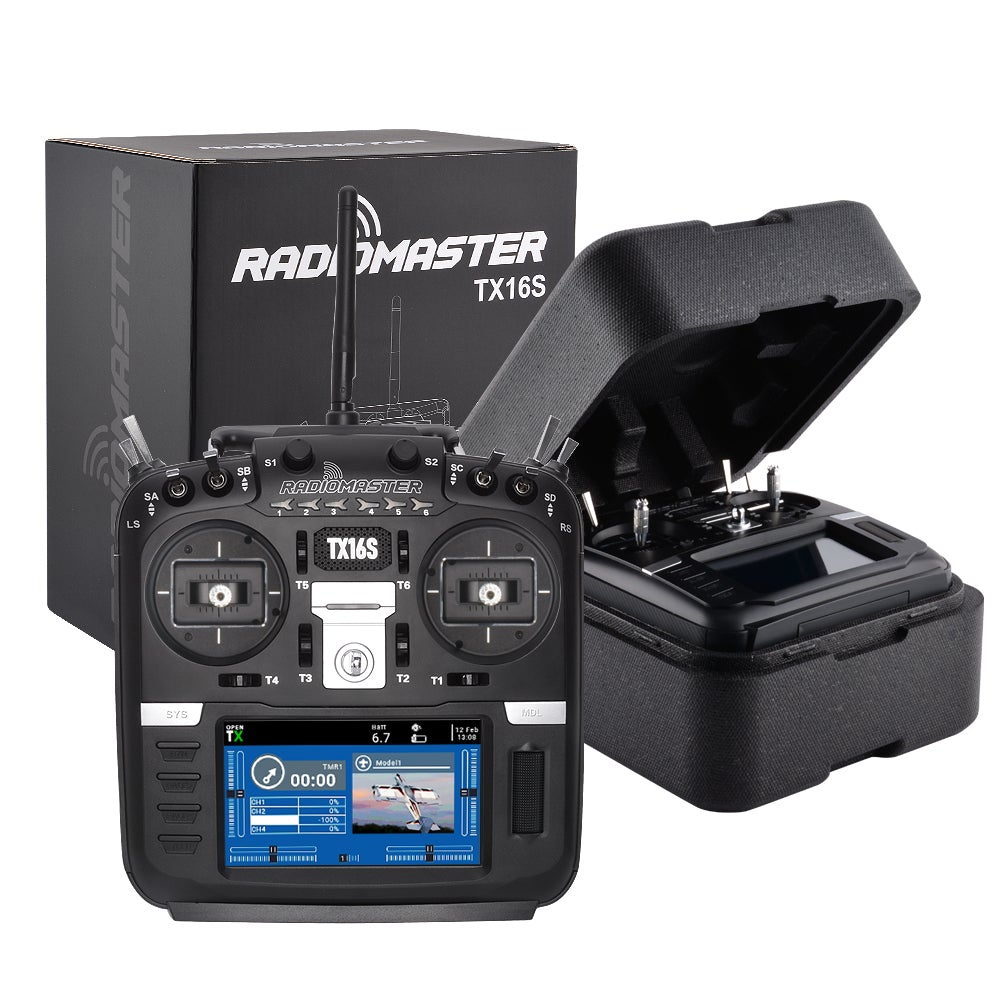

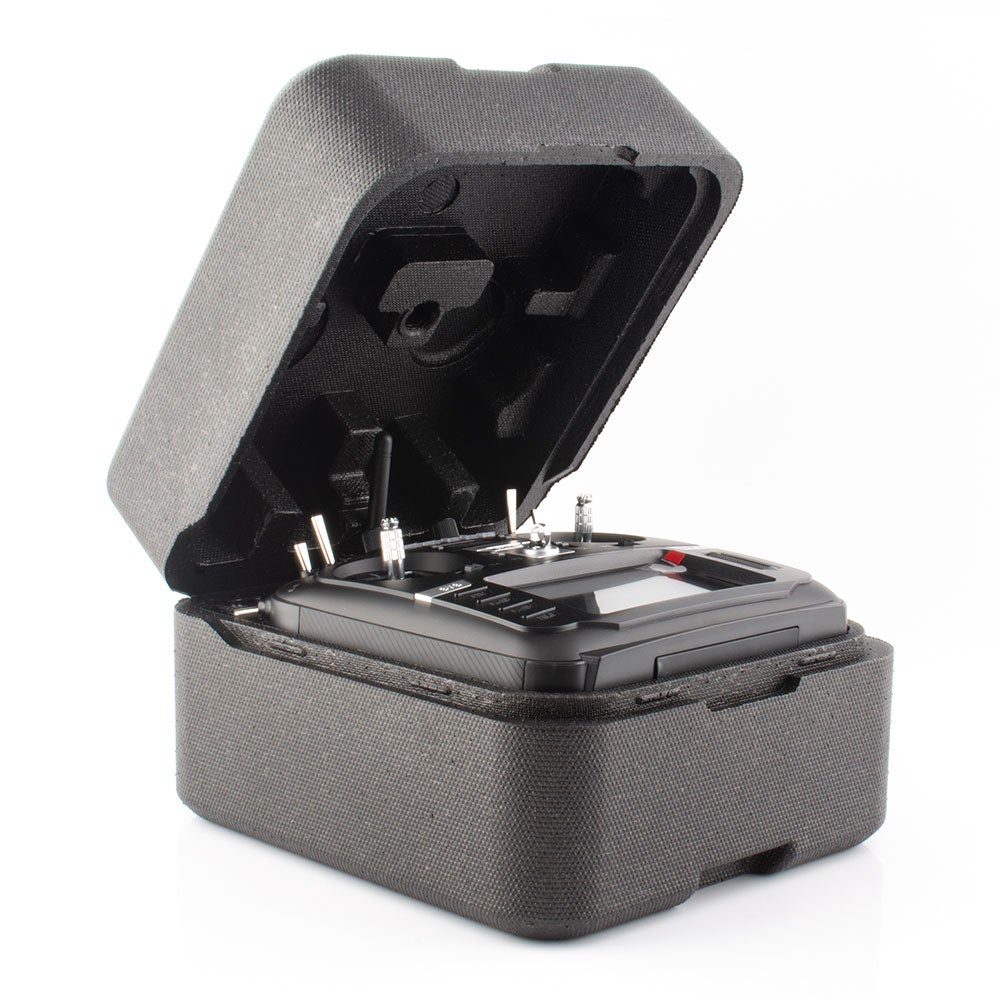

    High-Density Foam Case

    The included storage box is made from high-density shockproof EPP foam. Ideal for safe storage and transport of your TX16s.

    RadioMaster TX16S

    Convenient Charging

    The TX16s features built-in USB-C charging with a 2s Battery Management System to balance charge 7.4v Li-ion or Li-Poly batteries. Our built-in charger features over current protection and temperature sensors to ensure safe charging.

    RadioMaster TX16S

    Bigger is Better

    Extra-large battery compartment. Built-in USB-C charging for 2 * 4.2V Li-lon batteries or 2 cells li-poly battery.

    RadioMaster TX16S

    Anti-slip Rubber Grips

    Balanced ergonomics provide the ultimate grip and comfort for hours of use.

    RadioMaster TX16S

    Easy Firmware Updates

    RadioMaster TX16S Firmware

    Radio Overview

    RadioMaster TX16S Hall Overview

    RadioMaster TX16S Gimbal Overview

    Radio Size

    RadioMaster TX16S

    Accessories



    Package Includes

    • 1 * TX16S Transmitter
    • 1 * 18650 Tray
    • 1 * USB-C Cable
