SpeedyBee F405 WING MINI Fixed Wing Flight Controller

SpeedyBeeSKU: SB-F405WING-MINI

Price:
Sale price$67.95

Shipping calculated at checkout

Stock:
Contact Us

Description




Specifications

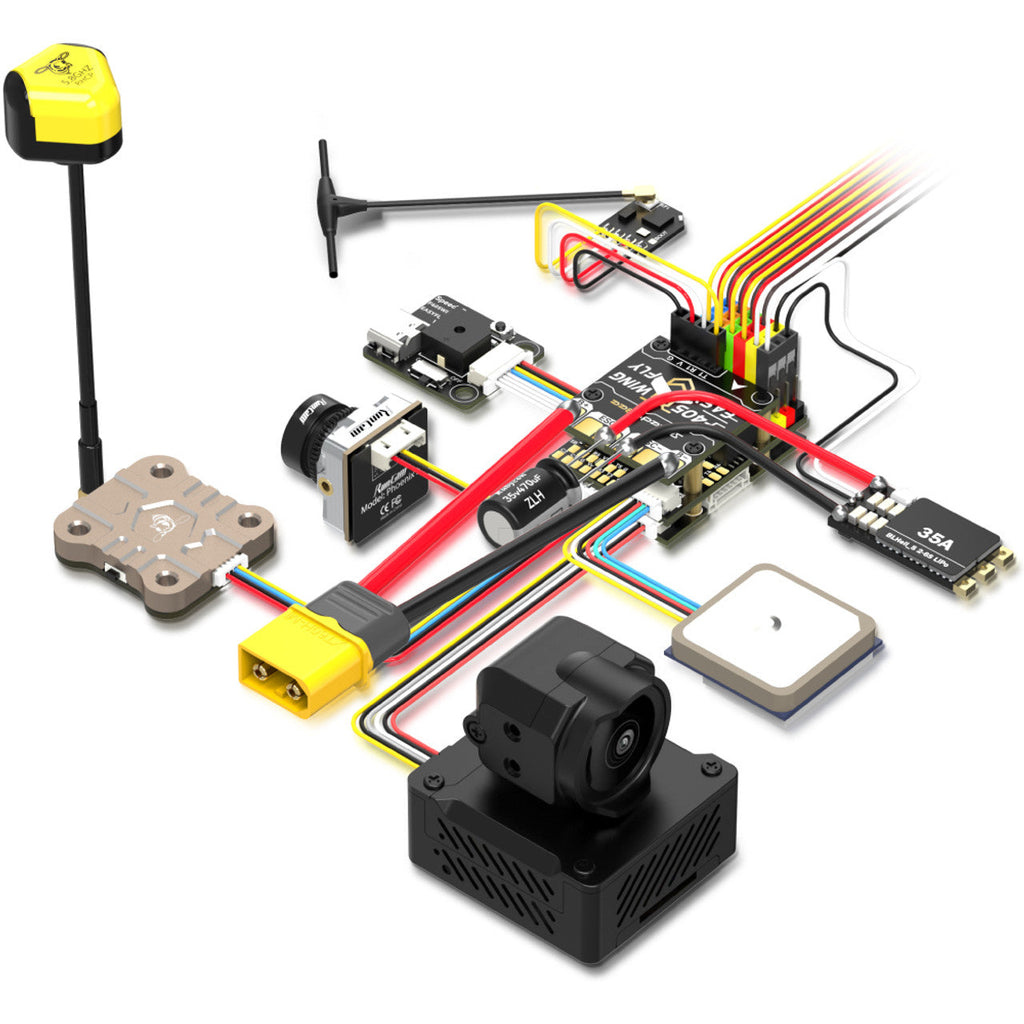

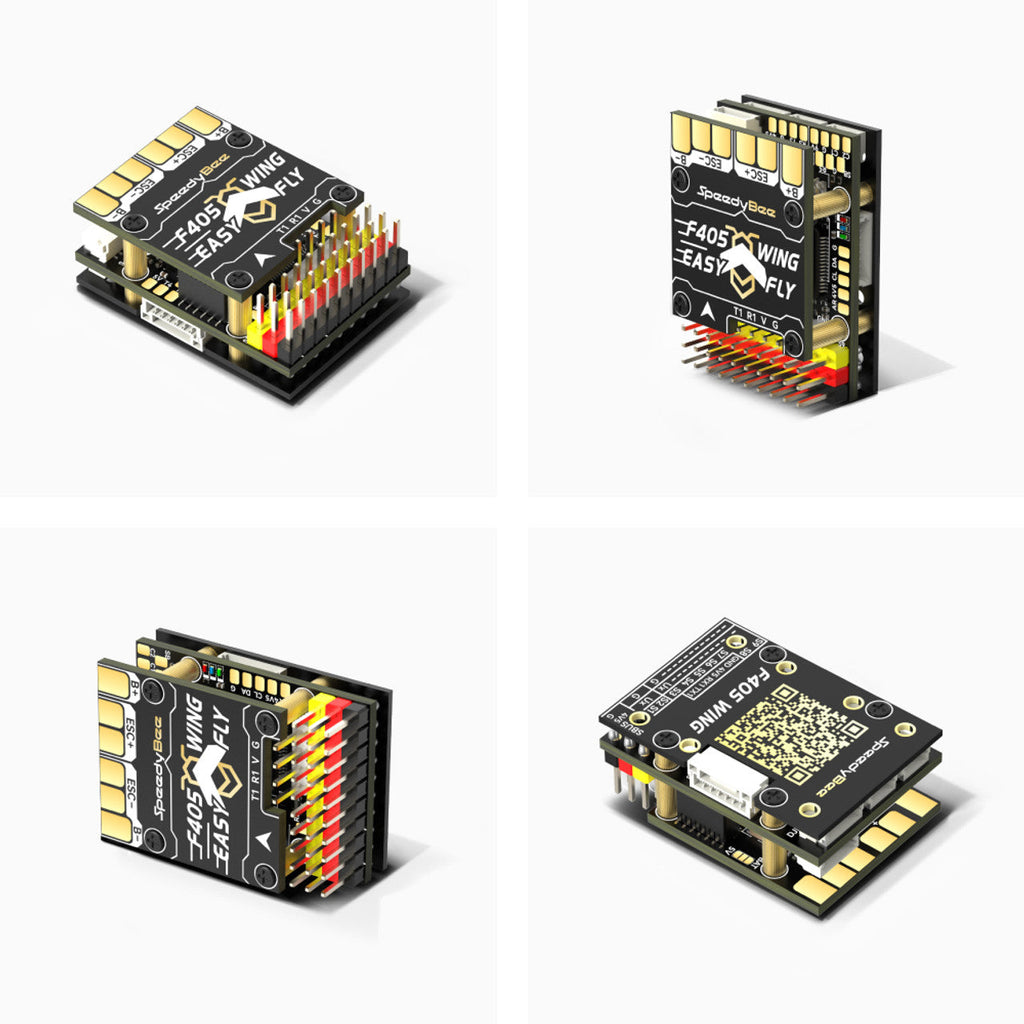

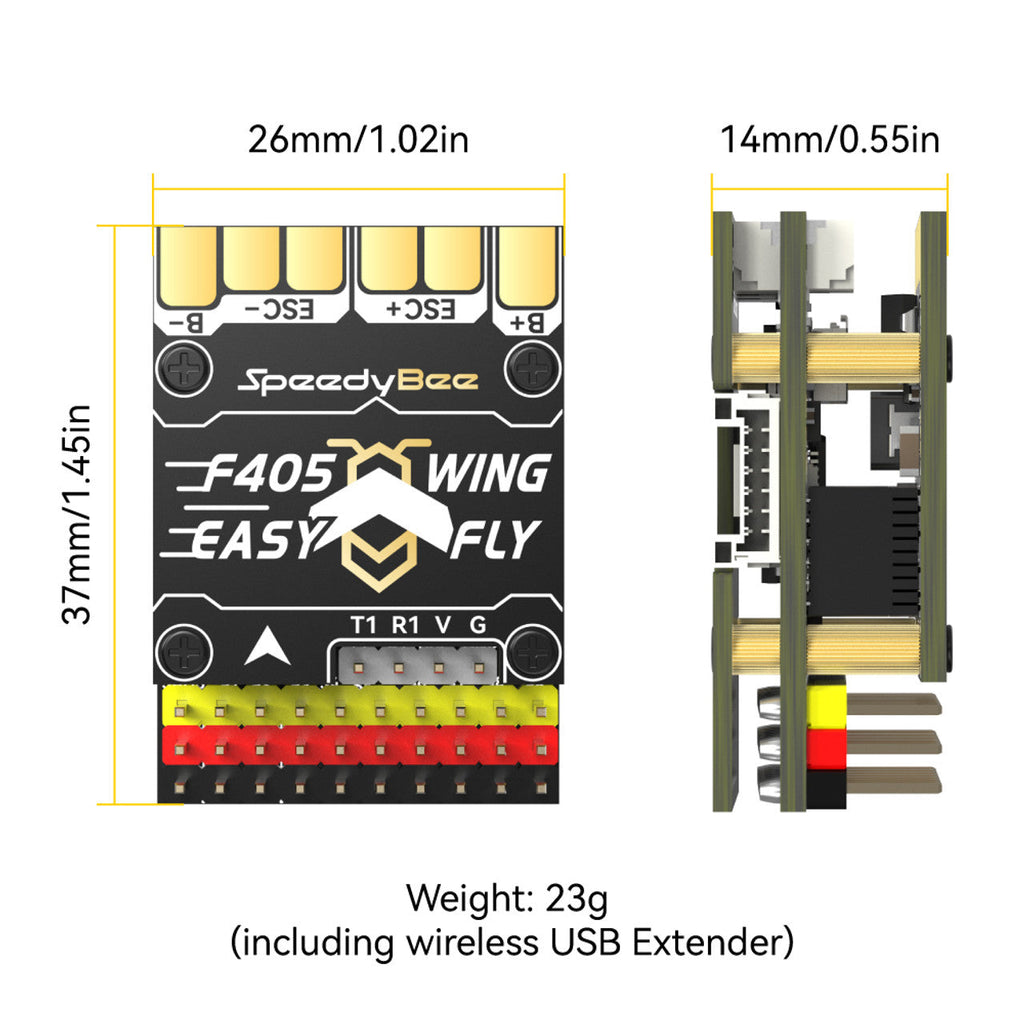

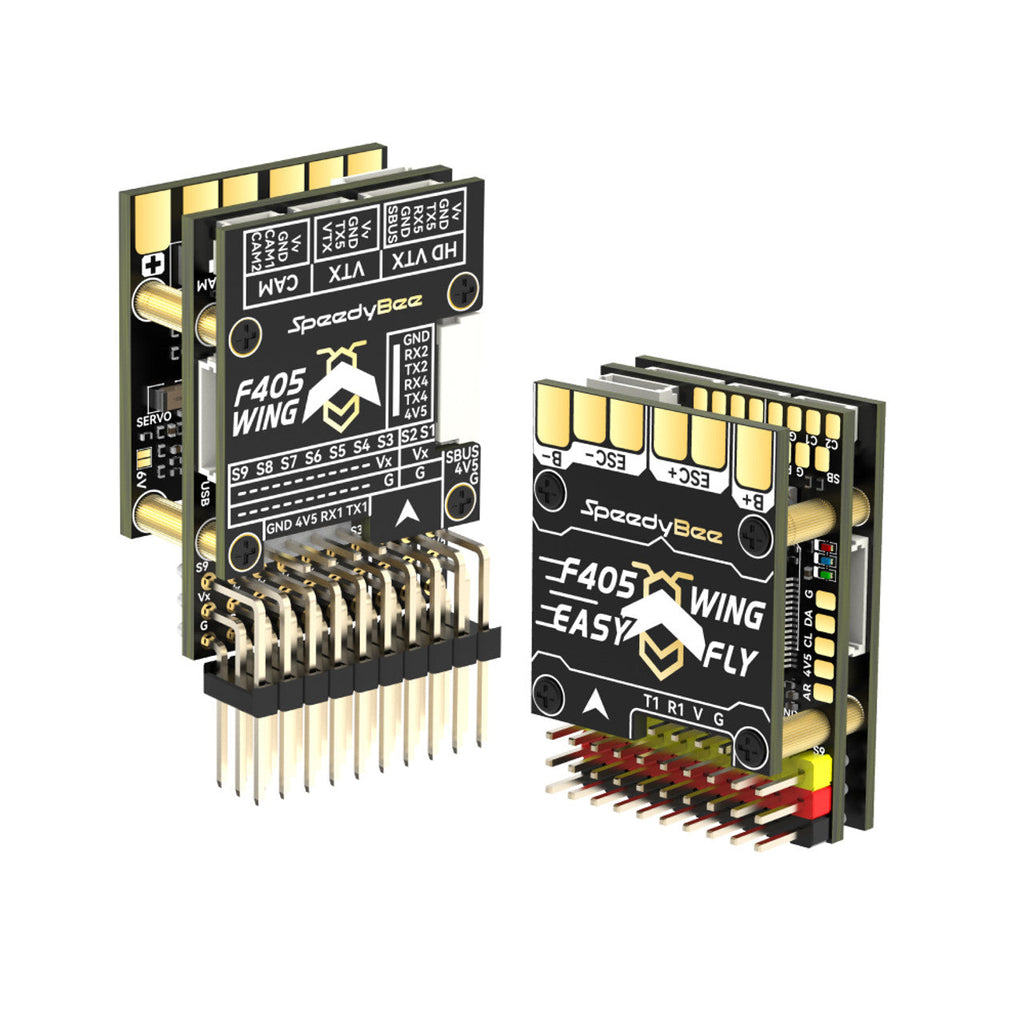

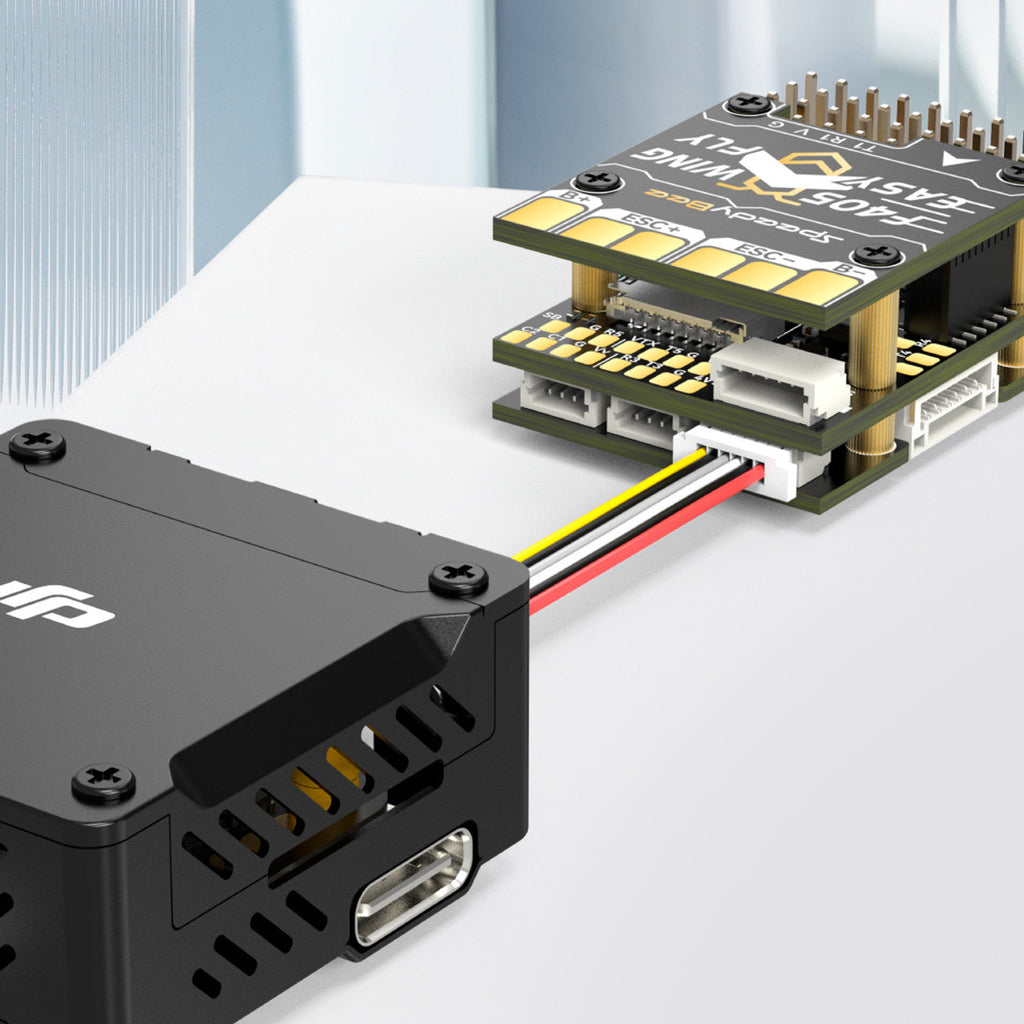

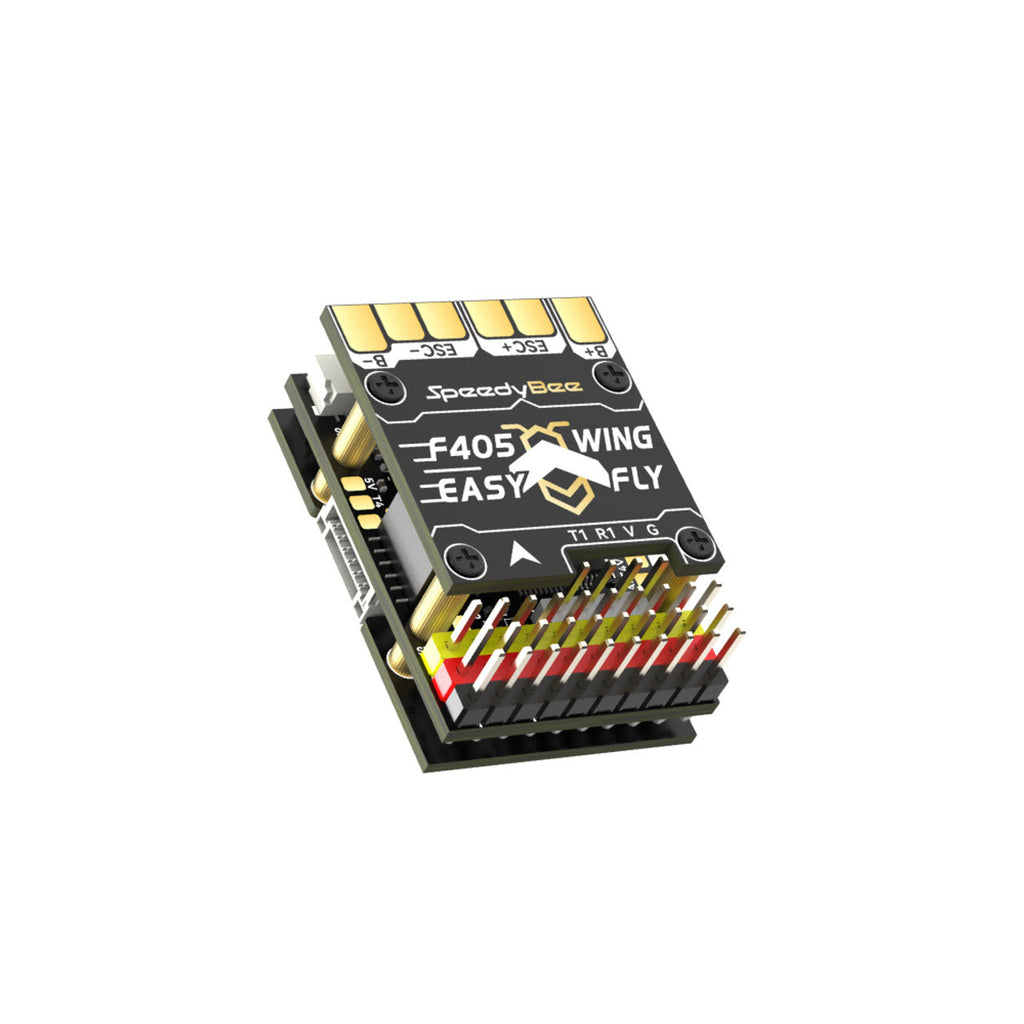

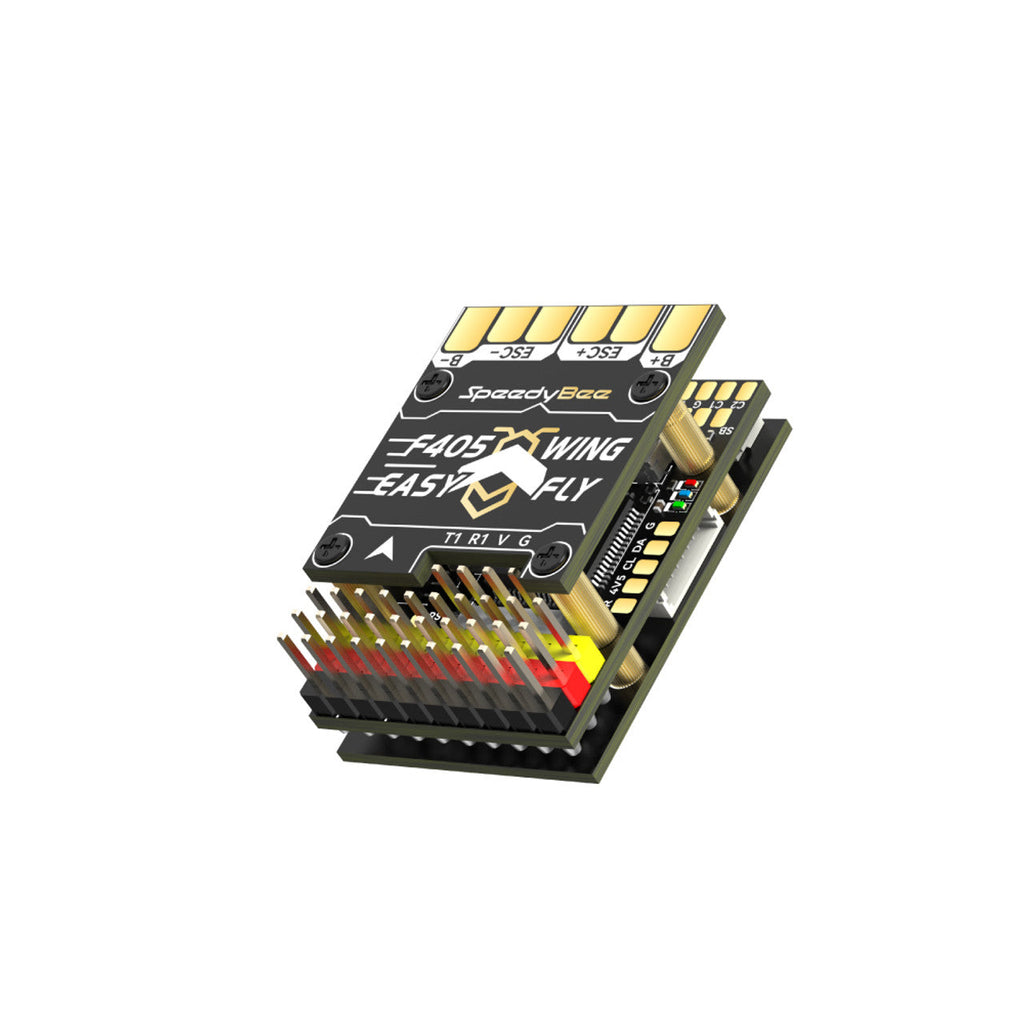

SpeedyBee F405 WING MINI FC board
  • MCU STM32F405, 168MHz, 1MB Flash
  • IMU(Gyro&Accelerometer) ICM-42688-P
  • Barometer SPL006-001
  • OSD Chip AT7456E
  • Blackbox MicroSD Card Slot
  • UART 6 sets (USART1, USART2, USART3, UART4, UART5,
  • UART6 - Dedicated for Wireless board Telemetry connection)
  • I2C 1x Used for magnetometer, digital airspeed sensor
  • ADC 4x (VBAT, Current, Analog RSSI, Analog AirSpeed)
  • PWM 12x (9x pin headers + 2x solder pads + 1x "LED" pad)
  • ELRS/CRSF Receiver Supported, connected to UART1
  • SBUS Built-in inverter for SBUS input (UART2-RX)
  • LED 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red)
  • Analog RSSI Supported, Named as "RS"
  • Dual Analog Camera Switching Default to Camera1 Video Input (C1). Switch between C1 and C2 using ArduPilot Relay or INAV Modes/USER.
  • Both cameras should have the same video format, either PAL or NTSC.
  • Supported FC Firmware INAV: SpeedyBeeF405WING (default)
  • ArduPilot: SpeedyBeeF405WING
  • Weight 5.6g


SpeedyBee F405 WING MINI PDB board
  • Input voltage range 7~26V (2~6S LiPo)
  • Battery Voltage Sensor Connect to FC board VBAT, 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
  • Battery Current Sensor 80A continuous, 150A peak Connect to FC board Current (Scale 195 in INAV, 50 A/V in ArduPilot)
  • TVS Protective diode Yes
  • FC BEC output Output 5.2V +/- 0.1V DC Continuous current 2 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed Sensor, Telemetry module
  • VTX & Camera power supply The VTX power interface Vv offers two power supply options: direct battery voltage or integrated BEC 5V (sharing the 5V4A Servo BEC voltage)
  • By default, it is set to battery voltage
  • (Ensure the VTX and camera input voltage range is compatible)
  • Switching to 5V power supply is possible via pad jumper (using Servo BEC output)
  • (If using this method, ensure the current requirements for both servo and VTX are sufficient)
  • Servo BEC output Output 5V +/- 0.1V DC Continuous current 4 Amps, 5A Peak Voltage adjustable, 5V Default, 6V via jumper Designed for Servos.
  • Weight 5.5g

SpeedyBee F405 WING MINI Wireless USB Extender
  • Wireless Configuration (long press BOOT button for 6 seconds to switch modes)
  • INAV:Please make sure the MSP switch on UART 6 is turned on and set to a baud rate of 115200 ArduPilot:Please make sure the Serial 6 is set to baud rate 115200 and protocol Mavlink2 BLE mode, connect to Speedybee APP
  • Wi-Fi (AP)mode, able to connect to Speedybee APP, QGroundControl APP, MissionPlanner, etc. WiFi: Speedybee eFLY-WIFI Password: 88888888
  • Wi-Fi (STA)mode, able to connect to QGroundControl APP, MissionPlanner, etc.
  • Step 1: turn on Personal Hotspot;
  • Step 2: Set hotspot, locate NAME/Device Name/Hotspot name/etc.
  • Step 3: change the current name to eFLY and the password is, 88888888
  • Wireless off mode
  • USB Port Type Type-C
  • Buzzer 5V Active Buzzer
  • Weight 3.2g
