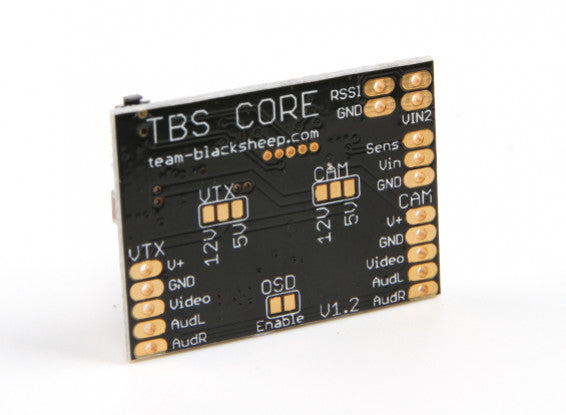

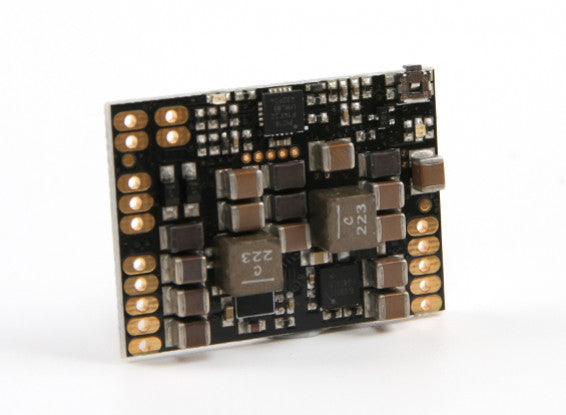

The TBS CORE is a development of the revolutionary TBS Power Supply Unit.
It supplies a selectable 5V or 12V to video transmitter and camera regardless of input voltage (2S to 10S). The TBS CORE can supply video transmitters with up to 1W (some cooling required at 1W) of emitted power (EIRP) and a standard FPV camera.
The CORE also features a built in On Screen Display (OSD,) simplifying installation even more for maximum reliability.
The TBS CORE sits at the heart of your FPV system.
Installation is simply done by soldering the CORE between your camera and video transmitter using the supplied cable. The TBS CORE will provide a constant voltage for both camera and A/V transmitter from your flight battery.
Secondary power input from the suggested 2S 300mAh LiPoly battery makes sure you have video signal for up to 30 minutes even if your main battery is completely flat, so you can always locate and recover your model.
• Double-redundant A/V backup
• OSD with optional current sensor, RSSI and input battery voltage display (up to 6S)
• 1x Video, 2 x Audio pass-through
• Reverse polarity protection
• Extremely low ripple and low RF noise
• 1W VTX (requires minor airflow)
Input: 2 x 6.5~42V (2~10S LiPoly)
Output: 2A @ 5V OR 600mA @ 12V
Max output to A/V: 1W
Dimensions: 34 x 25mm
