Description

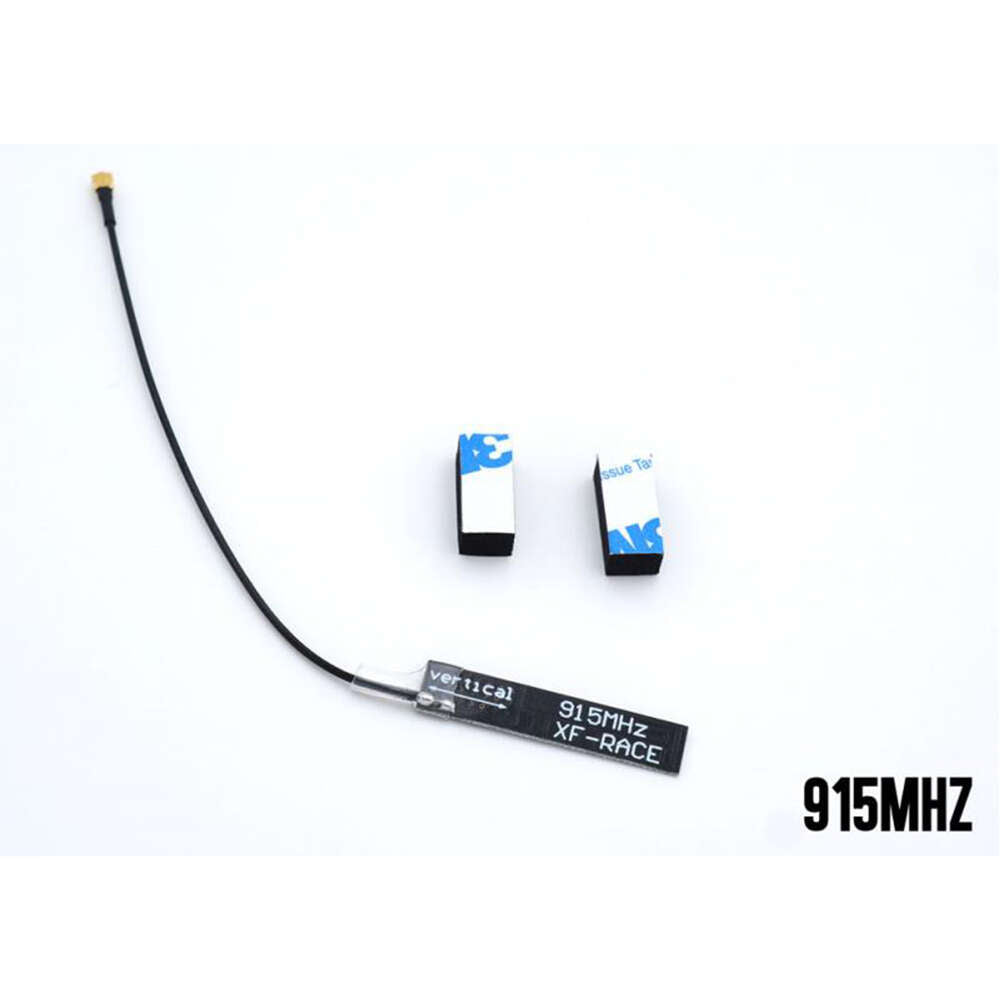

The Crossfire RACE antenna is a new design for miniature setups or builds where weight is more critical than range. It will give you range about as good as a regular "Long Range 2.4GHz system", but maintaining all of the low latency properties and other conveniences that you have come to expect from the Crossfire.
We suggest to mount the antenna vertically using the foam in the designated location to provide spacing to any conductive materials in order to allow this antenna to provide optimal performance.
TECHNICAL SPECIFICATIONS:
We suggest to mount the antenna vertically using the foam in the designated location to provide spacing to any conductive materials in order to allow this antenna to provide optimal performance.
TECHNICAL SPECIFICATIONS:
- Center Frequency 915 MHz
- VSWR <2
- Gain 2dBi
- Length 34 mm
- Width 7 mm
- Height 0.8 mm
- Antenna Connector Type u.FL
- Weight 0.8g (without foam)
