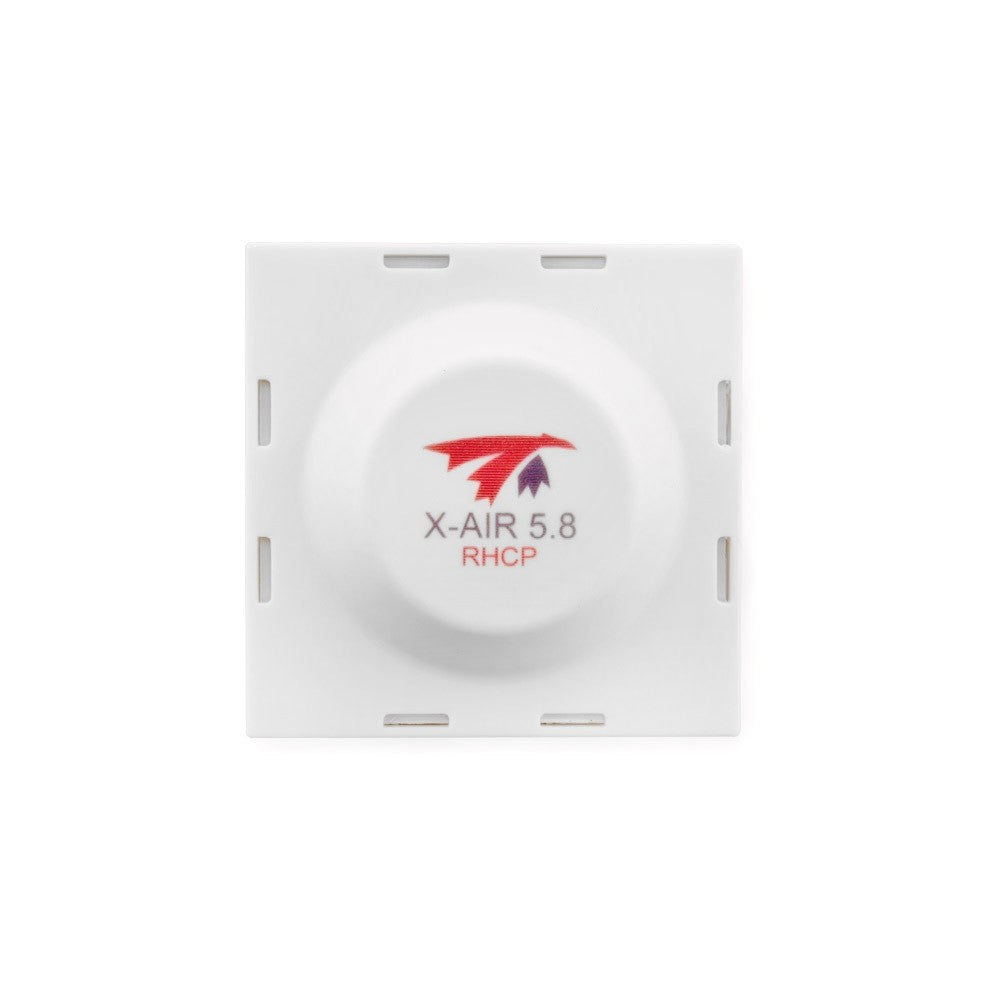

TrueRC X-AIR 5.8ghz Cross-Hair Antennaxair-58-rh
TrueRC's most popular antenna. The X-AIR 5.8 is the next generation crosshair antenna. Featuring state of the art PCB material, there’s no compromise in beam width or gain. Wide coverage and high axial ratio make it perfect for proximity flying, by keeping signal behind bushes and trees. Mount it right on your goggles whether they have top or side SMA connection, the included low-loss semi-flexible extension have them covered.
- Frequency: 5.8GHz
- Gain: 10 dBic
- Axial Ratio: 1 (perfect)

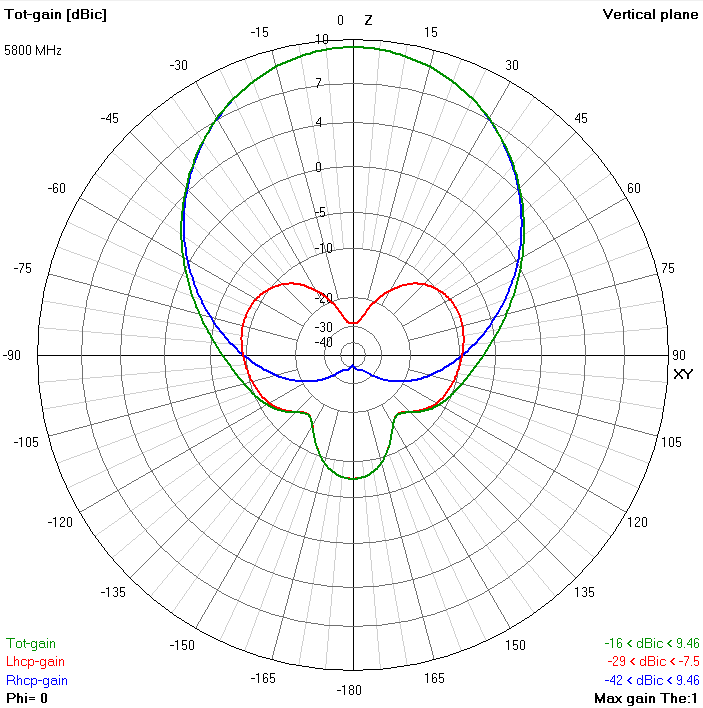

- Beam-width*: 120deg
- Beam-width @-3dB**: 68deg.
- Connector: SMA male
- Dimension: 2.1″x2.1″x0.6″
- Polarisation: RHCP or LHCP - select from drop down before adding to cart
- Included 5cm low-loss semi-flexible extension.
- *Coverage where reception is at least equivalent to an omni.
- **Coverage where at least 70% of the max range is obtained.
